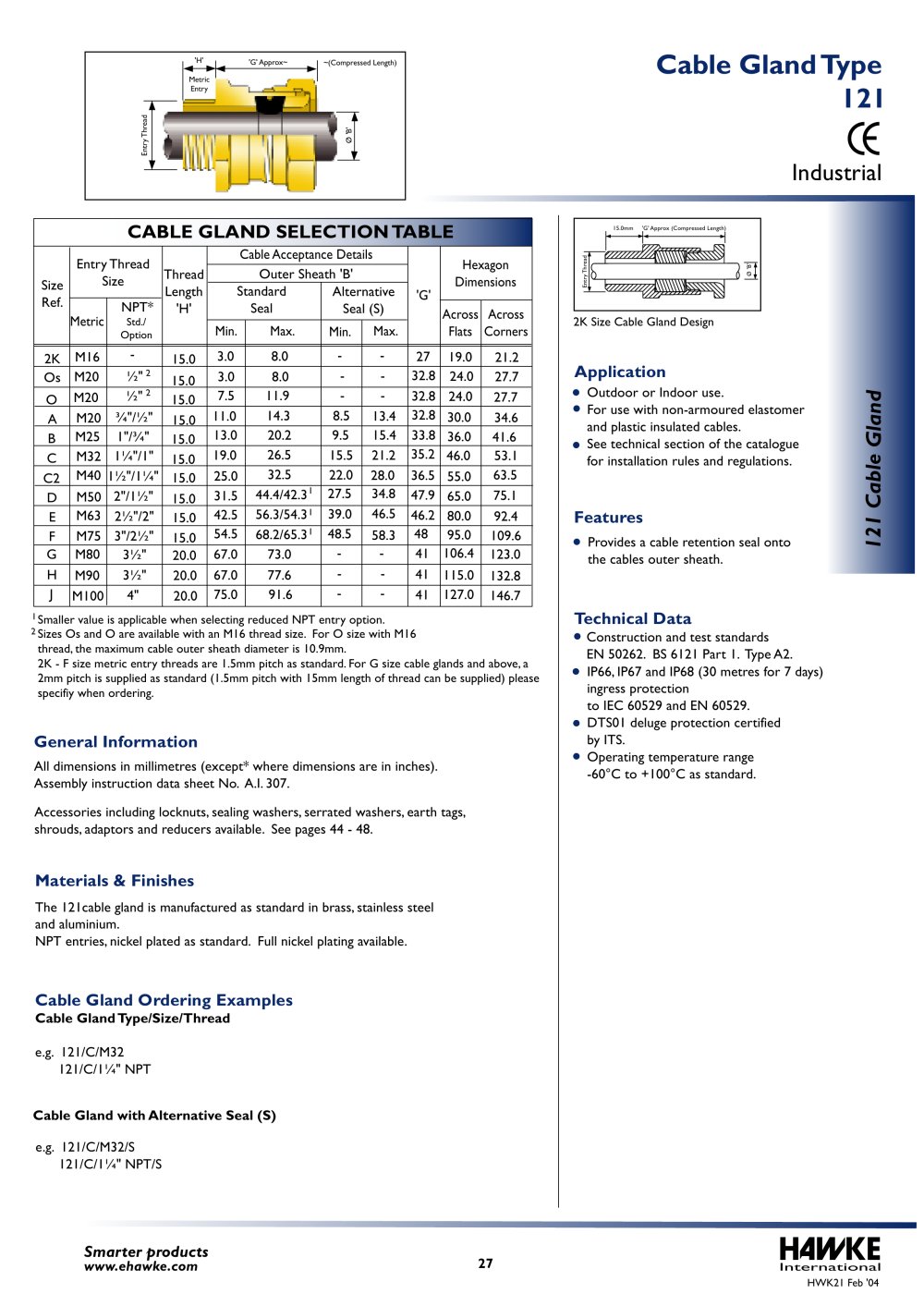

Cable Gland Type
121
Ci
Industrial
CABLE GLAND SELECTION TABLE
Size Ref.
Entry Thread Size
Thread Length 'H'
Cable Acceptance Details
'G'
Hexagon Dimensions
Outer Sheath 'B'
Standard Seal
Alternative Seal (S)
Metric
NPT*
Std./ Option
Across Flats
Across Corners
Min.
Max.
Min.
Max.
2K
MI6
-
15.0
3.0
8.0
-
-
27
19.0
21.2
Os
M20
'A"1
15.0
3.0
8.0
-
-
32.8
24.0
27.7
O
M20
/2"2
15.0
7.5
1 1.9
-
-
32.8
24.0
27.7
A
M20
Va" l'A"
15.0
1 1.0
14.3
8.5
13.4
32.8
30.0
34.6
M25
17%"
15.0
13.0
20.2
9.5
15.4
33.8
36.0
41.6
c
M32
l'/VVI"
15.0
19.0
26.5
15.5
21.2
35.2
46.0
53.1
C2
M40
\<A"I\Va"
15.0
25.0
32.5
22.0
28.0
36.5
55.0
63.5
D
M50
27I/2"
15.0
31.5
44.4/42.31
27.5
34.8
47.9
65.0
75.1
E
M63
TA" IT
15.0
42.5
56.3/54.31
39.0
46.5
46.2
80.0
92.4
F
M75
372/2"
15.0
54.5
68.2/65.31
48.5
58.3
48
95.0
109.6
G
M80
3/2"
20.0
67.0
73.0
-
-
41
106.4
123.0
H
M90
3/2"
20.0
67.0
77.6
-
-
41
1 15.0
132.8
J
MIOO
4"
20.0
75.0
91.6
-
-
41
127.0
146.7
2K Size Cable Gland Design
Application
• Outdoor or Indoor use.
• For use with non-armoured elastomer and plastic insulated cables.
• See technical section of the catalogue for installation rules and regulations.
C
o
5
■Si 3 o U
Features
• Provides a cable retention seal onto the cables outer sheath.
Technical Data
• Construction and test standards EN 50262. BS 6121 Part I. Type A2.
• IP66, IP67 and IP68 (30 metres for 7 days) ingress protection
to IEC 60529 and EN 60529.
• DTS0I deluge protection certified by ITS.
• Operating temperature range -60°C to +100°C as standard.
1 Smaller value is applicable when selecting reduced NPT entry option.
2 Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9mm.
2K - F size metric entry threads are 1.5mm pitch as standard. For G size cable glands and above, a 2mm pitch is supplied as standard (1.5mm pitch with 15mm length of thread can be supplied) please specifiy when ordering.
General Information
All dimensions in millimetres (except* where dimensions are in inches). Assembly instruction data sheet No. A.I. 307.
Accessories including locknuts, sealing washers, serrated washers, earth tags, shrouds, adaptors and reducers available. See pages 44 - 48.
Materials & Finishes
The 121 cable gland is manufactured as standard in brass, stainless steel and aluminium.
NPT entries, nickel plated as standard. Full nickel plating available.
Cable Gland Ordering Examples Cable Gland Type/Size/Thread
e.g. I2I/C/M32 12l/C/1/t" NPT
Cable Gland with Alternative Seal (S)
e.g. I2I/C/M32/S 12l/C/1/t" NPT/S
H4WKE
I international
Smarter products www.ehawke.com
27
HWK21 Feb '04
