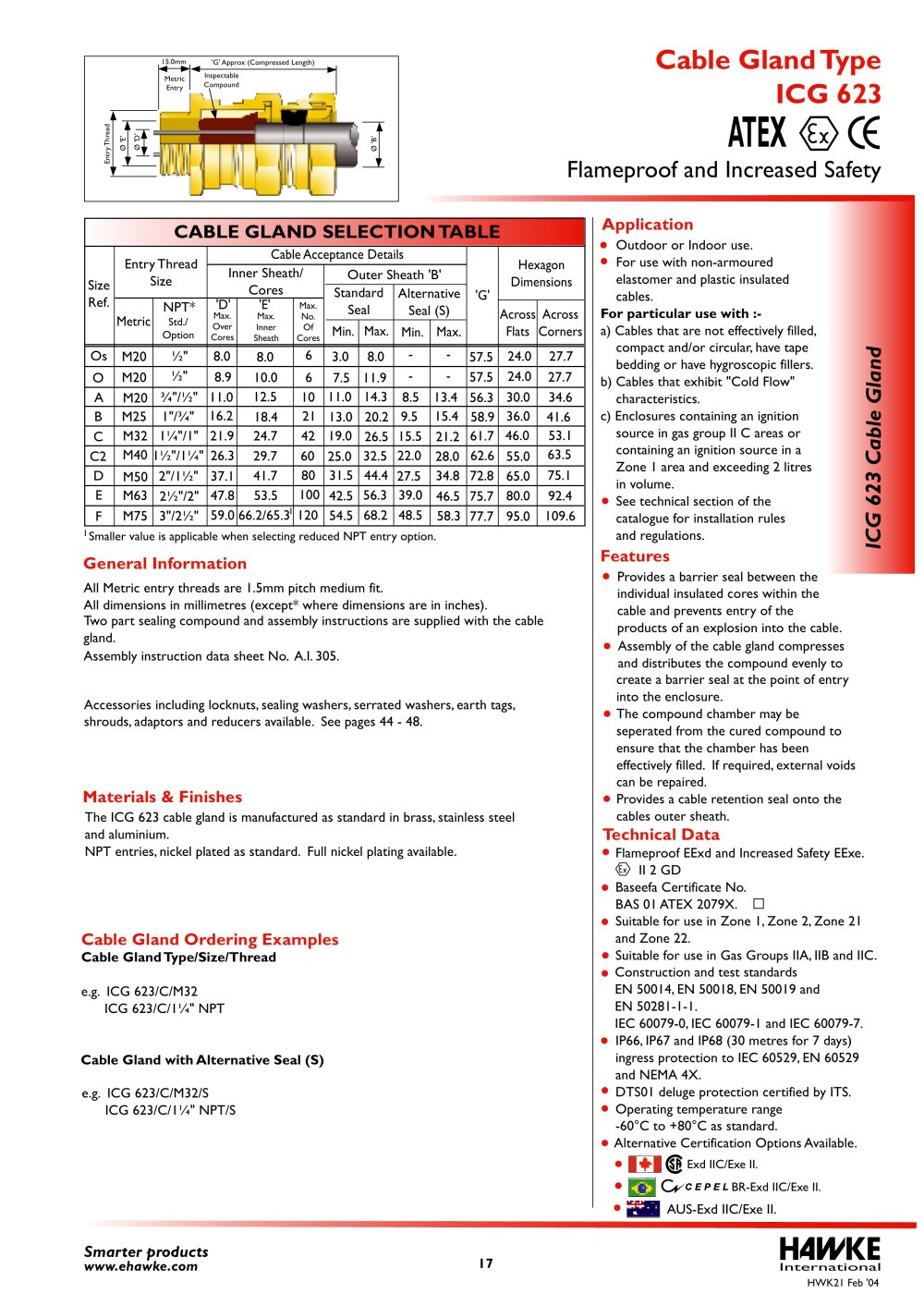

Cable Gland Type ICG 623

ATEX ® <£

Flameproof and Increased Safety

Application

• Outdoor or Indoor use.

• For use with non-armoured elastomer and plastic insulated cables.

For particular use with :-

a) Cables that are not effectively filled,

CABLE GLAND SELECTION TABLE


Size Ref.	Entry Thread Size		Cable Acceptance Details							'G'	Hexagon Dimensions
			Inner Sheath/ Cores			Outer Sheath 'B'
			Inner Sheath/ Cores			Standard Seal		Alternative Seal (S)
	Metric	NPT* Std./ Option	'D' Max. Over Cores	'E' Max. Inner Sheath	Max. No. Of Cores	Standard Seal		Alternative Seal (S)			Across Flats	Across Corners
	Metric	NPT* Std./ Option	'D' Max. Over Cores	'E' Max. Inner Sheath	Max. No. Of Cores	Min.	Max.	Min.	Max.		Across Flats	Across Corners
Os	M20	/2"	8.0	8.0	6	3.0	8.0	-	-	57.5	24.0	27.7
O	M20	/2"	8.9	10.0	6	7.5	1 1.9	-	-	57.5	24.0	27.7
A	M20	Va"PA"	1 1.0	12.5	10	1 1.0	14.3	8.5	13.4	56.3	30.0	34.6
co	M25	1 "PA"	16.2	18.4	21	13.0	20.2	9.5	15.4	58.9	36.0	41.6
C	M32	\'A"I\"	21.9	24.7	42	19.0	26.5	15.5	21.2	61.7	46.0	53.1
C2	M40	\'A"I\'A"	26.3	29.7	60	25.0	32.5	22.0	28.0	62.6	55.0	63.5
D	M50	27I/2"	37.1	41.7	80	31.5	44.4	27.5	34.8	72.8	65.0	75.1
E	M63	TA" 12"	47.8	53.5	100	42.5	56.3	39.0	46.5	75.7	80.0	92.4
F	M75	2" ITA"	59.0	66.2/65.3'	120	54.5	68.2	48.5	58.3	77.7	95.0	109.6

compact and/or circular, have tape bedding or have hygroscopic fillers.

b) Cables that exhibit "Cold Flow" characteristics.

c) Enclosures containing an ignition source in gas group II C areas or containing an ignition source in a Zone I area and exceeding 2 litres in volume.

• See technical section of the catalogue for installation rules and regulations.

¹ Smaller value is applicable when selecting reduced NPT entry option.

General Information

All Metric entry threads are 1.5mm pitch medium fit.

All dimensions in millimetres (except* where dimensions are in inches).

Two part sealing compound and assembly instructions are supplied with the cable

gland.

Assembly instruction data sheet No. A.I. 305.

Features

• Provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable.

• Assembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure.

• The compound chamber may be seperated from the cured compound to ensure that the chamber has been effectively filled. If required, external voids can be repaired.

• Provides a cable retention seal onto the cables outer sheath.

Technical Data

• Flameproof EExd and Increased Safety EExe. <g> 112 GD

• Baseefa Certificate No. BAS0IATEX2079X. □

• Suitable for use in Zone I,Zone 2,Zone 21 and Zone 22.

• Suitable for use in Gas Groups 11 A, MB and IIC

• Construction and test standards EN 50014, EN 50018, EN 50019 and EN 50281-1-1.

IEC 60079-0, IEC 60079-1 and IEC 60079-7. IP66, IP67 and IP68 (30 metres for 7 days) ingress protection to IEC 60529, EN 60529 and NEMA 4X.

• DTS0I deluge protection certified by ITS.

• Operating temperature range -60°C to +80°C as standard.

• Alternative Certification Options Available.

* I+1(0 k"¹ "C/Exe II.

* Efi3 C4/CEPEL BR-Exd IIC/Exe II.

* S£S AUS-Exd IIC/Exe II.

Accessories including locknuts, sealing washers, serrated washers, earth tags, shrouds, adaptors and reducers available. See pages 44 - 48.

Materials & Finishes

The ICG 623 cable gland is manufactured as standard in brass, stainless steel and aluminium.

NPT entries, nickel plated as standard. Full nickel plating available.

Cable Gland Ordering Examples Cable Gland Type/Size/Thread

e.g. ICG 623/C/M32 ICG 623/C/l¹/." NPT

Cable Gland with Alternative Seal (S)

e.g. ICG 623/C/M32/S ICG 623/C/l'/V'NPT/S

H4WKE

I nternational

Smarter products www.ehawke.com

HWK21 Feb '04
