TABLE OF CONTENTS

Introduction to Haskel 2

What is a Haskel

Air Pressure Amplifier 3

Using Performance Curves 4

Sizing Air Amplifiers 5

Operation Guidelines 6

Air Amplifier Selection Chart 7

HAA-31 Series Performance,

Controls & Options 8

HAA-31 Series Dimensional Data 9

4AAD-2 Series Performance,

Controls & Options 10

4AAD-2 Series Dimensions 11

AAD-2 Series Performance 12

AAD-5 Series Performance 12

AA Series Performance 12-13

AA Series Controls & Options 14-15

AA Series Dimensional Data 16

8AAD-2 Series Performance,

Controls & Options 17

8AAD-2 Dimensional Data 18

Typical Applications 19

has almosl 50 years of hydraulic and pneumalic engineering experience in Ihe design and manufac­ture of a wide range of high pressure generating equip­ment and controls.

Located in Burbank. California. U.S.A., with additional manufacturing facilities in Sunderland. England. Haskel is supported by a worldwide network of offices and distributors

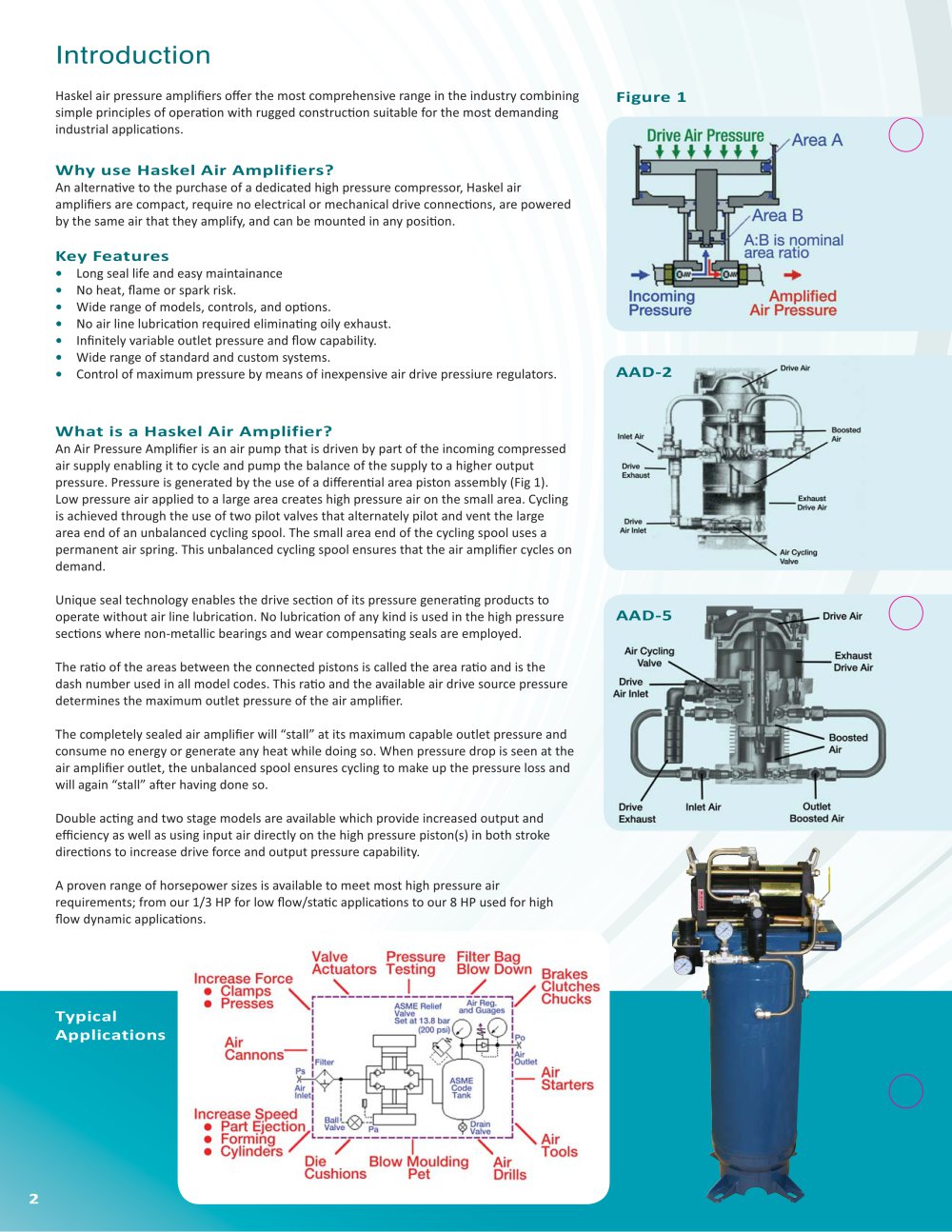

Haskel air pressure amplifiers offer the most comprehen­sive range in the industry combining simple principles of operation with rugged construction suitable for the most demanding industrial applications

Continuous investment in the most modern machinery and technology keeps Haskel the leader in this field.

An alternative to the purchase of a dedicated high pressure compressor. Haskel air amplifiers are compact, require no electrical or mechanical drive connections, are powered by the same air that they amplify, and can be mounted in any position

• Infinitely variable outlet pressure and flow capability

• No heat, flame or spark risk.

• No air line lubrication required eliminating oily exhaust.

• Long seal lite and easily maintained

• Wide range of models, controls, and options

• Wide range of standard and custom systems
