Text version of the page
| | |||||

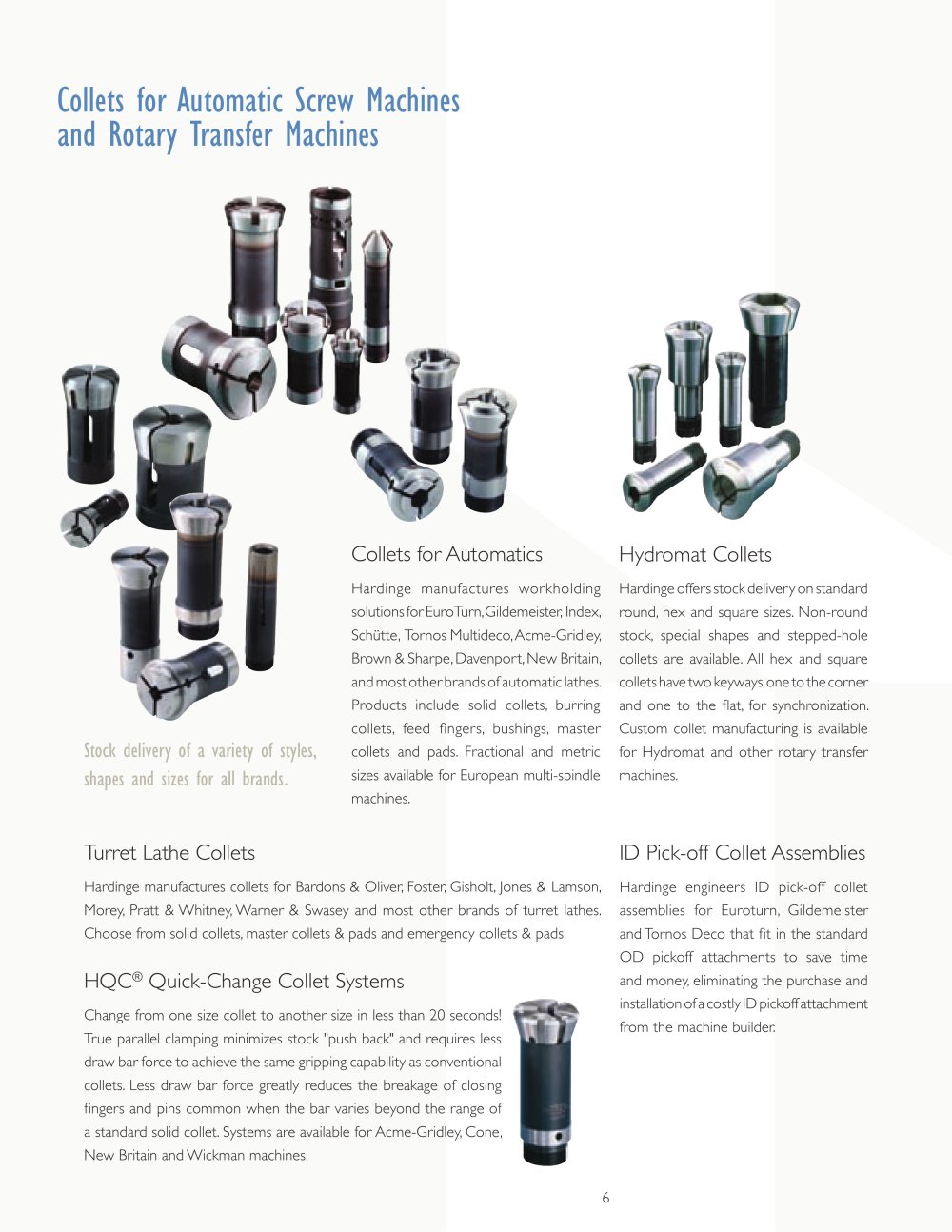

| Collets for Automatic Screw Machines and Rotary Transfer Machines | |||||
| | |||||
| Stock delivery of a variety of styles, shapes and sizes for all brands. | Collets for Automatics Hardinge manufactures workholding solutions for EuroTurn,Gildemeister Index, Schütte, Tornos Multideco, Acme-Gridley, Brown & Sharpe, Davenport, New Britain, and most other brands of automatic lathes. Products include solid collets, burring collets, feed fingers, bushings, master collets and pads. Fractional and metric sizes available for European multi-spindle machines. | Hydromat Collets Hardinge offers stock delivery on standard round, hex and square sizes. Non-round stock, special shapes and stepped-hole collets are available. All hex and square collets have two keyways,one to the corner and one to the flat, for synchronization. Custom collet manufacturing is available for Hydromat and other rotary transfer machines. | |||
| | |||||
| Turret Lathe Collets Hardinge manufactures collets for Bardons & Oliver, Foster; Gisholt, Jones & Lamson, Morey, Pratt & Whitney, Warner & Swasey and most other brands of turret lathes. Choose from solid collets, master collets & pads and emergency collets & pads. HQC® Quick-Change Collet Systems Change from one size collet to another size in less than 20 seconds! True parallel clamping minimizes stock "push back" and requires less draw bar force to achieve the same gripping capability as conventional collets. Less draw bar force greatly reduces the breakage of closing fingers and pins common when the bar varies beyond the range of a standard solid collet. Systems are available for Acme-Gridley, Cone, New Britain and Wickman machines. | ID Pick-off Collet Assemblies Hardinge engineers ID pick-off collet assemblies for Euroturn, Gildemeister and Tornos Deco that fit in the standard OD pickoff attachments to save time and money, eliminating the purchase and installation of a costly ID pickoff attachment from the machine builder. | ||||
| | |||||
| 6 | |||||
| | |||||
