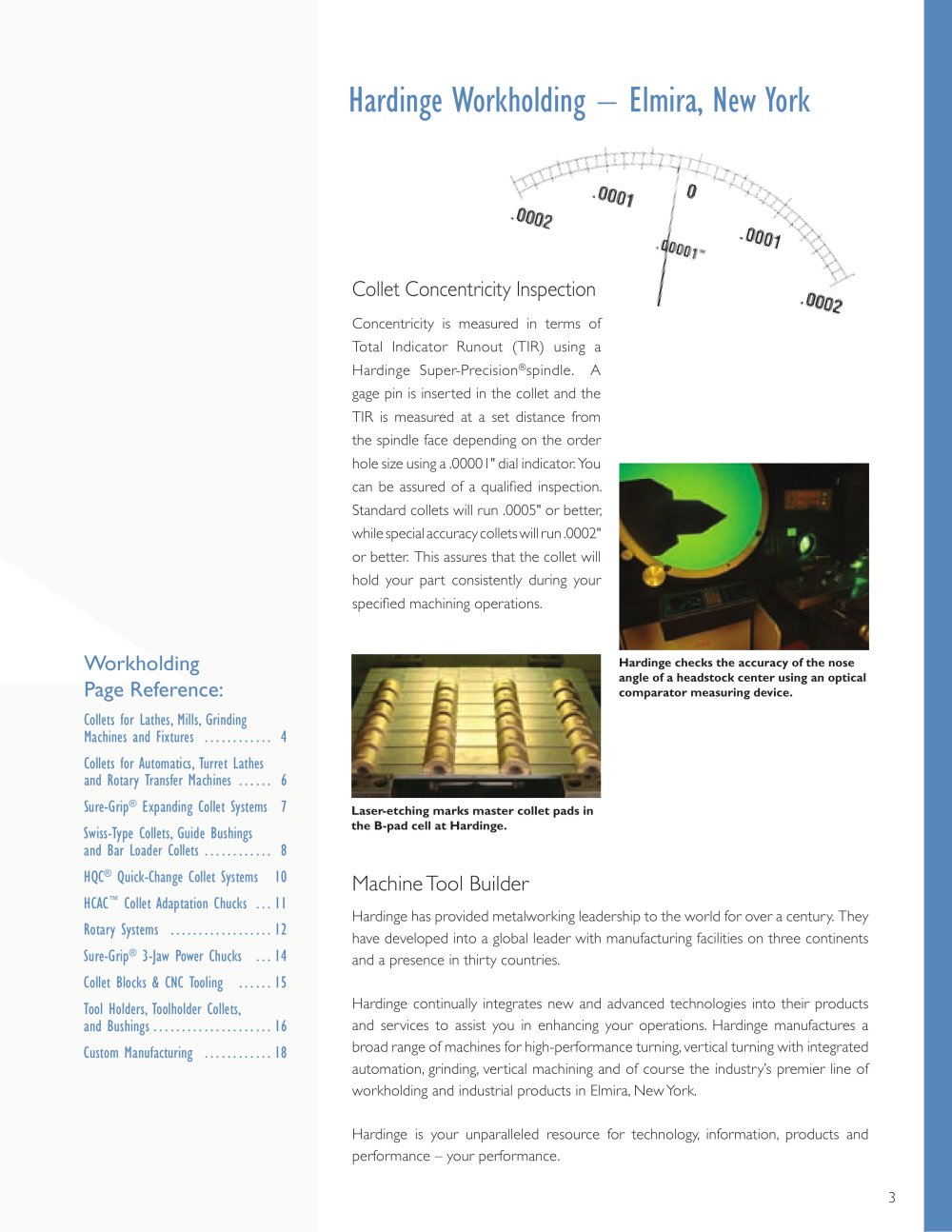

| Hardinge Workholding - Elmira, New York | |||
| | |||
| OOOj ■0Q02 | |||
| | |||
| Collet Concentricity Inspection Concentricity is measured in terms of Total Indicator Runout (TIR) using a Hardinge Super-Precision®spindle. A gage pin is inserted in the collet and the TIR is measured at a set distance from the spindle face depending on the order hole size using a .00001" dial indicator: You can be assured of a qualified inspection. Standard collets will run .0005" or better while special accuracy collets will run .0002" or better. This assures that the collet will hold your part consistently during your specified machining operations. | |||
| | |||
| Workholding Page Reference: Collets for Lathes, Mills, Grinding Machines and Fixtures ............ 4 Collets for Automatics, Turret Lathes and Rotary Transfer Machines ...... 6 Sure-Grip® Expanding Collet Systems 7 Swiss-Type Collets, Guide Bushings and Bar Loader Collets............ 8 HQC® Quick-Change Collet Systems 10 HCAC™ Collet Adaptation Chucks .„11 Rotary Systems ..................12 Sure-Grip® 3-Jaw Power Chucks ...14 Collet Blocks & CNC Tooling ......15 Tool Holders, Toolholder Collets, and Bushings.....................16 Custom Manufacturing ............18 | Hardinge checks the accuracy of the nose angle of a headstock center using an optical comparator measuring device. | ||
| Laser-etching marks master collet pads in the B-pad cell at Hardinge. | |||
| Machine Tool Builder Hardinge has provided metalworking leadership to the world for over a century. They have developed into a global leader with manufacturing facilities on three continents and a presence in thirty countries. Hardinge continually integrates new and advanced technologies into their products and services to assist you in enhancing your operations. Hardinge manufactures a broad range of machines for high-performance turning, vertical turning with integrated automation, grinding, vertical machining and of course the industry's premier line of workholding and industrial products in Elmira, New York. Hardinge is your unparalleled resource for technology, information, products and performance - your performance. | |||
| | |||
| 3 | |||
| | |||
