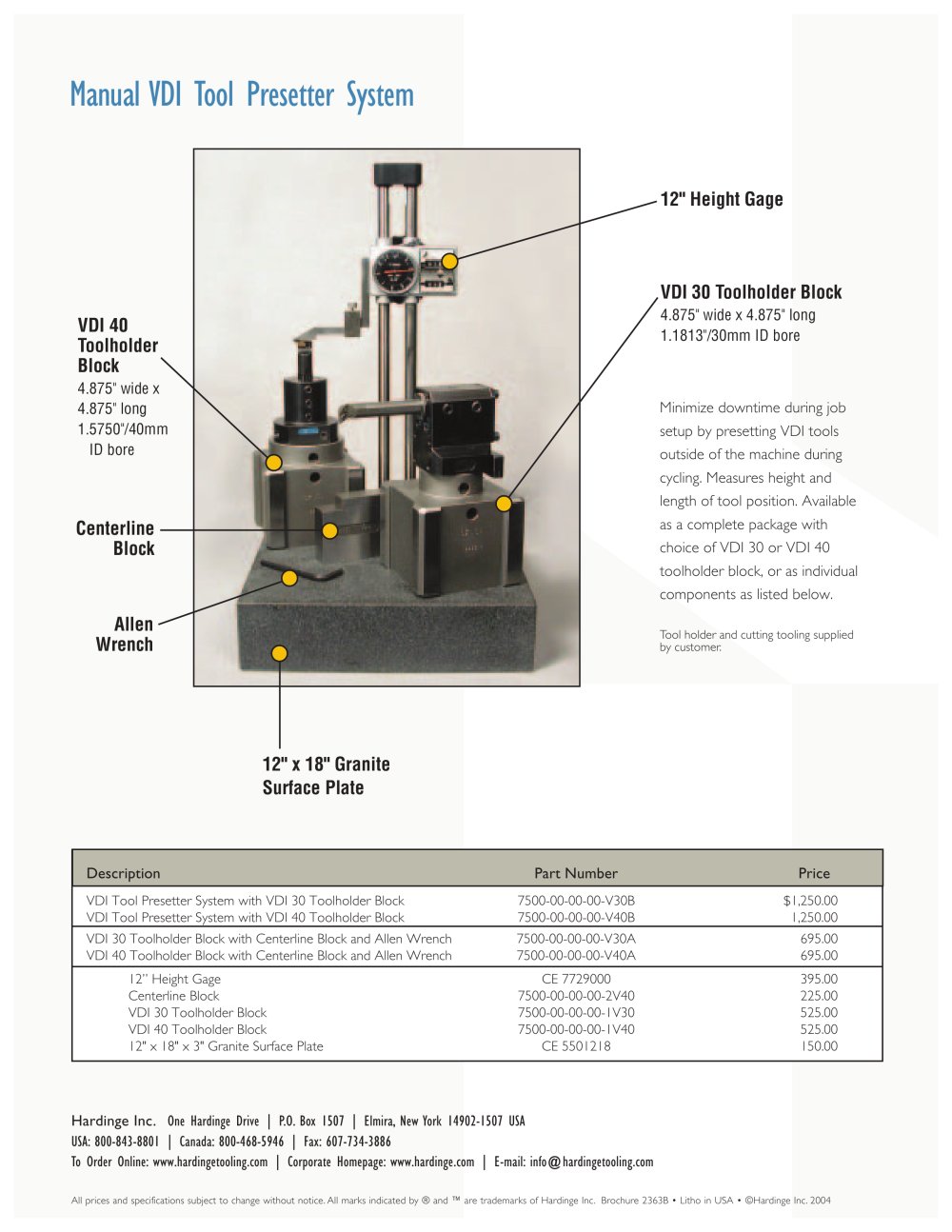

Manual VDI Tool Presetter System

12" Height Gage VDI 30 Toolholder Block VDI 40 ToolholderBlock
4.875" wide x 4.875" long1.1813"/30mm ID bore 4.875" wide x4.875" long 1.5750"/40mm ID bore Minimize downtime during jobsetup by presetting VDI tools outside of the machine during cycling. Measures height and length of tool position. Available as a complete package with choice of VDI 30 or VDI 40 toolholder block, or as individual components as listed below. CenterlineBlock AllenWrench
Tool holder and cutting tooling suppliedby customer. 12" x 18" GraniteSurface Plate
DescriptionPart NumberPrice VDI Tool Presetter System with VDI 30 Toolholder Block7500-00-00-00-V30B$1,250.00VDI Tool Presetter System with VDI 40 Toolholder Block7500-00-00-00-V40B1,250.00VDI 30 Toolholder Block with Centerline Block and Allen Wrench7500-00-00-00-V30A695.00VDI 40 Toolholder Block with Centerline Block and Allen Wrench7500-00-00-00-V40A695.0012” Height GageCE 7729000395.00Centerline Block7500-00-00-00-2V40225.00 VDI 30 Toolholder Block7500-00-00-00-1V30525.00 VDI 40 Toolholder Block7500-00-00-00-1V40525.00 12" x 18" x 3" Granite Surface PlateCE 5501218150.00 Hardinge Inc. One Hardinge Drive | P.O. Box 1507 | Elmira, New York 14902-1507 USAUSA: 800-843-8801 | Canada: 800-468-5946 | Fax: 607-734-3886 To Order Online: www.hardingetooling.com | Corporate Homepage: www.hardinge.com | E-mail: info@hardingetooling.com All prices and specifications subject to change without notice. All marks indicated by ® and ™ are trademarks of Hardinge Inc. Brochure 2363B • Litho in USA • ©Hardinge Inc. 2004
