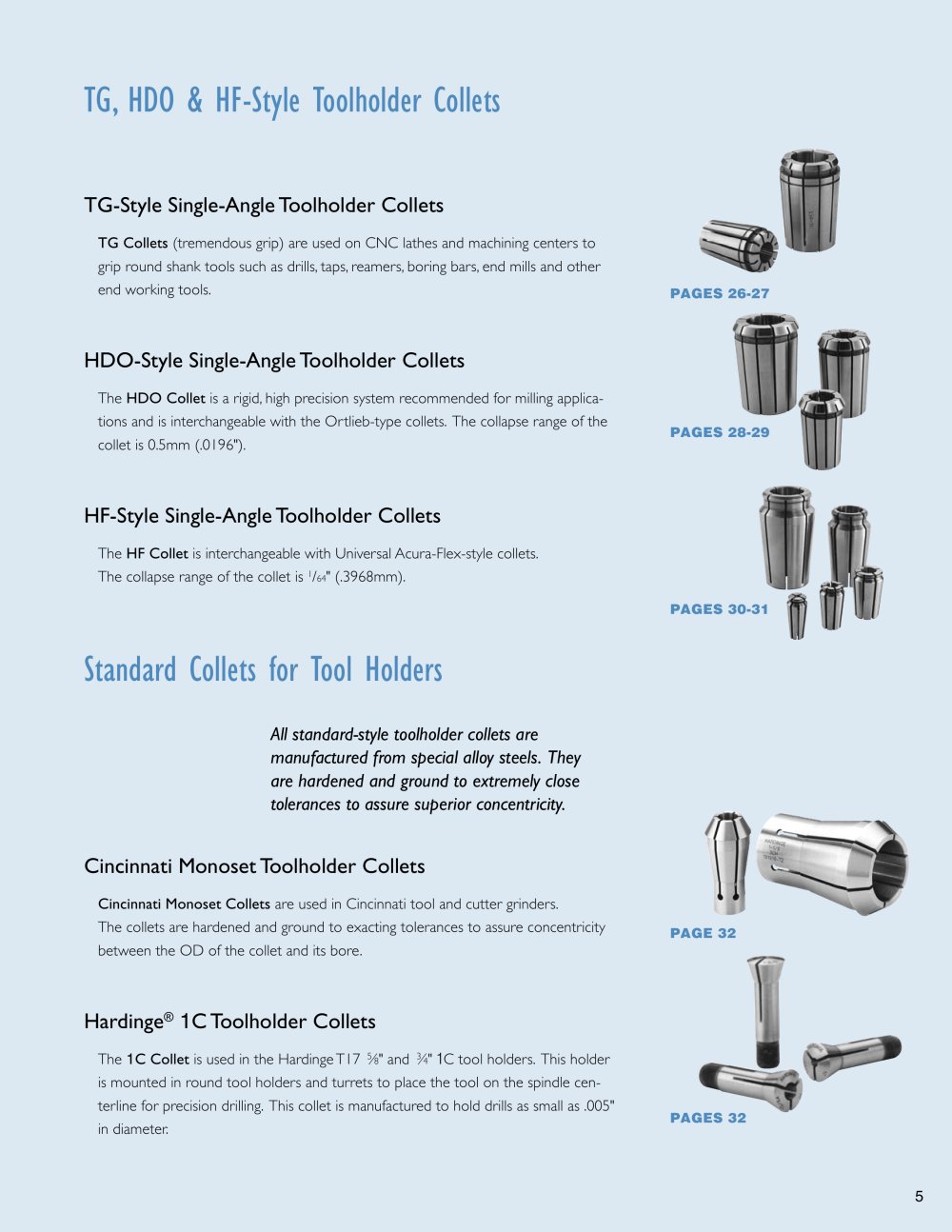

TG, HDO & HF-Style Toolholder Collets
Standard Collets for Tool Holders
TG-Style Single-Angle Toolholder Collets
TG Collets (tremendous grip) are used on
Cnc turning centres and
machining stations to grip round shank tools such as
industrial drills,
professional taps,
reamers,
boring bars, end mills and other end working tools.
PAGES 26-27PAGES 28-29
PAGES 30-31
PAGE 32
PAGES 32 HDO-Style Single-Angle Toolholder Collets
The HDO Collet is a rigid, high precision system recommended for milling applica-tions and is interchangeable with the Ortlieb-type collets. The collapse range of the collet is 0.5mm (.0196").
HF-Style Single-Angle Toolholder Collets
The HF Collet is interchangeable with Universal Acura-Flex-style collets. The collapse range of the collet is
1 /
64 " (.3968mm).
All standard-style toolholder collets are manufactured from special alloy steels. They are hardened and ground to extremely close tolerances to assure superior concentricity.
Cincinnati Monoset Toolholder Collets
Cincinnati Monoset Collets are used in Cincinnati tool and cutter grinders. The collets are hardened and ground to exacting tolerances to assure concentricity between the OD of the collet and its bore.
Hardinge
1 C Toolholder Collets
The 1 C Collet is used in the Hardinge T17
5 ⁄
8 " and
3 ⁄
4 " 1 C tool holders. This holder is mounted in round tool holders and turrets to place the tool on the
spindle cen-
terline for precision drilling. This collet is manufactured to hold drills as small as .005" in diameter. 5
