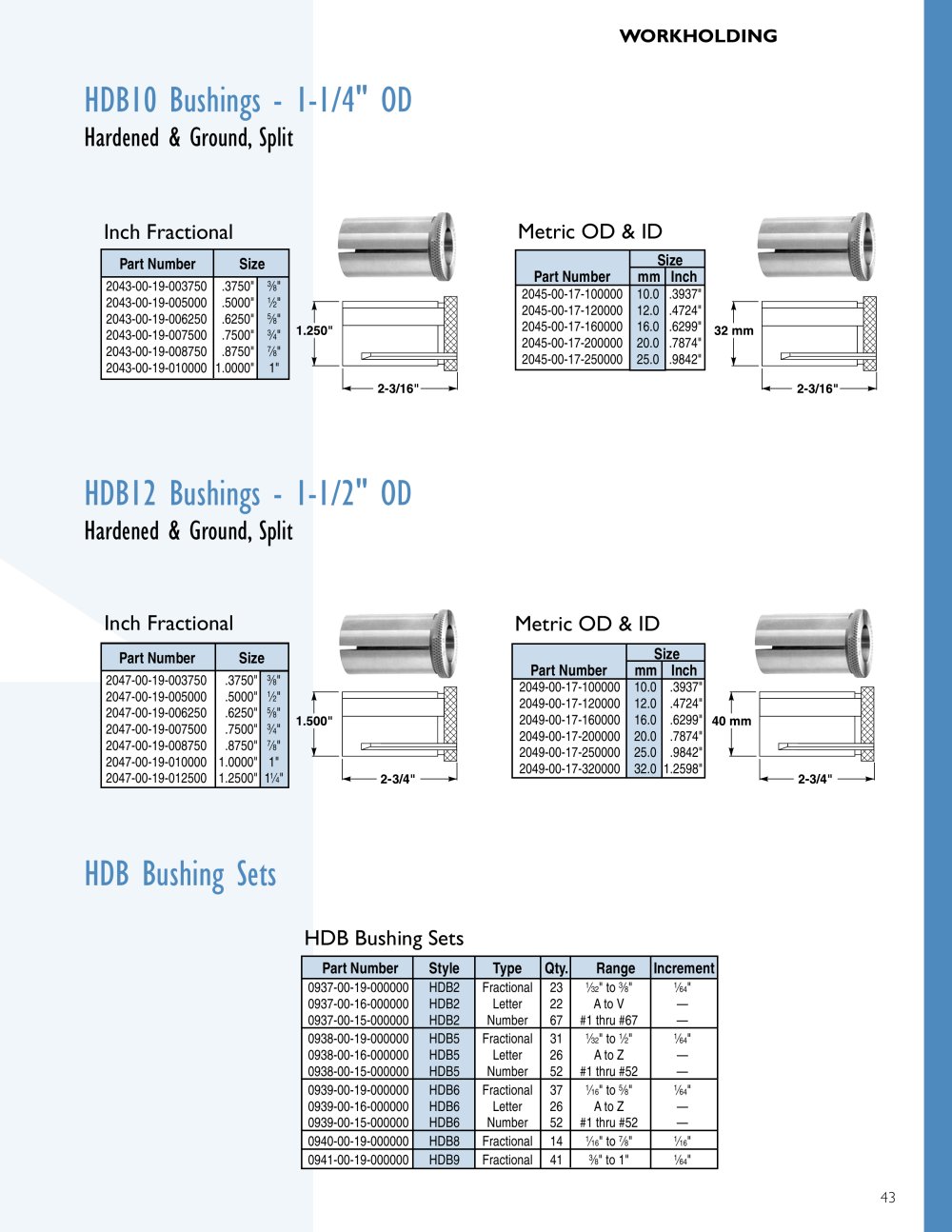

WORKHOLDING

HDB10 Bushings - 1-1/4" OD

Hardened & Ground, Split

Inch Fractional Metric OD & ID

Part Number Size Size Part Number mm Inch

2043-00-19-003750 .3750"
3 �
8 " 2043-00-19-005000 .5000"
1 �
2 " 2043-00-19-006250 .6250" 2045-00-17-100000 10.0 .3937" 2045-00-17-120000 12.0 .4724" 2045-00-17-160000 16.0 .6299" 2045-00-17-200000 20.0 .7874" 2045-00-17-250000 25.0 .9842"
5 �
8 " 2043-00-19-007500 .7500"
3 �
4 " 2043-00-19-008750 .8750"
7 �
8 " 2043-00-19-010000 1.0000" 1"

HDB12 Bushings - 1-1/2" OD

Hardened & Ground, Split

Inch Fractional Metric OD & ID

Part Number Size Size Part Number mm Inch

2047-00-19-003750 .3750"
3 �
8 " 2047-00-19-005000 .5000"
1 �
2 " 2047-00-19-006250 .6250" 2049-00-17-100000 10.0 .3937" 2049-00-17-120000 12.0 .4724" 2049-00-17-160000 16.0 .6299" 2049-00-17-200000 20.0 .7874" 2049-00-17-250000 25.0 .9842" 2049-00-17-320000 32.0 1.2598"
5 �
8 " 2047-00-19-007500 .7500"
3 �
4 " 2047-00-19-008750 .8750"
7 �
8 " 2047-00-19-010000 1.0000" 1" 2047-00-19-012500 1.2500" 1
1 �
4 "

HDB Bushing Sets

HDB Bushing Sets

Part Number Style Type Qty. Range Increment

0937-00-19-000000 HDB2 Fractional 23
1 �
32 " to
3 �
8 "
1 �
64 " 0937-00-16-000000 HDB2 Letter 22 A to V — 0937-00-15-000000 HDB2 Number 67 #1 thru #67 — 0938-00-19-000000 HDB5 Fractional 31
1 �
32 " to
1 �
2 "
1 �
64 " 0938-00-16-000000 HDB5 Letter 26 A to Z — 0938-00-15-000000 HDB5 Number 52 #1 thru #52 — 0939-00-19-000000 HDB6 Fractional 37
1 �
16 " to
5 �
8 "
1 �
64 " 0939-00-16-000000 HDB6 Letter 26 A to Z — 0939-00-15-000000 HDB6 Number 52 #1 thru #52 — 0940-00-19-000000 HDB8 Fractional 14
1 �
16 " to
7 �
8 "
1 �
16 " 0941-00-19-000000 HDB9 Fractional 41
3 �
8 " to 1"
1 �
64 "

43
