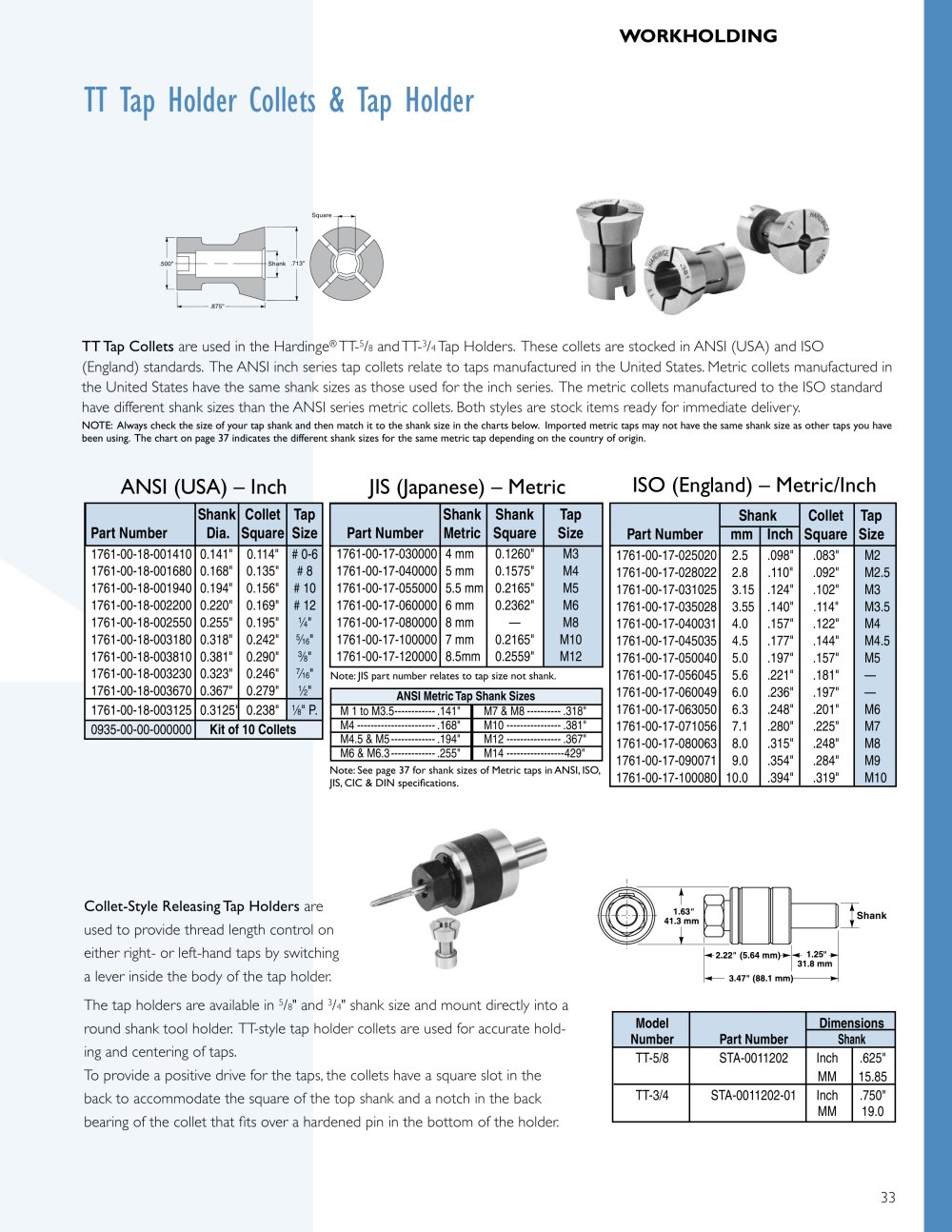

TT Tap Holder Collets & Tap Holder

.500".875".713"ShankSquare

TT Tap Collets are used in the Hardinge

TT-

/

and TT-

/

Tap Holders. These collets are stocked in ANSI (USA) and ISO (England) standards. The ANSI inch series tap collets relate to professional taps manufactured in the United States. Metric collets manufactured in the United States have the same shank sizes as those used for the inch series. The metric collets manufactured to the ISO standard have different shank sizes than the ANSI series metric collets. Both styles are stock items ready for immediate delivery.

NOTE: Always check the size of your tap shank and then match it to the shank size in the charts below. Imported metric taps may not have the same shank size as other taps you have been using. The chart on page 37 indicates the different shank sizes for the same metric tap depending on the country of origin.

ANSI (USA) – Inch JIS (Japanese) – Metric ISO (England) – Metric/Inch

Shank Collet Tap Part Number Dia. Square Size Shank Shank Tap Part Number Metric Square Size Shank Collet Tap Part Number mm Inch Square Size

1761-00-18-001410 0.141" 0.114" # 0-6 1761-00-18-001680 0.168" 0.135" # 8 1761-00-18-001940 0.194" 0.156" # 10 1761-00-18-002200 0.220" 0.169" # 12 1761-00-18-002550 0.255" 0.195" 1761-00-17-030000 4 mm 0.1260" M3 1761-00-17-040000 5 mm 0.1575" M4 1761-00-17-055000 5.5 mm 0.2165" M5 1761-00-17-060000 6 mm 0.2362" M6 1761-00-17-080000 8 mm — M8 1761-00-17-100000 7 mm 0.2165" M10 1761-00-17-120000 8.5mm 0.2559" M12 1761-00-17-025020 2.5 .098" .083" M2 1761-00-17-028022 2.8 .110" .092" M2.5 1761-00-17-031025 3.15 .124" .102" M3 1761-00-17-035028 3.55 .140" .114" M3.5 1761-00-17-040031 4.0 .157" .122" M4 1761-00-17-045035 4.5 .177" .144" M4.5 1761-00-17-050040 5.0 .197" .157" M5 1761-00-17-056045 5.6 .221" .181" — 1761-00-17-060049 6.0 .236" .197" — 1761-00-17-063050 6.3 .248" .201" M6 1761-00-17-071056 7.1 .280" .225" M7 1761-00-17-080063 8.0 .315" .248" M8 1761-00-17-090071 9.0 .354" .284" M9 1761-00-17-100080 10.0 .394" .319" M10
1 â„
4 " 1761-00-18-003180 0.318" 0.242"
5 â„
16 " 1761-00-18-003810 0.381" 0.290"
3 â„
8 " 1761-00-18-003230 0.323" 0.246"
7 â„
16 " 1761-00-18-003670 0.367" 0.279"
Note: JIS part number relates to tap size not shank. 1 â„
2 " 1761-00-18-003125 0.3125" 0.238"
ANSI Metric Tap Shank Sizes 1 â„
8 " P. 0935-00-00-000000
M 1 to M3.5 ------------.141" M7 & M8 ----------.318" M4 -----------------------.168" M10 ----------------.381" M4.5 & M5 -------------.194" M12 ----------------.367" M6 & M6.3 -------------.255" M14 -----------------429" Kit of 10 Collets
Note: See page 37 for shank sizes of Metric taps in ANSI, ISO, JIS, CIC & DIN specifications.

Collet-Style Releasing Tap Holders are used to provide thread length control on either right- or left-hand taps by switching a lever inside the body of the tap holder. The tap holders are available in

Shank 5

/

" and

/

" shank size and mount directly into a round shank tool holder. TT-style tap holder collets are used for accurate hold- ing and centering of taps. To provide a positive drive for the taps, the collets have a square slot in the back to accommodate the square of the top shank and a notch in the back bearing of the collet that fits over a hardened pin in the bottom of the holder.

Model Dimensions Number Part Number Shank TT-5/8 STA-0011202 Inch .625" MM 15.85 TT-3/4 STA-0011202-01 Inch .750" MM 19.0

33
