WORKHOLDING

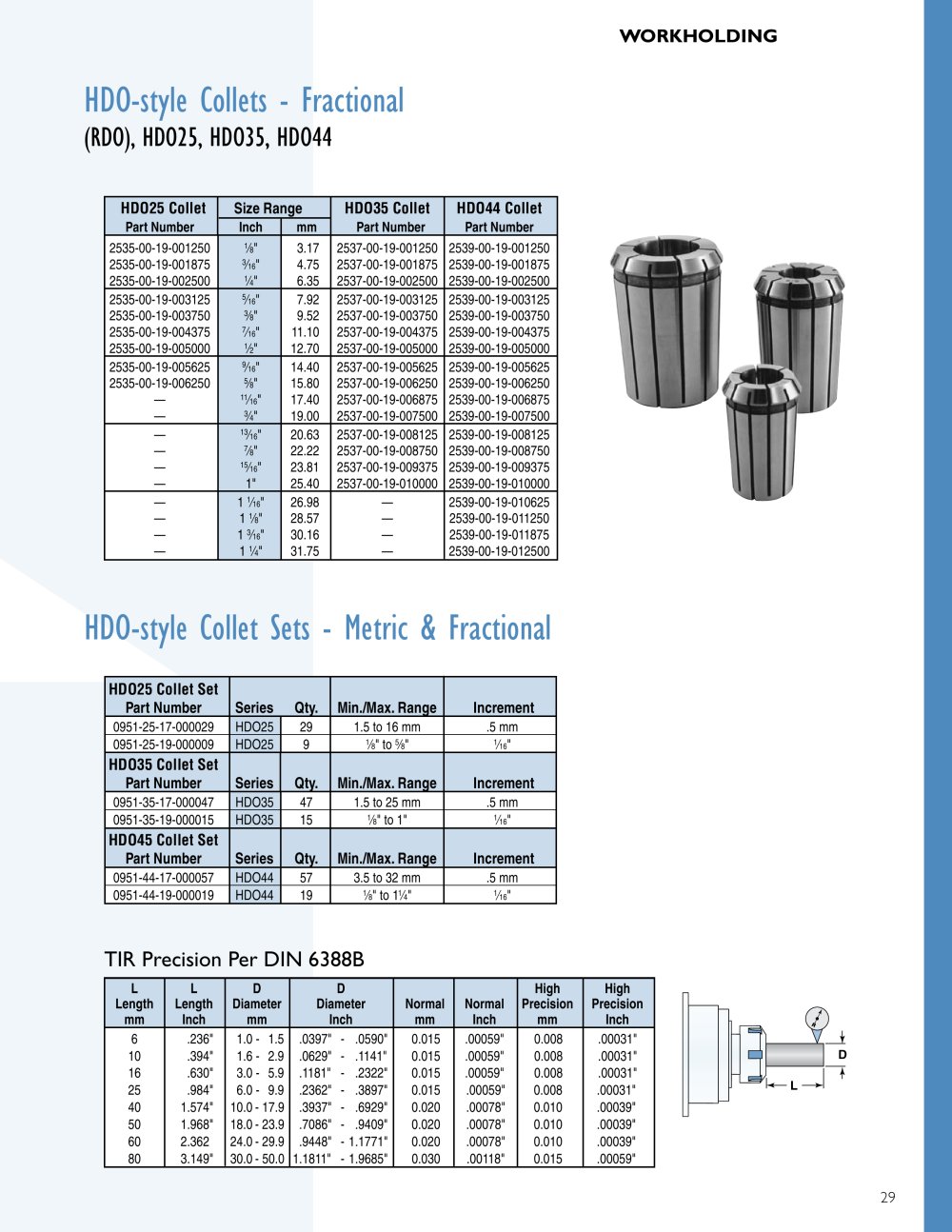

Toolholder Collets, Bushings & Tool Holders - 17884 HDO-style Collets - Fractional

(RDO), HDO25, HDO35, HDO44

HDO25 Collet Size Range HDO35 Collet HDO44 Collet

Part Number Inch mm Part Number Part Number 2535-00-19-001250
1 �
8 " 3.17 2537-00-19-001250 2539-00-19-001250 2535-00-19-001875
3 �
16 " 4.75 2537-00-19-001875 2539-00-19-001875 2535-00-19-002500
1 �
4 " 6.35 2537-00-19-002500 2539-00-19-002500 2535-00-19-003125
5 �
16 " 7.92 2537-00-19-003125 2539-00-19-003125 2535-00-19-003750
3 �
8 " 9.52 2537-00-19-003750 2539-00-19-003750 2535-00-19-004375
7 �
16 " 11.10 2537-00-19-004375 2539-00-19-004375 2535-00-19-005000
1 �
2 " 12.70 2537-00-19-005000 2539-00-19-005000 2535-00-19-005625
9 �
16 " 14.40 2537-00-19-005625 2539-00-19-005625 2535-00-19-006250
5 �
8 " 15.80 2537-00-19-006250 2539-00-19-006250 —
11 �
16 " 17.40 2537-00-19-006875 2539-00-19-006875 —
3 �
4 " 19.00 2537-00-19-007500 2539-00-19-007500 —
13 �
16 " 20.63 2537-00-19-008125 2539-00-19-008125 —
7 �
8 " 22.22 2537-00-19-008750 2539-00-19-008750 —
15 �
16 " 23.81 2537-00-19-009375 2539-00-19-009375 — 1" 25.40 2537-00-19-010000 2539-00-19-010000 — 1
1 �
16 " 26.98 — 2539-00-19-010625 — 1
1 �
8 " 28.57 — 2539-00-19-011250 — 1
3 �
16 " 30.16 — 2539-00-19-011875 — 1
1 �
4 " 31.75 — 2539-00-19-012500

HDO-style Collet Sets - Metric & Fractional

HDO25 Collet Set Part Number Series Qty. Min./Max. Range Increment

0951-25-17-000029 HDO25 29 1.5 to 16 mm .5 mm 0951-25-19-000009 HDO25 9
1 �
8 " to
5 �
8 "
1 �
16 "

HDO35 Collet Set Part Number Series Qty. Min./Max. Range Increment

0951-35-17-000047 HDO35 47 1.5 to 25 mm .5 mm 0951-35-19-000015 HDO35 15
1 �
8 " to 1"
1 �
16 "

HDO45 Collet Set Part Number Series Qty. Min./Max. Range Increment

0951-44-17-000057 HDO44 57 3.5 to 32 mm .5 mm 0951-44-19-000019 HDO44 19
1 �
8 " to 1
1 �
4 "
1 �
16 "

TIR Precision Per DIN 6388B

L L D D High High Length Length Diameter Diameter Normal Normal Precision Precision mm Inch mm Inch mm Inch mm Inch 6 .236" 1.0 - 1.5 .0397" - .0590" 0.015 .00059" 0.008 .00031" 10 .394" 1.6 - 2.9 .0629" - .1141" 0.015 .00059" 0.008 .00031" 16 .630" 3.0 - 5.9 .1181" - .2322" 0.015 .00059" 0.008 .00031" 25 .984" 6.0 - 9.9 .2362" - .3897" 0.015 .00059" 0.008 .00031" 40 1.574" 10.0 - 17.9 .3937" - .6929" 0.020 .00078" 0.010 .00039" 50 1.968" 18.0 - 23.9 .7086" - .9409" 0.020 .00078" 0.010 .00039" 60 2.362 24.0 - 29.9 .9448" - 1.1771" 0.020 .00078" 0.010 .00039" 80 3.149" 30.0 - 50.0 1.1811" - 1.9685" 0.030 .00118" 0.015 .00059"
DL

29
