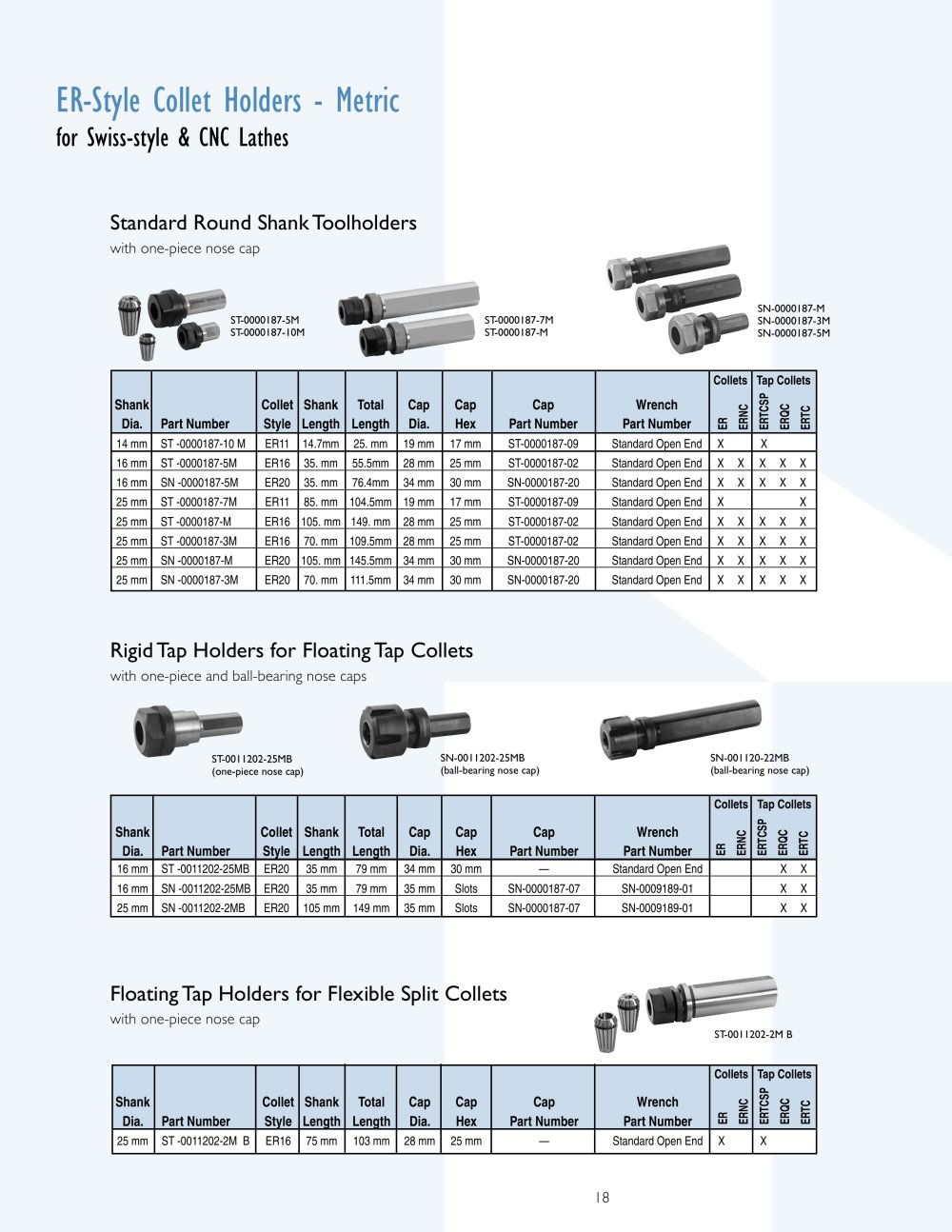

| | | ER-Style Collet Holders - Metric | | |
| | | |
| | | Standard Round Shank Toolholders | | |
| | | |
| | | SN-0000187-M SN-0000187-3M SN-0000187-5M | | |
| | | |
| | | | | | | | | | | | | | | | | | | Shank Dia. | Part Number | Collet Style | Shank Length | Total Length | Cap Dia. | Cap Hex | Cap Part Number | | Collets | Tap Collets | | | | 14 mm | ST -0000187-10 M | ER11 | 14.7mm | 25. mm | 19 mm | 17 mm | ST-0000187-09 | Standard Open End | X | X | | | | 16 mm | ST -0000187-5M | ER16 | 35. mm | 55.5mm | 28 mm | 25 mm | ST-0000187-02 | Standard Open End | X X | XXX | | | | 16 mm | SN -0000187-5M | ER20 | 35. mm | 76.4mm | 34 mm | 30 mm | SN-0000187-20 | Standard Open End | X X | XXX | | | | 25 mm | ST -0000187-7M | ER11 | 85. mm | 104.5mm | 19 mm | 17 mm | ST-0000187-09 | Standard Open End | X | X | | | | 25 mm | ST -0000187-M | ER16 | 105. mm | 149. mm | 28 mm | 25 mm | ST-0000187-02 | Standard Open End | X X | XXX | | | | 25 mm | ST -0000187-3M | ER16 | 70. mm | 109.5mm | 28 mm | 25 mm | ST-0000187-02 | Standard Open End | X X | X X X | | | | 25 mm | SN -0000187-M | ER20 | 105. mm | 145.5mm | 34 mm | 30 mm | SN-0000187-20 | Standard Open End | X X | X X X | | | | 25 mm | SN -0000187-3M | ER20 | 70. mm | 111.5mm | 34 mm | 30 mm | SN-0000187-20 | Standard Open End | X X | X X X | | | | | | | | | | | | | | | | | | |
| | | |
| | | Rigid Tap Holders for Floating Tap Collets with one-piece and ball-bearing nose caps | | |
| | | |
| | | (one-piece nose cap) (ball-bearing nose cap) (ball-bearing nose cap) | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | Collets | Tap Collets | | | | Shank Dia. | Part Number | Collet Style | Shank Length | Total Length | Cap Dia. | Cap Hex | Cap Part Number | Wrench Part Number | | ERTCSP ERQC ERTC | | | | 16 mm | ST -0011202-25MB | ER20 | 35 mm | 79 mm | 34 mm | 30 mm | — | Standard Open End | | X X | | | | 16 mm | SN -0011202-25MB | ER20 | 35 mm | 79 mm | 35 mm | Slots | SN-0000187-07 | SN-0009189-01 | | X X | | | | 25 mm | SN -0011202-2MB | ER20 | 105 mm | 149 mm | 35 mm | Slots | SN-0000187-07 | SN-0009189-01 | | X X | | | | | | | | | | | | | | | | | | |
| | | |
| | | Floating Tap Holders for Flexible Split Collets with one-piece nose cap | | |
| | | |
| | | | | | | | | | | | | | | | | | | Shank Dia. | Part Number | Collet Style | Shank Length | Total Length | Cap Dia. | Cap Hex | Cap Part Number | Wrench Part Number | ER g ERN C ts | Tap Collets | | | | 25 mm | ST -0011202-2M B | ER16 | 75 mm | 103 mm | 28 mm | 25 mm | — | Standard Open End | X | X | | | | | | | | | | | | | | | | | | |
| | | |
