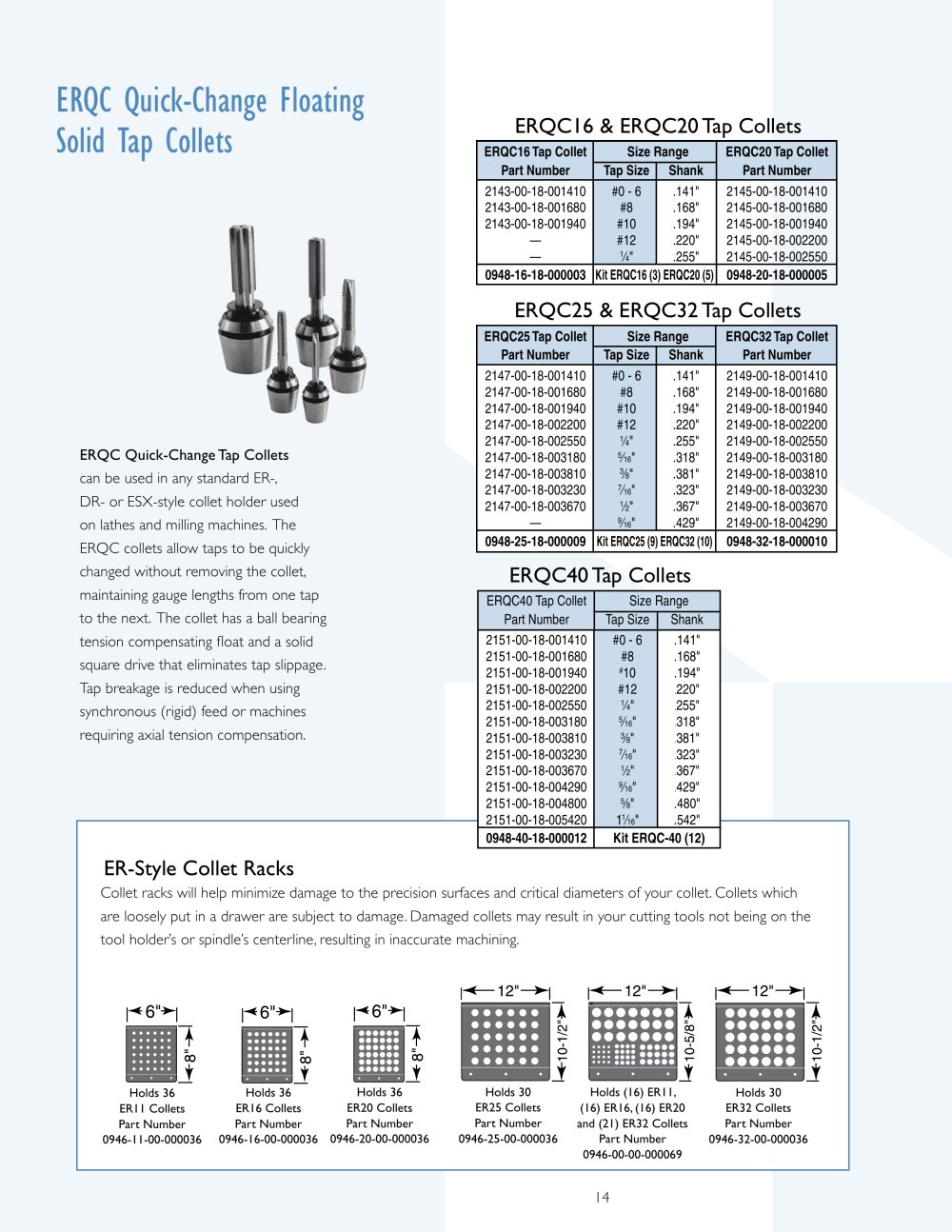

ERQC Quick-Change Floating Solid Tap Collets
ERQC16 & ERQC20 Tap Collets
ERQC16 Tap Collet Size Range ERQC20 Tap Collet Part Number Tap Size Shank Part Number 2143-00-18-001410 #0 - 6 .141" 2145-00-18-001410 2143-00-18-001680 #8 .168" 2145-00-18-001680 2143-00-18-001940 #10 .194" 2145-00-18-001940
#12 .220" 2145-00-18-002200
1 ⁄
4 " .255" 2145-00-18-002550 0948-16-18-000003 Kit ERQC16 (3) ERQC20 (5) 0948-20-18-000005
ERQC25 & ERQC32 Tap Collets
ERQC25 Tap Collet Size Range ERQC32 Tap Collet Part Number Tap Size Shank Part Number 2147-00-18-001410 #0 - 6 .141" 2149-00-18-001410 2147-00-18-001680 #8 .168" 2149-00-18-001680 2147-00-18-001940 #10 .194" 2149-00-18-001940
2147-00-18-002200 #12 .220" 2149-00-18-002200
2147-00-18-002550
1 ⁄
4 " .255" 2149-00-18-002550 2147-00-18-003180
ERQC Quick-Change Tap Collets can be used in any standard ER-, DR- or ESX-style collet holder used on lathes manufacturers and mill centers. The ERQC collets allow industrial taps to be quickly changed without removing the collet, maintaining gauge lengths from one tap to the next. The collet has a ball bearing manufacturer tension compensating float and a solid square drive that eliminates tap slippage. Tap breakage is reduced when using synchronous (rigid) feed or machines requiring axial tension compensation.
5 ⁄
16 " .318" 2149-00-18-003180 2147-00-18-003810
3 ⁄
8 " .381" 2149-00-18-003810 2147-00-18-003230
7 ⁄
16 " .323" 2149-00-18-003230 2147-00-18-003670
1 ⁄
2 " .367" 2149-00-18-003670
9 ⁄
16 " .429" 2149-00-18-004290 0948-25-18-000009 Kit ERQC25 (9) ERQC32 (10) 0948-32-18-000010
ERQC40 Tap Collets
ERQC40 Tap Collet Size Range Part Number Tap Size Shank 2151-00-18-001410 #0 - 6 .141" 2151-00-18-001680 #8 .168" 2151-00-18-001940
# 10 .194" 2151-00-18-002200 #12
. 220" 2151-00-18-002550
1 ⁄
4 "
. 255" 2151-00-18-003180
5 ⁄
16 "
. 318" 2151-00-18-003810
3 ⁄
8 "
. 381" 2151-00-18-003230
7 ⁄
16 "
. 323" 2151-00-18-003670
1 ⁄
2 "
. 367" 2151-00-18-004290
9 ⁄
16 "
. 429" 2151-00-18-004800
5 ⁄
8 " .480" 2151-00-18-005420 1
1 ⁄
16 " .542" 0948-40-18-000012 Kit ERQC-40 (12)
ER-Style Collet Racks
Collet racks will help minimize damage to the precision surfaces and critical diameters of your collet. Collets which are loosely put in a drawer are subject to damage. Damaged collets may result in your cutting tools not being on the tool holders or spindles centerline, resulting in inaccurate machining.
Holds 36 ER11 ColletsPart Number0946-11-00-000036Holds 36 ER16 ColletsPart Number0946-16-00-000036Holds 36 ER20 ColletsPart Number0946-20-00-000036Holds 30 ER25 ColletsPart Number0946-25-00-000036Holds (16) ER11, (16) ER16, (16) ER20 and (21) ER32 ColletsPart Number0946-00-00-000069Holds 30 ER32 ColletsPart Number0946-32-00-000036 14
