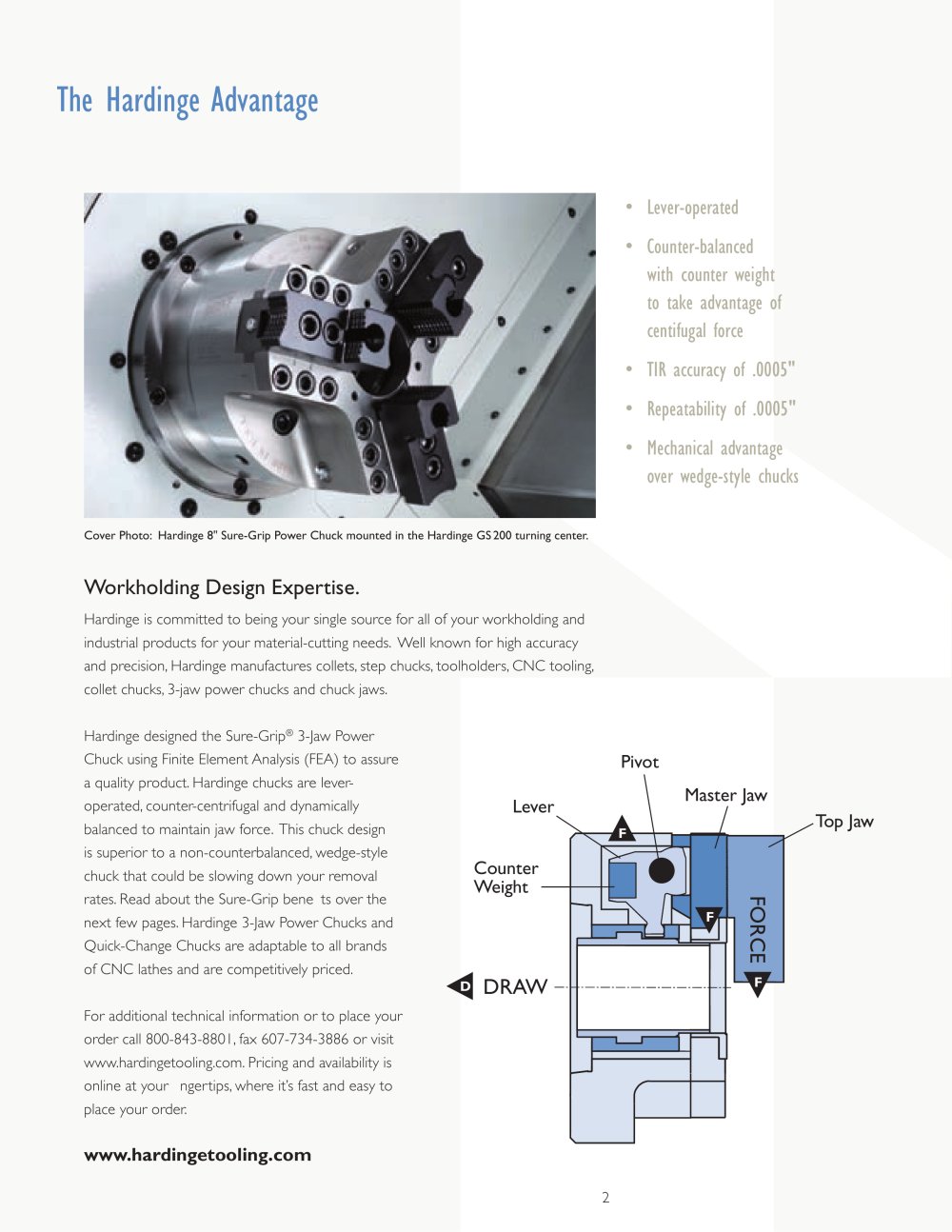

| The Hardinge Advantage | ||||
| | ||||
| • Lever-operated • Counter-balanced with counter weight to take advantage of centifugal force • TIR accuracy of .0005" • Repeatability of .0005" • Mechanical advantage over wedge-style chucks | ||||
| | ||||
| Cover Photo: Hardinge 8" Sure-Grip Power Chuck mounted in the Hardinge GS 200 turning center. Workholding Design Expertise. Hardinge is committed to being your single source for all of your workholding and industrial products for your material-cutting needs. Well known for high accuracy and precision, Hardinge manufactures collets, step chucks, toolholders, CNC tooling, collet chucks, 3-jaw power chucks and chuck jaws. | ||||
| | ||||
| Hardinge designed the Sure-Grip® 3-Jaw Power Chuck using Finite Element Analysis (FEA) to assure a quality product. Hardinge chucks are lever-operated, counter-centrifugal and dynamically balanced to maintain jaw force. This chuck design is superior to a non-counterbalanced, wedge-style chuck that could be slowing down your removal rates. Read about the Sure-Grip bene ts over the next few pages. Hardinge 3-Jaw Power Chucks and Quick-Change Chucks are adaptable to all brands of CNC lathes and are competitively priced. For additional technical information or to place your order call 800-843-8801, fax 607-734-3886 or visit www.hardingetooling.com. Pricing and availability is online at your ngertips, where it's fast and easy to place your order. www.hardingetooling.com | Pivot | |||
| Lever | Master Jaw | |||
| Counter Weight | -Top Jaw | |||
| P>| DRAW | ||||
| | ||||
| 2 | ||||
| | ||||
