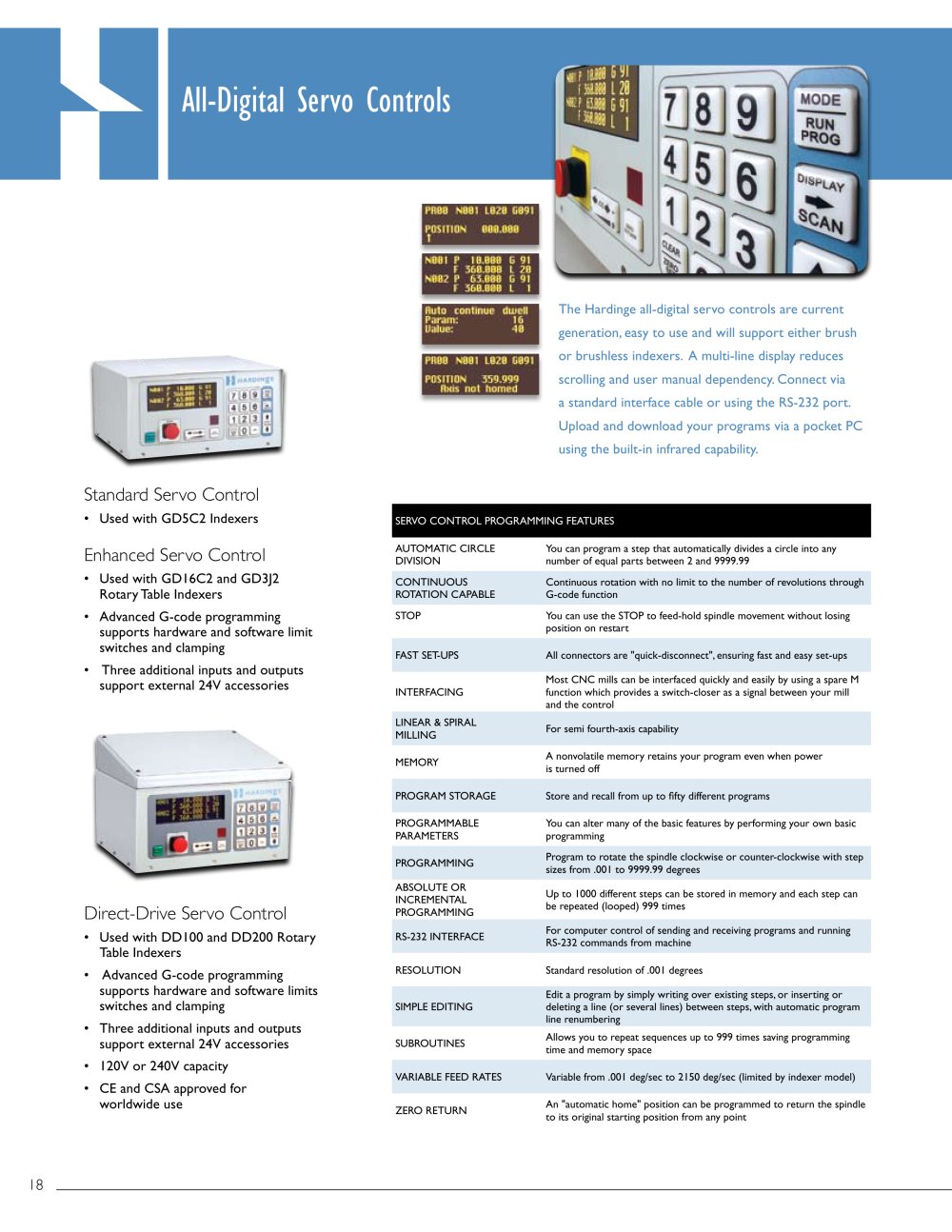

You can program a step that automatically divides a circle into any number of equal parts between 2 and 9999.99
Continuous rotation with no limit to the number of revolutions through G-code function
Most CNC mills can be interfaced quickly and easily by using a spare M function which provides a switch-closer as a signal between your mill and the control For semi fourth-axis capability
A nonvolatile memory retains your program even when power is turned off
Store and recall from up to fifty different programs
You can alter many of the basic features by performing your own basic programming
Program to rotate the spindle clockwise or counter-clockwise with step sizes from .001 to 9999.99 degrees
Up to 1000 different steps can be stored in memory and each step can be repeated (looped) 999 times
For computer control of sending and receiving programs and running RS-232 commands from machine
Standard resolution of .001 degrees
Edit a program by simply writing over existing steps, or inserting or deleting a line (or several lines) between steps, with automatic program line renumbering
Allows you to repeat sequences up to 999 times saving programming time and memory space
Variable from .001 deg/sec to 2150 deg/sec (limited by indexer model)
An "automatic home" position can be programmed to return the spindle to its original starting position from any point
