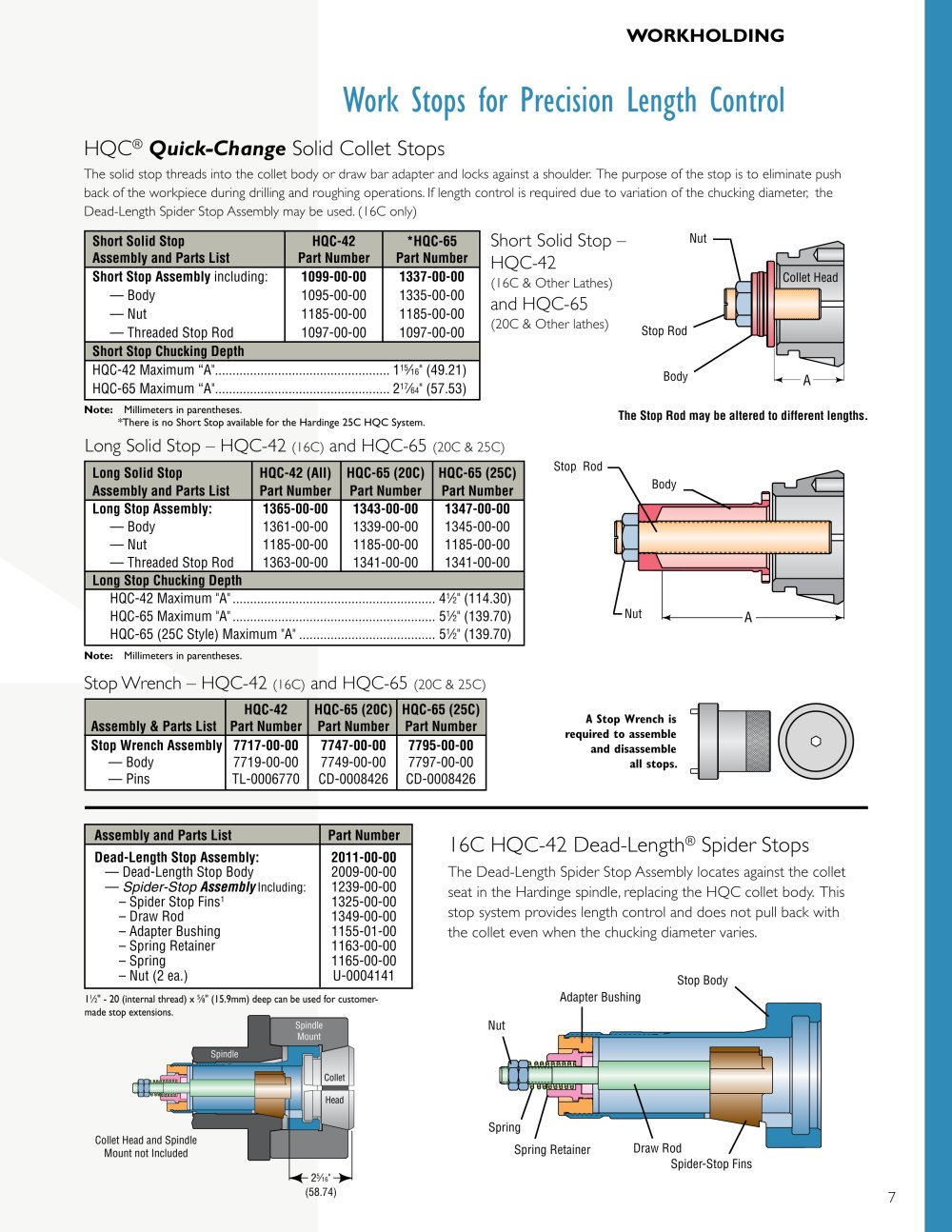

Work Stops for Precision Length Control

HQC® Quick-Change Solid Collet Stops

The solid stop threads into the collet body or draw bar adapter and locks against a shoulder. The purpose of the stop is to eliminate push back of the workpiece during drilling and roughing operations. If length control is required due to variation of the chucking diameter the Dead-Length Spider Stop Assembly may be used. (I6C only)


Short Solid Stop Assembly and Parts List	HQC-42 Part Number	*HQC-65 Part Number
Short Stop Assembly including: — Body — Nut — Threaded Stop Rod	1099-00-00 1095-00-00 1185-00-00 1097-00-00	1337-00-00 1335-00-00 1185-00-00 1097-00-00
Short Stop Chucking Depth
HQC-42 Maximum "A"..................................................1W (49.21) HQC-65 Maximum "A"..................................................2¹⁷/64" (57.53)

Short Solid Stop ■ HQC-42

(I6C & Other Lathes)

and HQC-65

(20C & Other lathes)

Nut

Stop Rod

Collet Head

Body

Note: Millimeters in parentheses.

*There is no Short Stop available for the Hardinge 25C HQC System.

Long Solid Stop - HQC-42 (I6C) and HQC-65 (20C & 25C)

The Stop Rod may be altered to different lengths.


Long Solid Stop Assembly and Parts List	HQC-42 (All) Part Number
Long Solid Stop Assembly and Parts List	HQC-42 (All) Part Number	HQC-65 (20C) Part Number	HQC-65 (25C) Part Number
Long Stop Assembly: — Body — Nut — Threaded Stop Rod	1365-00-00 1361-00-00 1185-00-00 1363-00-00	1343-00-00 1339-00-00 1185-00-00 1341-00-00	1347-00-00 1345-00-00 1185-00-00 1341-00-00
Long Stop Chucking Depth
HQC-42 Maximum "A"..........................................................4¹/2" (114.30) HQC-65 Maximum "A"..........................................................5¹/2" (139.70) HQC-65 (25C Style) Maximum "A".......................................5¹/2" (139.70)

Stop Rod


	Body
	V ' ¹
	^N h
	\ II
	t	□ ■*-A —

Note: Millimeters in parentheses.

Stop Wrench - HQC-42 (I6C) and HQC-65 (20C & 25C)


Assembly & Parts List	HQC-42 Part Number	HQC-65 (20C) Part Number	HQC-65 (25C) Part Number
Stop Wrench Assembly — Body — Pins	7717-00-00 7719-00-00 TL-0006770	7747-00-00 7749-00-00 CD-0008426	7795-00-00 7797-00-00 CD-0008426
Stop Wrench Assembly — Body — Pins	7717-00-00 7719-00-00 TL-0006770

A Stop Wrench is required to assemble and disassemble all stops.


	Assembly and Parts List	Part Number
	Dead-Length Stop Assembly:	2011-00-00
	— Dead-Length Stop Body	2009-00-00
	— Spider-Stop Assembly Including:	1239-00-00
	- Spider Stop Fins¹	1325-00-00
	- Draw Rod	1349-00-00
	- Adapter Bushing	1155-01-00
	- Spring Retainer	1163-00-00
	- Spring	1165-00-00
	- Nut (2 ea.)	U-0004141

I6C HQC-42 Dead-Length® Spider Stops

The Dead-Length Spider Stop Assembly locates against the collet seat in the Hardinge spindle, replacing the HQC collet body. This stop system provides length control and does not pull back with the collet even when the chucking diameter varies.

Stop Body

1 '/2" - 20 (internal thread) x ⁵/s^M (15.9mm) deep can be used made stop extensions.

for customer-

Adapter Bushing

Nut

Spring

Collet Head and Spindle Mount not Included

Spring Retainer Draw Rod

Spider-Stop Fins

-2⁵/6"H (58.74)
