HCAC Collet Adaptation Chucks - 17884 Collet Adaptation Chucks For Hardinge TALENT

®

CNC Lathes

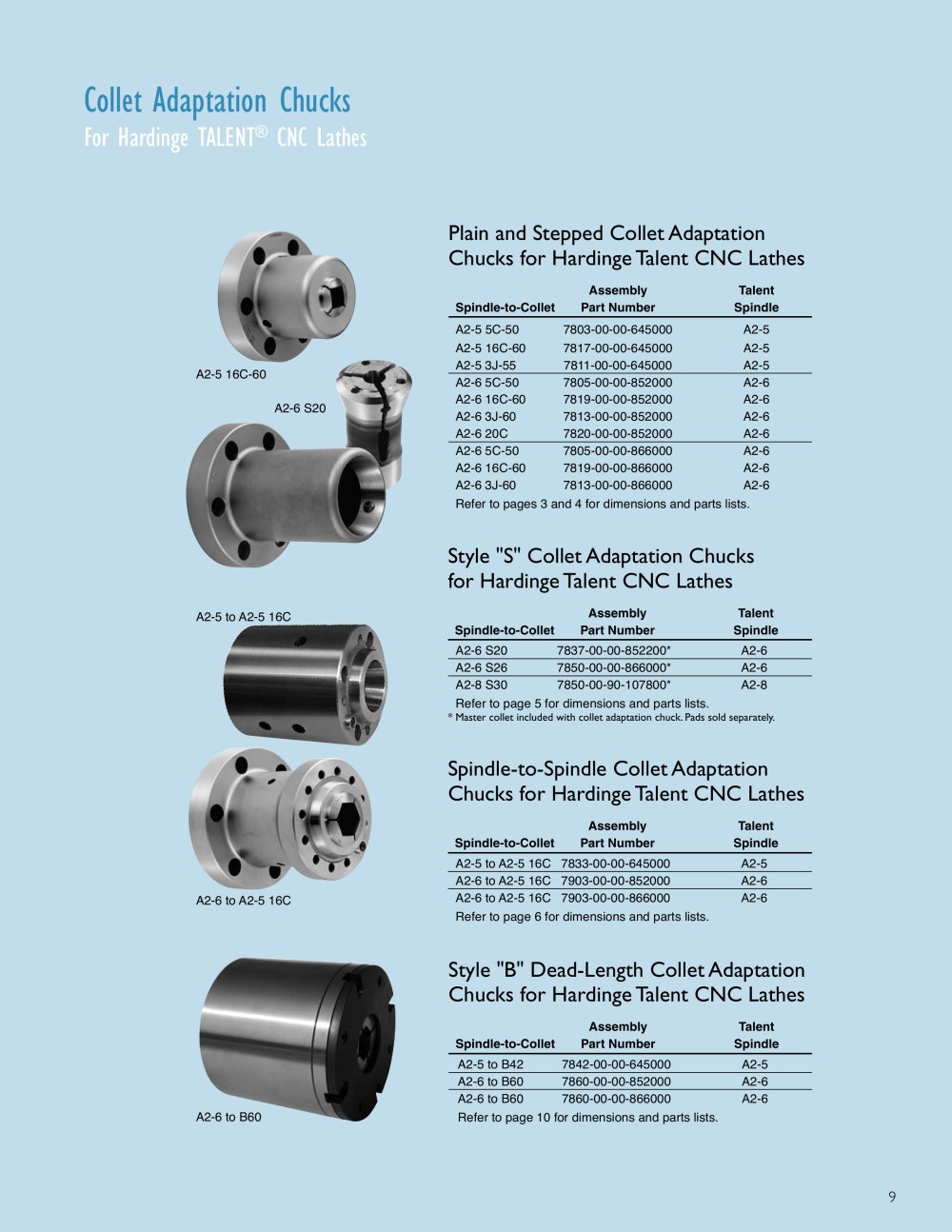

Plain and Stepped Collet Adaptation Chucks for Hardinge Talent CNC Lathes

Assembly Talent Spindle-to-Collet Part Number Spindle A2-5 5C-50 7803-00-00-645000 A2-5 A2-5 16C-60 7817-00-00-645000 A2-5 A2-5 3J-55 7811-00-00-645000 A2-5 A2-6 5C-50 7805-00-00-852000 A2-6 A2-6 16C-60 7819-00-00-852000 A2-6 A2-6 3J-60 7813-00-00-852000 A2-6 A2-6 20C 7820-00-00-852000 A2-6 A2-6 5C-50 7805-00-00-866000 A2-6 A2-6 16C-60 7819-00-00-866000 A2-6 A2-6 3J-60 7813-00-00-866000 A2-6 Refer to pages 3 and 4 for dimensions and parts lists. A2-5 16C-60A2-6 S20 A2-5 to A2-5 16C A2-6 to A2-5 16C A2-6 to B60

Style "S" Collet Adaptation Chucks for Hardinge Talent CNC Lathes

Assembly Talent Spindle-to-Collet Part Number Spindle A2-6 S20 7837-00-00-852200* A2-6 A2-6 S26 7850-00-00-866000* A2-6 A2-8 S30 7850-00-90-107800* A2-8 Refer to page 5 for dimensions and parts lists.
* Master collet included with collet adaptation chuck. Pads sold separately.

Spindle-to-Spindle Collet Adaptation Chucks for Hardinge Talent CNC Lathes

Assembly Talent Spindle-to-Collet Part Number Spindle A2-5 to A2-5 16C 7833-00-00-645000 A2-5 A2-6 to A2-5 16C 7903-00-00-852000 A2-6 A2-6 to A2-5 16C 7903-00-00-866000 A2-6 Refer to page 6 for dimensions and parts lists.

Style "B" Dead-Length Collet Adaptation Chucks for Hardinge Talent CNC Lathes

Assembly Talent Spindle-to-Collet Part Number Spindle A2-5 to B42 7842-00-00-645000 A2-5 A2-6 to B60 7860-00-00-852000 A2-6 A2-6 to B60 7860-00-00-866000 A2-6 Refer to page 10 for dimensions and parts lists.
