WORKHOLDING
Collets and pads sold separately unless indicated otherwise.

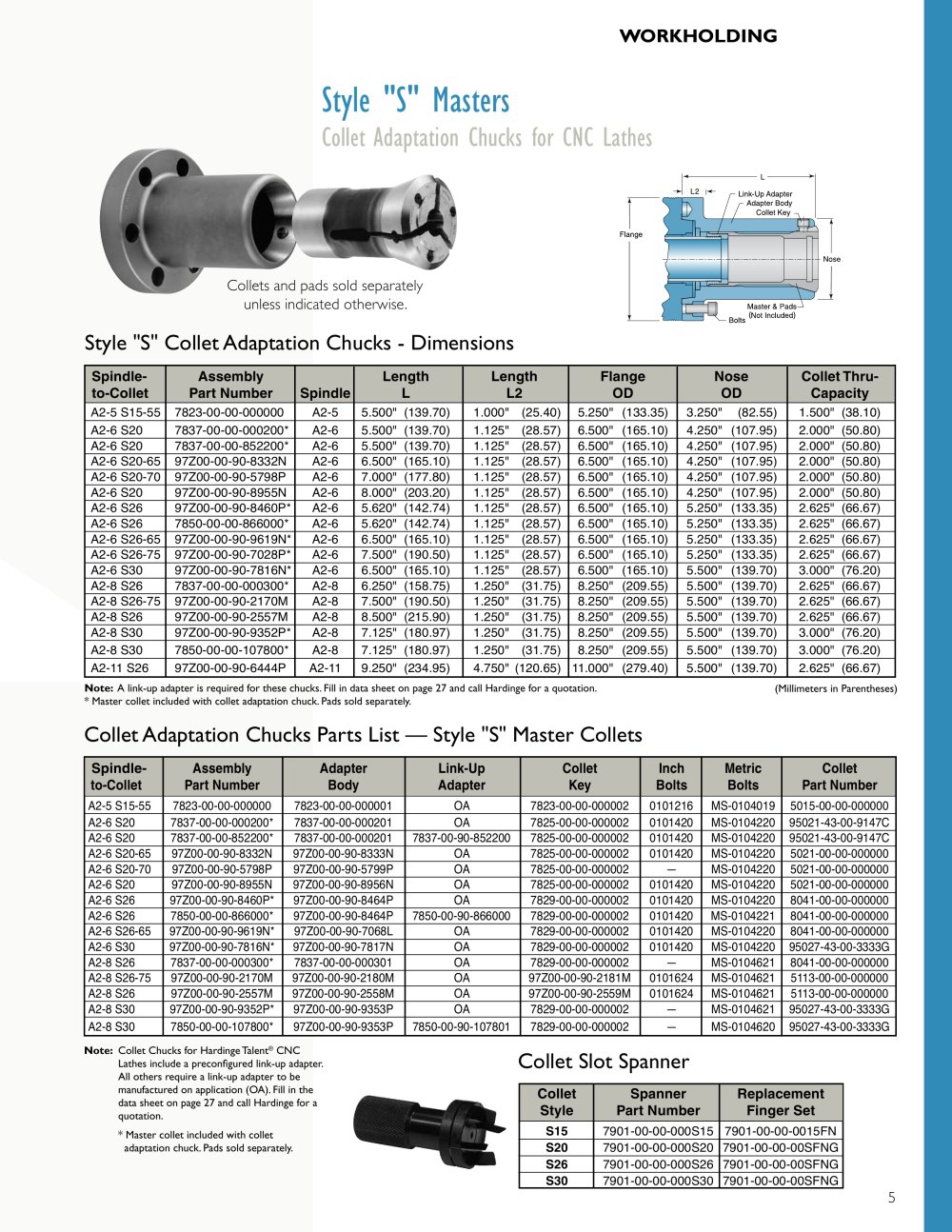

Style "S" Collet Adaptation Chucks - Dimensions
Spindle specification- Assembly Length Length Flange Nose Collet Thru-
to-Collet Part Number Spindle L L2 OD OD Capacity
A2-5 S15-55 7823-00-00-000000 A2-5 5.500" (139.70) 1.000" (25.40) 5.250" (133.35) 3.250" (82.55) 1.500" (38.10) A2-6 S20 7837-00-00-000200* A2-6 5.500" (139.70) 1.125" (28.57) 6.500" (165.10) 4.250" (107.95) 2.000" (50.80) A2-6 S20 7837-00-00-852200* A2-6 5.500" (139.70) 1.125" (28.57) 6.500" (165.10) 4.250" (107.95) 2.000" (50.80)
A2-6 S20-65 97Z00-00-90-8332N A2-6 6.500" (165.10) 1.125" (28.57) 6.500" (165.10) 4.250" (107.95) 2.000" (50.80)
A2-6 S20-70 97Z00-00-90-5798P A2-6 7.000" (177.80) 1.125" (28.57) 6.500" (165.10) 4.250" (107.95) 2.000" (50.80)
A2-6 S20 97Z00-00-90-8955N A2-6 8.000" (203.20) 1.125" (28.57) 6.500" (165.10) 4.250" (107.95) 2.000" (50.80)
A2-6 S26 97Z00-00-90-8460P* A2-6 5.620" (142.74) 1.125" (28.57) 6.500" (165.10) 5.250" (133.35) 2.625" (66.67)
A2-6 S26 7850-00-00-866000* A2-6 5.620" (142.74) 1.125" (28.57) 6.500" (165.10) 5.250" (133.35) 2.625" (66.67)
A2-6 S26-65 97Z00-00-90-9619N* A2-6 6.500" (165.10) 1.125" (28.57) 6.500" (165.10) 5.250" (133.35) 2.625" (66.67)
A2-6 S26-75 97Z00-00-90-7028P* A2-6 7.500" (190.50) 1.125" (28.57) 6.500" (165.10) 5.250" (133.35) 2.625" (66.67)
A2-6 S30 97Z00-00-90-7816N* A2-6 6.500" (165.10) 1.125" (28.57) 6.500" (165.10) 5.500" (139.70) 3.000" (76.20)
A2-8 S26 7837-00-00-000300* A2-8 6.250" (158.75) 1.250" (31.75) 8.250" (209.55) 5.500" (139.70) 2.625" (66.67)
A2-8 S26-75 97Z00-00-90-2170M A2-8 7.500" (190.50) 1.250" (31.75) 8.250" (209.55) 5.500" (139.70) 2.625" (66.67)
A2-8 S26 97Z00-00-90-2557M A2-8 8.500" (215.90) 1.250" (31.75) 8.250" (209.55) 5.500" (139.70) 2.625" (66.67)
A2-8 S30 97Z00-00-90-9352P* A2-8 7.125" (180.97) 1.250" (31.75) 8.250" (209.55) 5.500" (139.70) 3.000" (76.20) A2-8 S30 7850-00-00-107800* A2-8 7.125" (180.97) 1.250" (31.75) 8.250" (209.55) 5.500" (139.70) 3.000" (76.20)
A2-11 S26 97Z00-00-90-6444P A2-11 9.250" (234.95) 4.750" (120.65) 11.000" (279.40) 5.500" (139.70) 2.625" (66.67)
Note: A link-up adapter is required for these chucks. Fill in data sheet on page 27 and call Hardinge for a quotation.* Master collet included with collet adaptation industrial chuck. Pads sold separately. (Millimeters in Parentheses) Collet Adaptation Chucks Parts List — Style "S" Master Collets
Spindle- Assembly Adapter Link-Up Collet Inch Metric Collet to-Collet Part Number Body Adapter Key Bolts Bolts Part Number
A2-5 S15-55 7823-00-00-000000 7823-00-00-000001 OA 7823-00-00-000002 0101216 MS-0104019 5015-00-00-000000 A2-6 S20 7837-00-00-000200* 7837-00-00-000201 OA 7825-00-00-000002 0101420 MS-0104220 95021-43-00-9147C A2-6 S20 7837-00-00-852200* 7837-00-00-000201 7837-00-90-852200 7825-00-00-000002 0101420 MS-0104220 95021-43-00-9147C A2-6 S20-65 97Z00-00-90-8332N 97Z00-00-90-8333N OA 7825-00-00-000002 0101420 MS-0104220 5021-00-00-000000
A2-6 S20-70 97Z00-00-90-5798P 97Z00-00-90-5799P OA 7825-00-00-000002 — MS-0104220 5021-00-00-000000
A2-6 S20 97Z00-00-90-8955N 97Z00-00-90-8956N OA 7825-00-00-000002 0101420 MS-0104220 5021-00-00-000000
A2-6 S26 97Z00-00-90-8460P* 97Z00-00-90-8464P OA 7829-00-00-000002 0101420 MS-0104220 8041-00-00-000000
A2-6 S26 7850-00-00-866000* 97Z00-00-90-8464P 7850-00-90-866000 7829-00-00-000002 0101420 MS-0104221 8041-00-00-000000
A2-6 S26-65 97Z00-00-90-9619N* 97Z00-00-90-7068L OA 7829-00-00-000002 0101420 MS-0104220 8041-00-00-000000
A2-6 S30 97Z00-00-90-7816N* 97Z00-00-90-7817N OA 7829-00-00-000002 0101420 MS-0104220 95027-43-00-3333G
A2-8 S26 7837-00-00-000300* 7837-00-00-000301 OA 7829-00-00-000002 — MS-0104621 8041-00-00-000000
A2-8 S26-75 97Z00-00-90-2170M 97Z00-00-90-2180M OA 97Z00-00-90-2181M 0101624 MS-0104621 5113-00-00-000000
A2-8 S26 97Z00-00-90-2557M 97Z00-00-90-2558M OA 97Z00-00-90-2559M 0101624 MS-0104621 5113-00-00-000000
A2-8 S30 97Z00-00-90-9352P* 97Z00-00-90-9353P OA 7829-00-00-000002 — MS-0104621 95027-43-00-3333G A2-8 S30 7850-00-00-107800* 97Z00-00-90-9353P 7850-00-90-107801 7829-00-00-000002 — MS-0104620 95027-43-00-3333G
Note: Collet collets for Hardinge Talent ® NUMERIC CONTROL Lathes specifications include a preconfigured link-up adapter. All others require a link-up adapter to be manufactured on application (OA). Fill in the data sheet on page 27 and call Hardinge for a quotation. * Master collet included with collet adaptation chuck. Pads sold separately. Collet Slot Spanner
Collet Spanner Replacement Style Part Number Finger Set
S15 7901-00-00-000S15 7901-00-00-0015FN S20 7901-00-00-000S20 7901-00-00-00SFNG S26 7901-00-00-000S26 7901-00-00-00SFNG S30 7901-00-00-000S30 7901-00-00-00SFNG
5
