WORKHOLDING

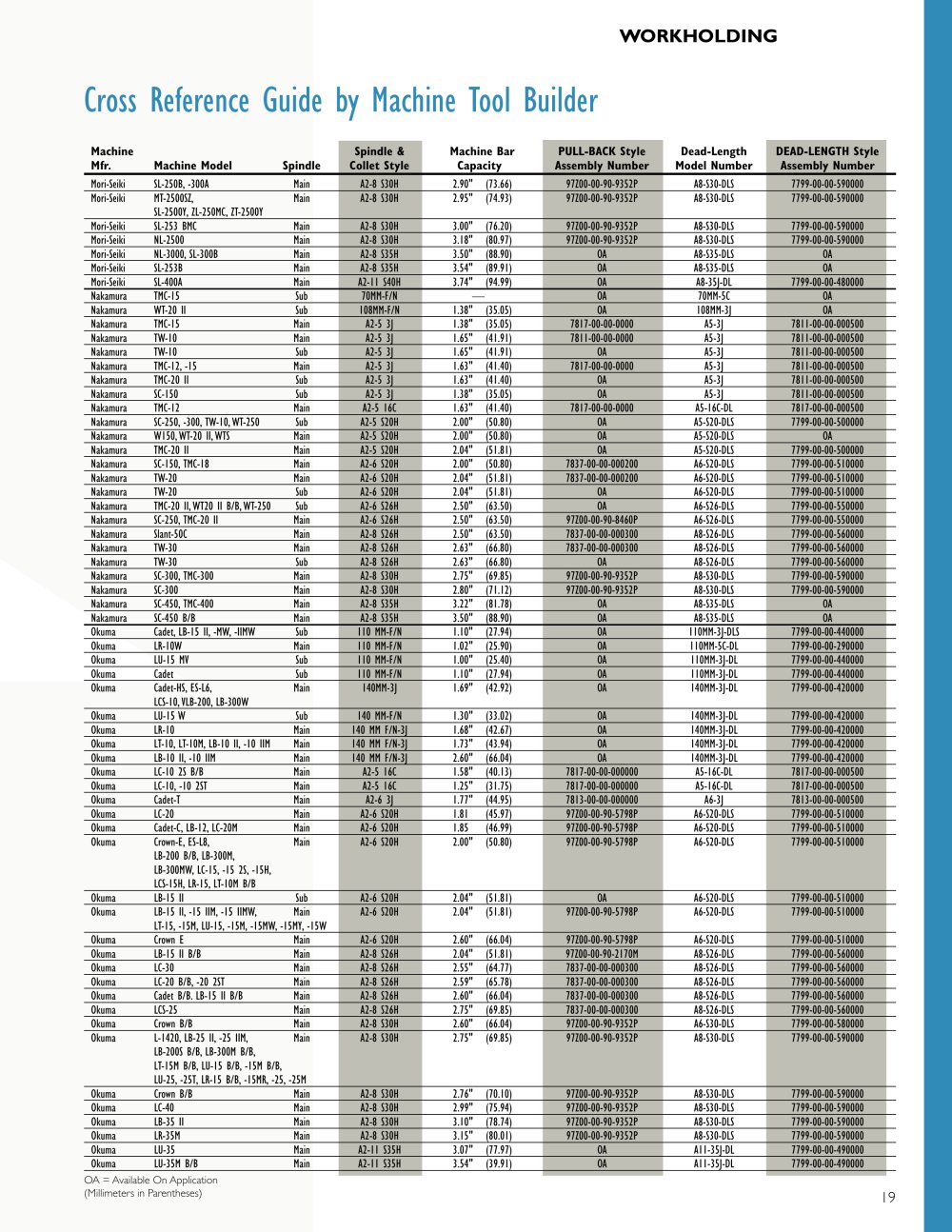

HCAC Collet Adaptation Chucks - 17884 Cross Reference Guide by Machine Tool Builder

Machine Spindle & Machine Bar PULL-BACK Style Dead-Length DEAD-LENGTH Style Mfr. Machine Model Spindle Collet Style Capacity Assembly Number Model Number Assembly Number Mori-Seiki SL-250B, -300A Main A2-8 S30H 2.90" (73.66) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Mori-Seiki MT-2500SZ, Main A2-8 S30H 2.95" (74.93) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 SL-2500Y, ZL-250MC, ZT-2500Y Mori-Seiki SL-253 BMC Main A2-8 S30H 3.00" (76.20) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Mori-Seiki NL-2500 Main A2-8 S30H 3.18" (80.97) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Mori-Seiki NL-3000, SL-300B Main A2-8 S35H 3.50" (88.90) OA A8-S35-DLS OA Mori-Seiki SL-253B Main A2-8 S35H 3.54" (89.91) OA A8-S35-DLS OA Mori-Seiki SL-400A Main A2-11 S40H 3.74" (94.99) OA A8-35J-DL 7799-00-00-480000 Nakamura TMC-15 Sub 70MM-F/N — OA 70MM-5C OA Nakamura WT-20 II Sub 108MM-F/N 1.38" (35.05) OA 108MM-3J OA Nakamura TMC-15 Main A2-5 3J 1.38" (35.05) 7817-00-00-0000 A5-3J 7811-00-00-000500 Nakamura TW-10 Main A2-5 3J 1.65" (41.91) 7811-00-00-0000 A5-3J 7811-00-00-000500 Nakamura TW-10 Sub A2-5 3J 1.65" (41.91) OA A5-3J 7811-00-00-000500 Nakamura TMC-12, -15 Main A2-5 3J 1.63" (41.40) 7817-00-00-0000 A5-3J 7811-00-00-000500 Nakamura TMC-20 II Sub A2-5 3J 1.63" (41.40) OA A5-3J 7811-00-00-000500 Nakamura SC-150 Sub A2-5 3J 1.38" (35.05) OA A5-3J 7811-00-00-000500 Nakamura TMC-12 Main A2-5 16C 1.63" (41.40) 7817-00-00-0000 A5-16C-DL 7817-00-00-000500 Nakamura SC-250, -300, TW-10, WT-250 Sub A2-5 S20H 2.00" (50.80) OA A5-S20-DLS 7799-00-00-500000 Nakamura W150, WT-20 II, WTS Main A2-5 S20H 2.00" (50.80) OA A5-S20-DLS OA Nakamura TMC-20 II Main A2-5 S20H 2.04" (51.81) OA A5-S20-DLS 7799-00-00-500000 Nakamura SC-150, TMC-18 Main A2-6 S20H 2.00" (50.80) 7837-00-00-000200 A6-S20-DLS 7799-00-00-510000 Nakamura TW-20 Main A2-6 S20H 2.04" (51.81) 7837-00-00-000200 A6-S20-DLS 7799-00-00-510000 Nakamura TW-20 Sub A2-6 S20H 2.04" (51.81) OA A6-S20-DLS 7799-00-00-510000 Nakamura TMC-20 II, WT20 II B/B, WT-250 Sub A2-6 S26H 2.50" (63.50) OA A6-S26-DLS 7799-00-00-550000 Nakamura SC-250, TMC-20 II Main A2-6 S26H 2.50" (63.50) 97Z00-00-90-8460P A6-S26-DLS 7799-00-00-550000 Nakamura Slant-50C Main A2-8 S26H 2.50" (63.50) 7837-00-00-000300 A8-S26-DLS 7799-00-00-560000 Nakamura TW-30 Main A2-8 S26H 2.63" (66.80) 7837-00-00-000300 A8-S26-DLS 7799-00-00-560000 Nakamura TW-30 Sub A2-8 S26H 2.63" (66.80) OA A8-S26-DLS 7799-00-00-560000 Nakamura SC-300, TMC-300 Main A2-8 S30H 2.75" (69.85) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Nakamura SC-300 Main A2-8 S30H 2.80" (71.12) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Nakamura SC-450, TMC-400 Main A2-8 S35H 3.22" (81.78) OA A8-S35-DLS OA Nakamura SC-450 B/B Main A2-8 S35H 3.50" (88.90) OA A8-S35-DLS OA Okuma Cadet, LB-15 II, -MW, -IIMW Sub 110 MM-F/N 1.10" (27.94) OA 110MM-3J-DLS 7799-00-00-440000 Okuma LR-10W Main 110 MM-F/N 1.02" (25.90) OA 110MM-5C-DL 7799-00-00-290000 Okuma LU-15 MV Sub 110 MM-F/N 1.00" (25.40) OA 110MM-3J-DL 7799-00-00-440000 Okuma Cadet Sub 110 MM-F/N 1.10" (27.94) OA 110MM-3J-DL 7799-00-00-440000 Okuma Cadet-HS, ES-L6, Main 140MM-3J 1.69" (42.92) OA 140MM-3J-DL 7799-00-00-420000 LCS-10, VLB-200, LB-300W Okuma LU-15 W Sub 140 MM-F/N 1.30" (33.02) OA 140MM-3J-DL 7799-00-00-420000 Okuma LR-10 Main 140 MM F/N-3J 1.68" (42.67) OA 140MM-3J-DL 7799-00-00-420000 Okuma LT-10, LT-10M, LB-10 II, -10 IIM Main 140 MM F/N-3J 1.73" (43.94) OA 140MM-3J-DL 7799-00-00-420000 Okuma LB-10 II, -10 IIM Main 140 MM F/N-3J 2.60" (66.04) OA 140MM-3J-DL 7799-00-00-420000 Okuma LC-10 2S B/B Main A2-5 16C 1.58" (40.13) 7817-00-00-000000 A5-16C-DL 7817-00-00-000500 Okuma LC-10, -10 2ST Main A2-5 16C 1.25" (31.75) 7817-00-00-000000 A5-16C-DL 7817-00-00-000500 Okuma Cadet-T Main A2-6 3J 1.77" (44.95) 7813-00-00-000000 A6-3J 7813-00-00-000500 Okuma LC-20 Main A2-6 S20H 1.81 (45.97) 97Z00-00-90-5798P A6-S20-DLS 7799-00-00-510000 Okuma Cadet-C, LB-12, LC-20M Main A2-6 S20H 1.85 (46.99) 97Z00-00-90-5798P A6-S20-DLS 7799-00-00-510000 Okuma Crown-E, ES-L8, Main A2-6 S20H 2.00" (50.80) 97Z00-00-90-5798P A6-S20-DLS 7799-00-00-510000 LB-200 B/B, LB-300M, LB-300MW, LC-15, -15 2S, -15H, LCS-15H, LR-15, LT-10M B/B Okuma LB-15 II Sub A2-6 S20H 2.04" (51.81) OA A6-S20-DLS 7799-00-00-510000 Okuma LB-15 II, -15 IIM, -15 IIMW, Main A2-6 S20H 2.04" (51.81) 97Z00-00-90-5798P A6-S20-DLS 7799-00-00-510000 LT-15, -15M, LU-15, -15M, -15MW, -15MY, -15W Okuma Crown E Main A2-6 S20H 2.60" (66.04) 97Z00-00-90-5798P A6-S20-DLS 7799-00-00-510000 Okuma LB-15 II B/B Main A2-8 S26H 2.04" (51.81) 97Z00-00-90-2170M A8-S26-DLS 7799-00-00-560000 Okuma LC-30 Main A2-8 S26H 2.55" (64.77) 7837-00-00-000300 A8-S26-DLS 7799-00-00-560000 Okuma LC-20 B/B, -20 2ST Main A2-8 S26H 2.59" (65.78) 7837-00-00-000300 A8-S26-DLS 7799-00-00-560000 Okuma Cadet B/B. LB-15 II B/B Main A2-8 S26H 2.60" (66.04) 7837-00-00-000300 A8-S26-DLS 7799-00-00-560000 Okuma LCS-25 Main A2-8 S26H 2.75" (69.85) 7837-00-00-000300 A8-S26-DLS 7799-00-00-560000 Okuma Crown B/B Main A2-8 S30H 2.60" (66.04) 97Z00-00-90-9352P A6-S30-DLS 7799-00-00-580000 Okuma L-1420, LB-25 II, -25 IIM, Main A2-8 S30H 2.75" (69.85) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 LB-200S B/B, LB-300M B/B, LT-15M B/B, LU-15 B/B, -15M B/B, LU-25, -25T, LR-15 B/B, -15MR, -25, -25M Okuma Crown B/B Main A2-8 S30H 2.76" (70.10) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Okuma LC-40 Main A2-8 S30H 2.99" (75.94) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Okuma LB-35 II Main A2-8 S30H 3.10" (78.74) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Okuma LR-35M Main A2-8 S30H 3.15" (80.01) 97Z00-00-90-9352P A8-S30-DLS 7799-00-00-590000 Okuma LU-35 Main A2-11 S35H 3.07" (77.97) OA A11-35J-DL 7799-00-00-490000 Okuma LU-35M B/B Main A2-11 S35H 3.54" (39.91) OA A11-35J-DL 7799-00-00-490000
OA = Available On Application(Millimeters in Parentheses)

19
