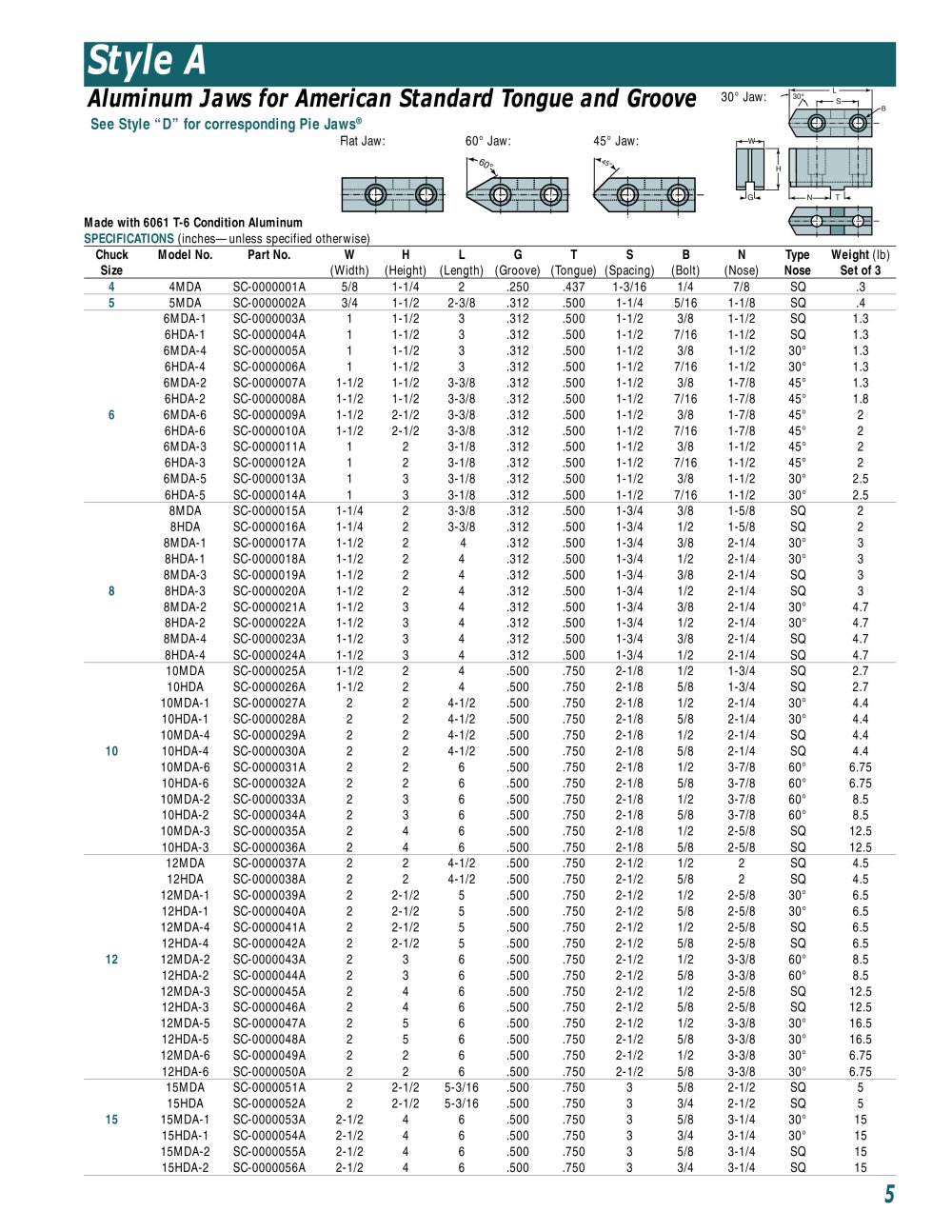

Aluminum Jaws for American Standard Tongue and Groove
See Style "D" for corresponding Pie Jaws*
Flat Jaw: 60° Jaw: 45° Jaw:
30° Jaw: -
301
I
I
n
J
rHJ 't+t
j—J t U
JgU
XX
Made with 6061 T-6 Condition Aluminum
XX
I otherwise)
Chuck
Model No.
Part No.
w
H
L
G
T
S
B
N
Type
Weight (lb)
Size
(Width)
(Height)
(Length)
(Groove)
(Tongue)
(Spacing)
(Bolt)
(Nose)
Nose
Set of 3
4
4M DA
SC-0000001A
5/8
1-1/4
2
.250
.437
1-3/16
1/4
7/8
SQ
.3
m
5MDA
SC-0000002A
3/4
1-1/2
2-3/8
.312
.500
1-1/4
5/16
1-1/8
SQ
.4
6MDA-1
SC-0000003A
1
1-1/2
3
.312
.500
1-1/2
3/8
1-1/2
SQ
1.3
6HDA-1
SC-0000004A
1
1-1/2
3
.312
.500
1-1/2
7/16
1-1/2
SQ
1.3
6MDA-4
SC-0000005A
1
1-1/2
3
.312
.500
1-1/2
3/8
1-1/2
30°
1.3
6HDA-4
SC-0000006A
1
1-1/2
3
.312
.500
1-1/2
7/16
1-1/2
30°
1.3
6MDA-2
SC-0000007A
1-1/2
1-1/2
3-3/8
.312
.500
1-1/2
3/8
1-7/8
45°
1.3
6HDA-2
SC-0000008A
1-1/2
1-1/2
3-3/8
.312
.500
1-1/2
7/16
1-7/8
45°
1.8
6MDA-6
SC-0000009A
1-1/2
2-1/2
3-3/8
.312
.500
1-1/2
3/8
1-7/8
45°
2
6HDA-6
SC-0000010A
1-1/2
2-1/2
3-3/8
.312
.500
1-1/2
7/16
1-7/8
45°
2
6MDA-3
SC-0000011A
1
2
3-1/8
.312
.500
1-1/2
3/8
1-1/2
45°
2
6HDA-3
SC-0000012A
1
2
3-1/8
.312
.500
1-1/2
7/16
1-1/2
45°
2
6MDA-5
SC-0000013A
1
3
3-1/8
.312
.500
1-1/2
3/8
1-1/2
30°
2.5
6HDA-5
SC-0000014A
1
3
3-1/8
.312
.500
1-1/2
7/16
1-1/2
30°
2.5
8MDA
SC-0000015A
1-1/4
2
3-3/8
.312
.500
1-3/4
3/8
1-5/8
SQ
2
8HDA
SC-0000016A
1-1/4
2
3-3/8
.312
.500
1-3/4
1/2
1-5/8
SQ
2
8MDA-1
SC-0000017A
1-1/2
2
4
.312
.500
1-3/4
3/8
2-1/4
30°
3
8HDA-1
SC-0000018A
1-1/2
2
4
.312
.500
1-3/4
1/2
2-1/4
30°
3
8MDA-3
SC-0000019A
1-1/2
2
4
.312
.500
1-3/4
3/8
2-1/4
SQ
3
CO
8HDA-3
SC-0000020A
1-1/2
2
4
.312
.500
1-3/4
1/2
2-1/4
SQ
3
8MDA-2
SC-0000021A
1-1/2
3
4
.312
.500
1-3/4
3/8
2-1/4
30°
4.7
8HDA-2
SC-0000022A
1-1/2
3
4
.312
.500
1-3/4
1/2
2-1/4
30°
4.7
8MDA-4
SC-0000023A
1-1/2
3
4
.312
.500
1-3/4
3/8
2-1/4
SQ
4.7
8HDA-4
SC-0000024A
1-1/2
3
4
.312
.500
1-3/4
1/2
2-1/4
SQ
4.7
10MDA
SC-0000025A
1-1/2
2
4
.500
.750
2-1/8
1/2
1-3/4
SQ
2.7
10HDA
SC-0000026A
1-1/2
2
4
.500
.750
2-1/8
5/8
1-3/4
SQ
2.7
10MDA-1
SC-0000027A
2
2
4-1/2
.500
.750
2-1/8
1/2
2-1/4
30°
4.4
10HDA-1
SC-0000028A
2
2
4-1/2
.500
.750
2-1/8
5/8
2-1/4
30°
4.4
10MDA-4
SC-0000029A
2
2
4-1/2
.500
.750
2-1/8
1/2
2-1/4
SQ
4.4
10HDA-4
SC-0000030A
2
2
4-1/2
.500
.750
2-1/8
5/8
2-1/4
SQ
4.4
10MDA-6
SC-0000031A
2
2
6
.500
.750
2-1/8
1/2
3-7/8
60°
6.75
10HDA-6
SC-0000032A
2
2
6
.500
.750
2-1/8
5/8
3-7/8
60°
6.75
10MDA-2
SC-0000033A
2
3
6
.500
.750
2-1/8
1/2
3-7/8
60°
8.5
10HDA-2
SC-0000034A
2
3
6
.500
.750
2-1/8
5/8
3-7/8
60°
8.5
10MDA-3
SC-0000035A
2
4
6
.500
.750
2-1/8
1/2
2-5/8
SQ
12.5
10HDA-3
SC-0000036A
2
4
6
.500
.750
2-1/8
5/8
2-5/8
SQ
12.5
12MDA
SC-0000037A
2
2
4-1/2
.500
.750
2-1/2
1/2
2
SQ
4.5
12HDA
SC-0000038A
2
2
4-1/2
.500
.750
2-1/2
5/8
2
SQ
4.5
12MDA-1
SC-0000039A
2
2-1/2
5
.500
.750
2-1/2
1/2
2-5/8
30°
6.5
12HDA-1
SC-0000040A
2
2-1/2
5
.500
.750
2-1/2
5/8
2-5/8
30°
6.5
12MDA-4
SC-0000041A
2
2-1/2
5
.500
.750
2-1/2
1/2
2-5/8
SQ
6.5
12HDA-4
SC-0000042A
2
2-1/2
5
.500
.750
2-1/2
5/8
2-5/8
SQ
6.5
12MDA-2
SC-0000043A
2
3
6
.500
.750
2-1/2
1/2
3-3/8
60°
8.5
12HDA-2
SC-0000044A
2
3
6
.500
.750
2-1/2
5/8
3-3/8
60°
8.5
12MDA-3
SC-0000045A
2
4
6
.500
.750
2-1/2
1/2
2-5/8
SQ
12.5
12HDA-3
SC-0000046A
2
4
6
.500
.750
2-1/2
5/8
2-5/8
SQ
12.5
12MDA-5
SC-0000047A
2
5
6
.500
.750
2-1/2
1/2
3-3/8
30°
16.5
12HDA-5
SC-0000048A
2
5
6
.500
.750
2-1/2
5/8
3-3/8
30°
16.5
12MDA-6
SC-0000049A
2
2
6
.500
.750
2-1/2
1/2
3-3/8
30°
6.75
12HDA-6
SC-0000050A
2
2
6
.500
.750
2-1/2
5/8
3-3/8
30°
6.75
15MDA
SC-0000051A
2
2-1/2
5-3/16
.500
.750
3
5/8
2-1/2
SQ
5
15HDA
SC-0000052A
2
2-1/2
5-3/16
.500
.750
3
3/4
2-1/2
SQ
5
15MDA-1
SC-0000053A
2-1/2
4
6
.500
.750
3
5/8
3-1/4
30°
15
15HDA-1
SC-0000054A
2-1/2
4
6
.500
.750
3
3/4
3-1/4
30°
15
15MDA-2
SC-0000055A
2-1/2
4
6
.500
.750
3
5/8
3-1/4
SQ
15
15HDA-2
SC-0000056A
2-1/2
4
6
.500
.750
3
3/4
3-1/4
SQ
15
