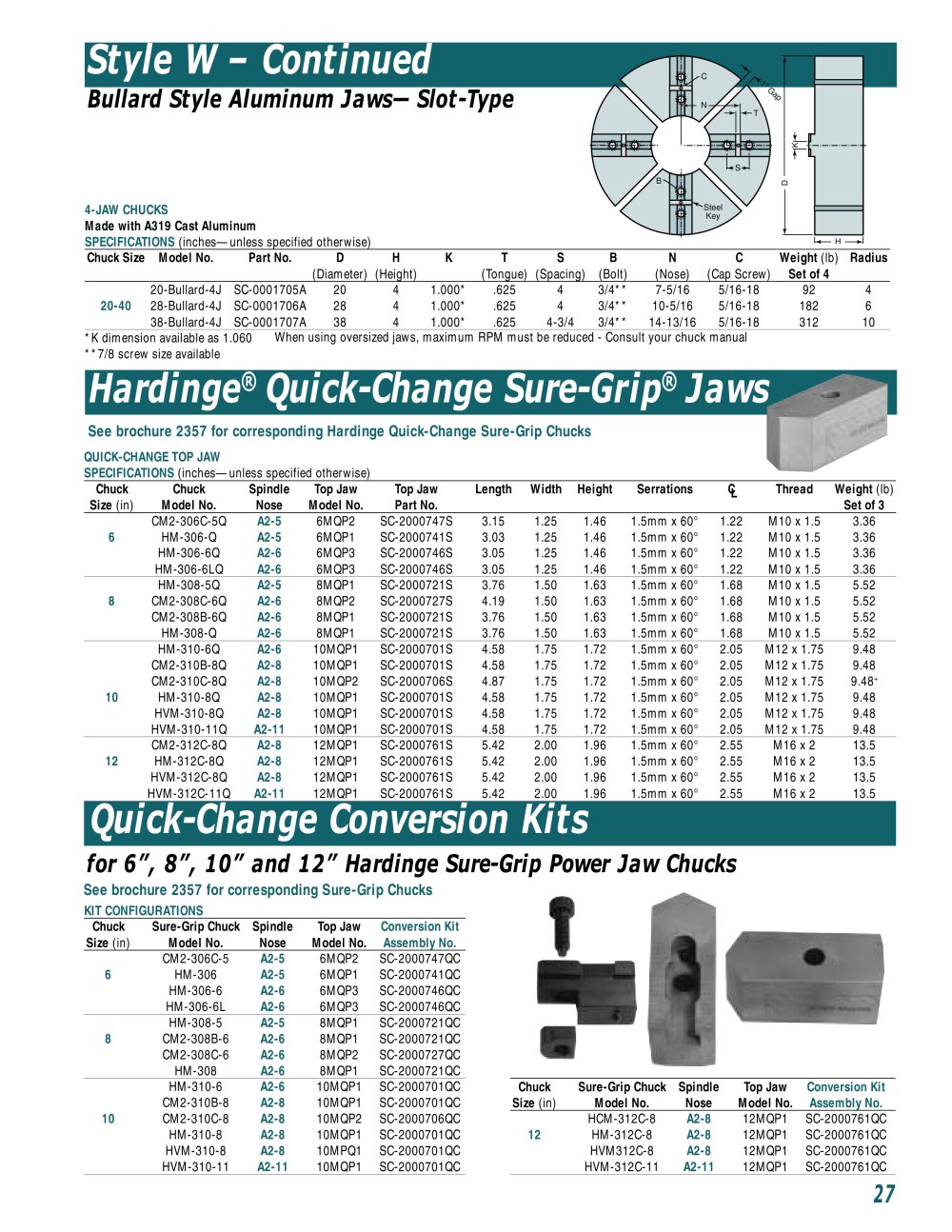

| | | Style W- Continued | | |
| | | | | |
| | | |
| | | Bui lard Style Aluminum Jaws—Sot-Type | | |
| | | |
| | | 4-JAW CHUCKS Made with A319 Cast Aluminum SPECIFICATIONS (inches—unless | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | Chuck Size | Model No. | Part No. | D H | K | T | S | B | N | C | Weight (lb) | Radius | | | | | | | (Diameter) (Height) | | (Tongue) | (Spacing) | (Bolt) | (Nose) | (Cap Screw) | Set of 4 | | | | | | 20-Bullard-4J | SC-0001705A | 20 4 | 1.000* | .625 | 4 | 3/4** | 7-5/16 | 5/16-18 | 92 | 4 | | | | 20-40 | 28-Bullard-4J | SC-0001706A | 28 4 | 1.000* | .625 | 4 | 3/4** | 10-5/16 | 5/16-18 | 182 | 6 | | | | | 38-Bullard-4J | SC-0001707A | 38 4 | 1.000* | .625 | 4-3/4 | 3/4** | 14-13/16 | 5/16-18 | 312 | 10 | | | | | | | | | | | | | | | | | | | |
| | | |
| | | When using oversized jaws, maximum RPM must be reduced - Consult your chuck manual | | |
| | | ' K dimension available as 1.060 f*7/8 screw size available | | |
| | | |
| | | |
| | | Hardi nger Quick-Change Sure-Griff Jaws | | |
| | | |
| | | r | | |
| | | See brochure 2357 for corresponding Hardinge Quick-Change Sure-Grip Chucks | | |
| | | |
| | | QUICK-CHANGE TOP JAW SPECIFICATIONS (inches—unless specified otherwise' | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | Chuck | Chuck | Spindle | Top Jaw | Top Jaw | Length | Width | Height | Serrations | <t | Thread | Weight (lb) | | | | Size (in) | Model No. | Nose | Model No. | Part No. | | | | | | | Set of 3 | | | | | CM2-306C-5Q | A2-5 | 6MQP2 | SC-2000747S | 3.15 | 1.25 | 1.46 | 1.5mm x 60° | 1.22 | M10x1.5 | 3.36 | | | | | HM-306-Q | A2-5 | 6MQP1 | SC-2000741S | 3.03 | 1.25 | 1.46 | 1.5mm x 60° | 1.22 | M10x1.5 | 3.36 | | | | | HM-306-6Q | A2-6 | 6MQP3 | SC-2000746S | 3.05 | 1.25 | 1.46 | 1.5mm x 60° | 1.22 | M10x1.5 | 3.36 | | | | | HM-306-6LQ | A2-6 | 6MQP3 | SC-2000746S | 3.05 | 1.25 | 1.46 | 1.5mm x 60° | 1.22 | M10x1.5 | 3.36 | | | | | HM-308-5Q | A2-5 | 8MQP1 | SC-2000721S | 3.76 | 1.50 | 1.63 | 1.5mm x 60° | 1.68 | M10x1.5 | 5.52 | | | | CO | CM2-308C-6Q | A2-6 | 8MQP2 | SC-2000727S | 4.19 | 1.50 | 1.63 | 1.5mm x 60° | 1.68 | M10x1.5 | 5.52 | | | | | CM2-308B-6Q | A2-6 | 8MQP1 | SC-2000721S | 3.76 | 1.50 | 1.63 | 1.5mm x 60° | 1.68 | M10x1.5 | 5.52 | | | | | HM-308-Q | A2-6 | 8MQP1 | SC-2000721S | 3.76 | 1.50 | 1.63 | 1.5mm x 60° | 1.68 | M10x1.5 | 5.52 | | | | | HM-310-6Q | A2-6 | 10MQP1 | SC-2000701S | 4.58 | 1.75 | 1.72 | 1.5mm x 60° | 2.05 | M12x1.75 | 9.48 | | | | | CM2-310B-8Q | A2-8 | 10MQP1 | SC-2000701S | 4.58 | 1.75 | 1.72 | 1.5mm x 60° | 2.05 | M12X1.75 | 9.48 | | | | | CM2-310C-8Q | A2-8 | 10MQP2 | SC-2000706S | 4.87 | 1.75 | 1.72 | 1.5mm x 60° | 2.05 | M12X1.75 | 9.48+ | | | | 1u | HM-310-8Q | A2-8 | 10MQP1 | SC-2000701S | 4.58 | 1.75 | 1.72 | 1.5mm x 60° | 2.05 | M12X1.75 | 9.48 | | | | | HVM-310-8Q | A2-8 | 10MQP1 | SC-2000701S | 4.58 | 1.75 | 1.72 | 1.5mm x 60° | 2.05 | M12X1.75 | 9.48 | | | | | HVM-310-11Q | A2-11 | 10MQP1 | SC-2000701S | 4.58 | 1.75 | 1.72 | 1.5mm x 60° | 2.05 | M12X1.75 | 9.48 | | | | | CM2-312C-8Q | A2-8 | 12MQP1 | SC-2000761S | 5.42 | 2.00 | 1.96 | 1.5mm x 60° | 2.55 | M16x2 | 13.5 | | | | 12 | HM-312C-8Q | A2-8 | 12MQP1 | SC-2000761S | 5.42 | 2.00 | 1.96 | 1.5mm x 60° | 2.55 | M16x2 | 13.5 | | | | | HVM-312C-8Q | A2-8 | 12MQP1 | SC-2000761S | 5.42 | 2.00 | 1.96 | 1.5mm x 60° | 2.55 | M16x2 | 13.5 | | | | | HVM-312C-11Q | A2-11 | 12MQP1 | SC-2000761S | 5.42 | 2.00 | 1.96 | 1.5mm x 60° | 2.55 | M16x2 | 13.5 | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Quick- Change Conversion Kit | | |
| | | |
| | | for 6", 8", 10 | | and 12" Hardinge Sure-Grip Power Jaw Chucks ng Sure-Grip Chucks | | |
| | | |
| | | Drocnure ¿.001 for corr | |
| | | |
| | | |
| | | ÎONFIGURATIONS | | |
| | | |
| | | | | | | | | | | | | Chuck | Sure-Grip Chuck | Spindle | Top Jaw | Conversion Kit | | | | Size (in) | Model No. | Nose | Model No. | Assembly No. | | | | | CM2-306C-5 | A2-5 | 6MQP2 | SC-2000747QC | | | | 6 | HM-306 | A2-5 | 6MQP1 | SC-2000741QC | | | | | HM-306-6 | A2-6 | 6MQP3 | SC-2000746QC | | | | | HM-306-6L | A2-6 | 6MQP3 | SC-2000746QC | | | | | HM-308-5 | A2-5 | 8MQP1 | SC-2000721QC | | | | CO | CM2-308B-6 | A2-6 | 8MQP1 | SC-2000721QC | | | | | CM2-308C-6 | A2-6 | 8MQP2 | SC-2000727QC | | | | | HM-308 | A2-6 | 8MQP1 | SC-2000721QC | | | | | HM-310-6 | A2-6 | 10MQP1 | SC-2000701QC | | | | | CM2-310B-8 | A2-8 | 10MQP1 | SC-2000701QC | | | | 10 | CM2-310C-8 | A2-8 | 10MQP2 | SC-2000706QC | | | | | HM-310-8 | A2-8 | 10MQP1 | SC-2000701QC | | | | | HVM-310-8 | A2-8 | 10MPQ1 | SC-2000701QC | | | | | HVM-310-11 | A2-11 | 10MQP1 | SC-2000701QC | | | | | | | | | | | | |
| | | | | | | | | | | | | Chuck | Sure-Grip Chuck | Spindle | Top Jaw | Conversion Kit | | | | Size (in) | Model No. | Nose | Model No. | Assembly No. | | | | | HCM-312C-8 | A2-8 | 12MQP1 | SC-2000761QC | | | | 12 | HM-312C-8 | A2-8 | 12MQP1 | SC-2000761QC | | | | | HVM312C-8 | A2-8 | 12MQP1 | SC-2000761QC | | | | | HVM-312C-11 | A2-11 | 12MQP1 | SC-2000761QC | | | | | | | | | | | | |
| | | |
| | | 27 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
