Text version of the page
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |

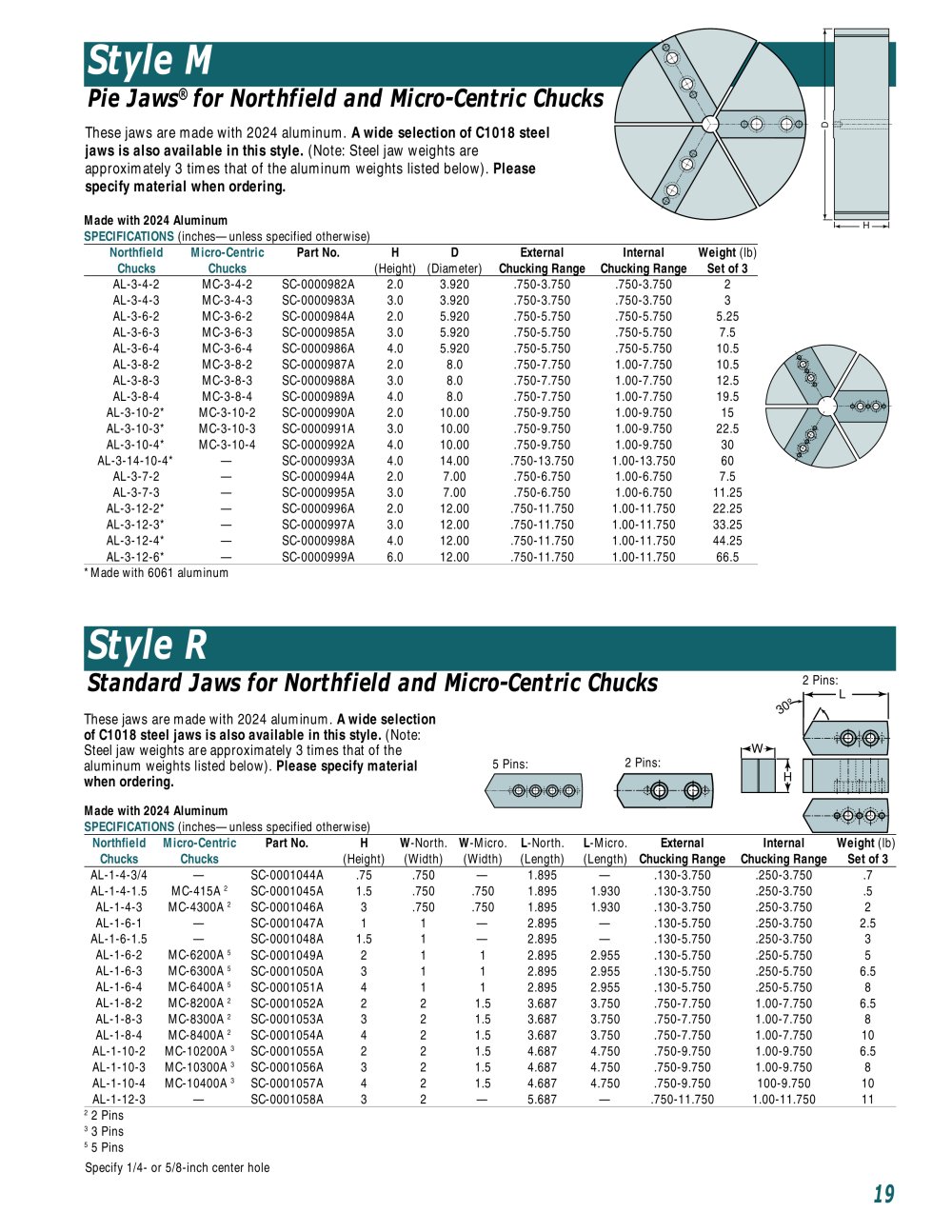

| | | £23 Re Jaws® for Northfield and Micro-Centric Chucks | | |
| | | |
| | | These jaws are made with 2024 aluminum. A wide selection of C1018 steel jaws is also available in this style. (Note: Steel jaw weights are approximately 3 times that of the aluminum weights listed below). Please specify material when ordering. Made with 2024 Aluminum SPECIFICATIONS (inches—unless specified otherwise)_ | | |
| | | |
| | | | | | | | | | | | | | | | | Northfield | Micro-Centric | Part No. | H | D | External | Internal | Weight ( | | | | Chucks | Chucks | | | (Height) | (Diameter) | Chuckinq Ranqe | Chuckinq Ranqe | Set of | | | | AL-3-4-2 | MC-3-4-2 | SC | 0000982A | 2.0 | 3.920 | .750-3.750 | .750-3.750 | 2 | | | | AL-3-4-3 | MC-3-4-3 | SC | 0000983A | 3.0 | 3.920 | .750-3.750 | .750-3.750 | | | | | AL-3-6-2 | MC-3-6-2 | SC | 0000984A | 2.0 | 5.920 | .750-5.750 | .750-5.750 | 5.25 | | | | AL-3-6-3 | MC-3-6-3 | SC | 0000985A | 3.0 | 5.920 | .750-5.750 | .750-5.750 | 7.5 | | | | AL-3-6-4 | MC-3-6-4 | SC | 0000986A | 4.0 | 5.920 | .750-5.750 | .750-5.750 | 10.5 | | | | AL-3-8-2 | MC-3-8-2 | SC | 0000987A | 2.0 | 8.0 | .750-7.750 | 1.00-7.750 | 10.5 | | | | AL-3-8-3 | MC-3-8-3 | SC | 0000988A | 3.0 | 8.0 | .750-7.750 | 1.00-7.750 | 12.5 | | | | AL-3-8-4 | MC-3-8-4 | SC | 0000989A | 4.0 | 8.0 | .750-7.750 | 1.00-7.750 | 19.5 | | | | AL-3-10-2* | MC-3-10-2 | SC | 0000990A | 2.0 | 10.00 | .750-9.750 | 1.00-9.750 | 15 | | | | AL-3-10-3* | MC-3-10-3 | SC | 0000991A | 3.0 | 10.00 | .750-9.750 | 1.00-9.750 | 22.5 | | | | AL-3-10-4* | MC-3-10-4 | SC | 0000992A | 4.0 | 10.00 | .750-9.750 | 1.00-9.750 | 30 | | | | AL-3-14-10-4* | — | SC | 0000993A | 4.0 | 14.00 | .750-13.750 | 1.00-13.750 | 60 | | | | AL-3-7-2 | — | SC | 0000994A | 2.0 | 7.00 | .750-6.750 | 1.00-6.750 | 7.5 | | | | AL-3-7-3 | — | SC | 0000995A | 3.0 | 7.00 | .750-6.750 | 1.00-6.750 | 11.25 | | | | AL-3-12-2* | — | SC | 0000996A | 2.0 | 12.00 | .750-11.750 | 1.00-11.750 | 22.25 | | | | AL-3-12-3* | — | SC | 0000997A | 3.0 | 12.00 | .750-11.750 | 1.00-11.750 | 33.25 | | | | AL-3-12-4* | | SC | 0000998A | 4.0 | 12.00 | .750-11.750 | 1.00-11.750 | 44.25 | | | | AL-3-12-6* | | SC | 0000999A | 6.0 | 12.00 | .750-11.750 | 1.00-11.750 | 66.5 | | | | | | | | | | | | | | | | |
| | | |
| | | 'Madewith 6061 aluminum | | |
| | | |
| | | Style R | | |
| | | |
| | | Standard Jaws for Northfield and Micro-Centric Chucks | | |
| | | 2 Pins: | | |
| | | |
| | | |
| | | A | | |
| | | These jaws are made with 2024 aluminum. A wide selection of C1018 steel jaws is also available in this style. (Note: Steel jaw weights are approximately 3 times that of the aluminum weights listed below). Please specify material when ordering. Made with 2024 Aluminum SPECIFICATIONS (inches—unless specified otherwise)_ | | |
| | | |
| | | | | |
| | | 2 Pins: | | |
| | | 5 Pins: | | |
| | | |
| | | |
| | | |
| | | £ | | |
| | | |
| | | | | | | | | | | | | | | | | | | Northfield Chucks | Micro-Centric Chucks | Part No. | H (Height) | W-North. (Width) | W-Micro. (Width) | L-North. (Length) | L-Micro. (Length) | Externa Chucking Range | Internal Chucking Range | Weight (lb) Set of 3 | | | | AL-1-4-3/4 | — | SC-0001044A | .75 | .750 | — | 1.895 | — | .130-3.750 | .250-3.750 | .7 | | | | AL-1-4-1.5 | MC-415A2 | SC-0001045A | 1.5 | .750 | .750 | 1.895 | 1.930 | .130-3.750 | .250-3.750 | .5 | | | | AL-1-4-3 | MC-4300A2 | SC-0001046A | 3 | .750 | .750 | 1.895 | 1.930 | .130-3.750 | .250-3.750 | 2 | | | | AL-1-6-1 | — | SC-0001047A | 1 | 1 | — | 2.895 | — | .130-5.750 | .250-3.750 | 2.5 | | | | AL-1-6-1.5 | — | SC-0001048A | 1.5 | 1 | — | 2.895 | — | .130-5.750 | .250-3.750 | 3 | | | | AL-1-6-2 | MC-6200A5 | SC-0001049A | 2 | 1 | 1 | 2.895 | 2.955 | .130-5.750 | .250-5.750 | 5 | | | | AL-1-6-3 | MC-6300A5 | SC-0001050A | 3 | 1 | 1 | 2.895 | 2.955 | .130-5.750 | .250-5.750 | 6.5 | | | | AL-1-6-4 | MC-6400A5 | SC-0001051A | 4 | 1 | 1 | 2.895 | 2.955 | .130-5.750 | .250-5.750 | 8 | | | | AL-1-8-2 | MC-8200A2 | SC-0001052A | 2 | 2 | 1.5 | 3.687 | 3.750 | .750-7.750 | 1.00-7.750 | 6.5 | | | | AL-1-8-3 | MC-8300A2 | SC-0001053A | 3 | 2 | 1.5 | 3.687 | 3.750 | .750-7.750 | 1.00-7.750 | CO | | | | AL-1-8-4 | MC-8400A2 | SC-0001054A | 4 | 2 | 1.5 | 3.687 | 3.750 | .750-7.750 | 1.00-7.750 | 10 | | | | AL-1-10-2 | MC-10200A3 | SC-0001055A | 2 | 2 | 1.5 | 4.687 | 4.750 | .750-9.750 | 1.00-9.750 | 6.5 | | | | AL-1-10-3 | MC-10300A3 | SC-0001056A | CO | 2 | 1.5 | 4.687 | 4.750 | .750-9.750 | 1.00-9.750 | CO | | | | AL-1-10-4 | MC-10400A3 | SC-0001057A | 4 | 2 | 1.5 | 4.687 | 4.750 | .750-9.750 | 100-9.750 | 10 | | | | AL-1-12-3 | | SC-0001058A | CO | 2 | — | 5.687 | | .750-11.750 | 1.00-11.750 | 11 | | | | 2 2 Pins 3 3 Pins 5 5 Pins | | | | | | | | | | | | | | | | | | |
| | | |
| | | Specify 1/4- or 5/8-inch center hole | | |
| | | |
| | | 19 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
