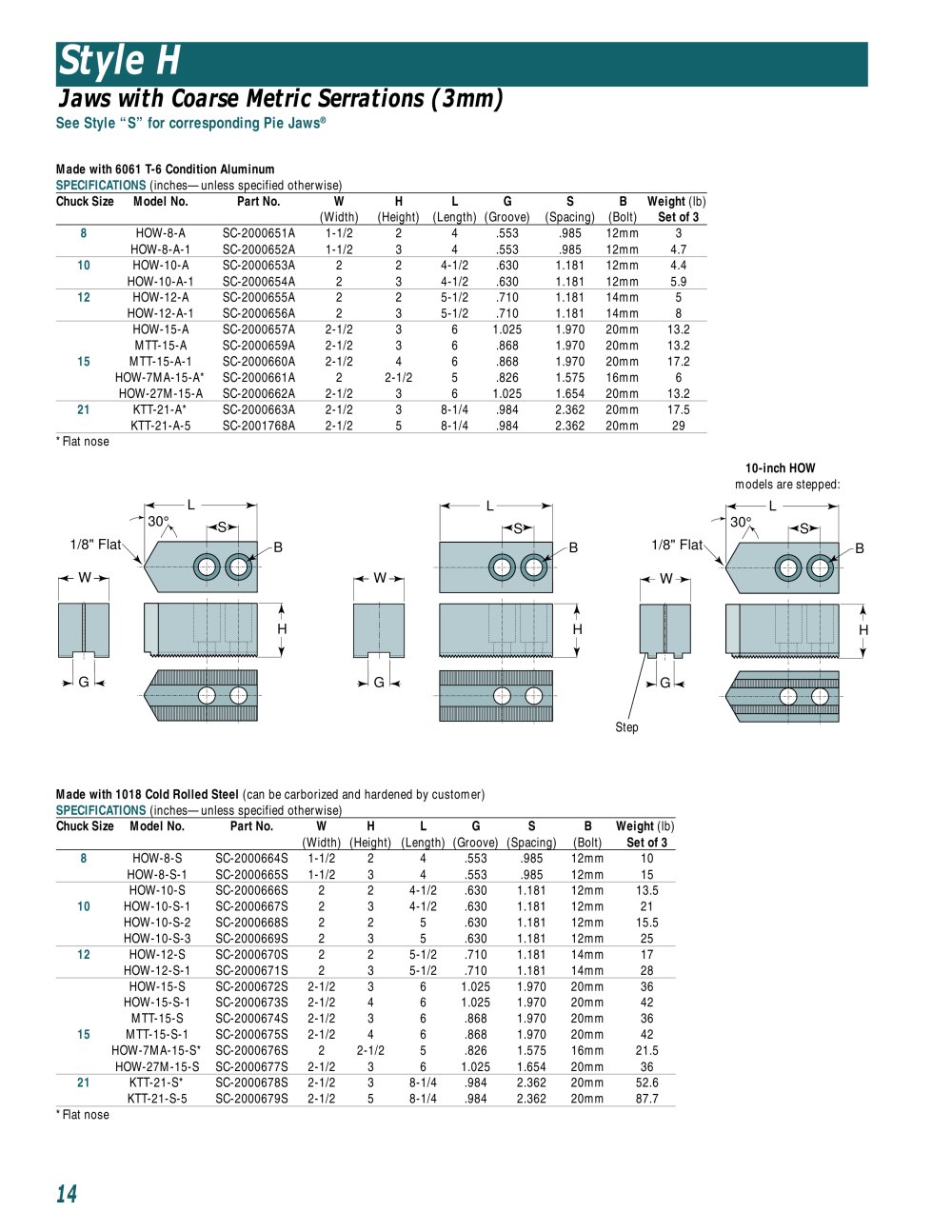

Style H

Jaws with Coarse Metric Serrations (3mm)

See Style "S" for corresponding Pie Jaws®

Made with 6061 T-6 Condition Aluminum


	Chuck Size	Model No.	Part No.	W	H	L	G	S	В	Weight (lb)
				(Width)	(Height)	(Length) (Groove)		(Spacing)	(Bolt)	Set of 3
	CO	HOW-8-A	SC-2000651A	1-1/2	2	4	.553	.985	12mm	3
		HOW-8-A-1	SC-2000652A	1-1/2	CO	4	.553	.985	12mm	4.7
	10	HOW-10-A	SC-2000653A	2	2	4-1/2	.630	1.181	12mm	4.4
		HOW-10-A-1	SC-2000654A	2	3	4-1/2	.630	1.181	12mm	5.9
	12	HOW-12-A	SC-2000655A	2	2	5-1/2	.710	1.181	14mm	5
		HOW-12-A-1	SC-2000656A	2	3	5-1/2	.710	1.181	14mm	8
		HOW-15-A	SC-2000657A	2-1/2	3	6	1.025	1.970	20mm	13.2
		MTT-15-A	SC-2000659A	2-1/2	3	6	.868	1.970	20mm	13.2
	15	MTT-15-A-1	SC-2000660A	2-1/2	4	6	.868	1.970	20mm	17.2
		HOW-7MA-15-A*	SC-2000661A	2	2-1/2	5	.826	1.575	16mm	6
		HOW-27M-15-A	SC-2000662A	2-1/2	3	6	1.025	1.654	20mm	13.2
	21	KTT-21-A*	SC-2000663A	2-1/2	3	8-1/4	.984	2.362	20mm	17.5
		KTT-21-A-5	SC-2001768A	2-1/2	5	8-1/4	.984	2.362	20mm	29
	* Flat nose
		Г*-L	-*-			-<-	L-	->-

10-inch HOW

models are stepped:

L

1/8" Flat

1/8" Flat

W-

■ W-

1 H

H

L

О Q

OQ

I

Made with 1018 Cold Rolled Steel (can becarborized and hardened by customer) SPECIFICATIONS (inches—unless specified otherwise)_


	Chuck Size Model No.		Part No.	w	H	L	G	CO	В	Weight (lb)
				(Width) (Height)		(Length) (Groove)		(Spacing)	(Bolt)	Set of 3
	CO	HOW-8-S	SC-2000664S	1-1/2	2	4	.553	.985	12mm	10
		HOW-8-S-1	SC-2000665S	1-1/2	3	4	.553	.985	12mm	15
		HOW-10-S	SC-2000666S	2	2	4-1/2	.630	1.181	12mm	13.5
	10	HOW-10-S-1	SC-2000667S	2	3	4-1/2	.630	1.181	12mm	21
		HOW-10-S-2	SC-2000668S	2	2	5	.630	1.181	12mm	15.5
		HOW-10-S-3	SC-2000669S	2	3	5	.630	1.181	12mm	25
	12	HOW-12-S	SC-2000670S	2	2	5-1/2	.710	1.181	14mm	17
		HOW-12-S-1	SC-2000671S	2	CO	5-1/2	.710	1.181	14mm	28
		HOW-15-S	SC-2000672S	2-1/2	CO	6	1.025	1.970	20mm	36
		HOW-15-S-1	SC-2000673S	2-1/2	4	6	1.025	1.970	20mm	42
		MTT-15-S	SC-2000674S	2-1/2	CO	6	.868	1.970	20mm	36
	15	MTT-15-S-1	SC-2000675S	2-1/2	4	6	.868	1.970	20mm	42
		HOW-7MA-15-S*	SC-2000676S	2	2-1/2	5	.826	1.575	16mm	21.5
		HOW-27M-15-S	SC-2000677S	2-1/2	3	6	1.025	1.654	20mm	36
	21	KTT-21-S*	SC-2000678S	2-1/2	3	8-1/4	.984	2.362	20mm	52.6
		KTT-21-S-5	SC-2000679S	2-1/2	LO	8-1/4	.984	2.362	20mm	87.7

* Flat nose

14
