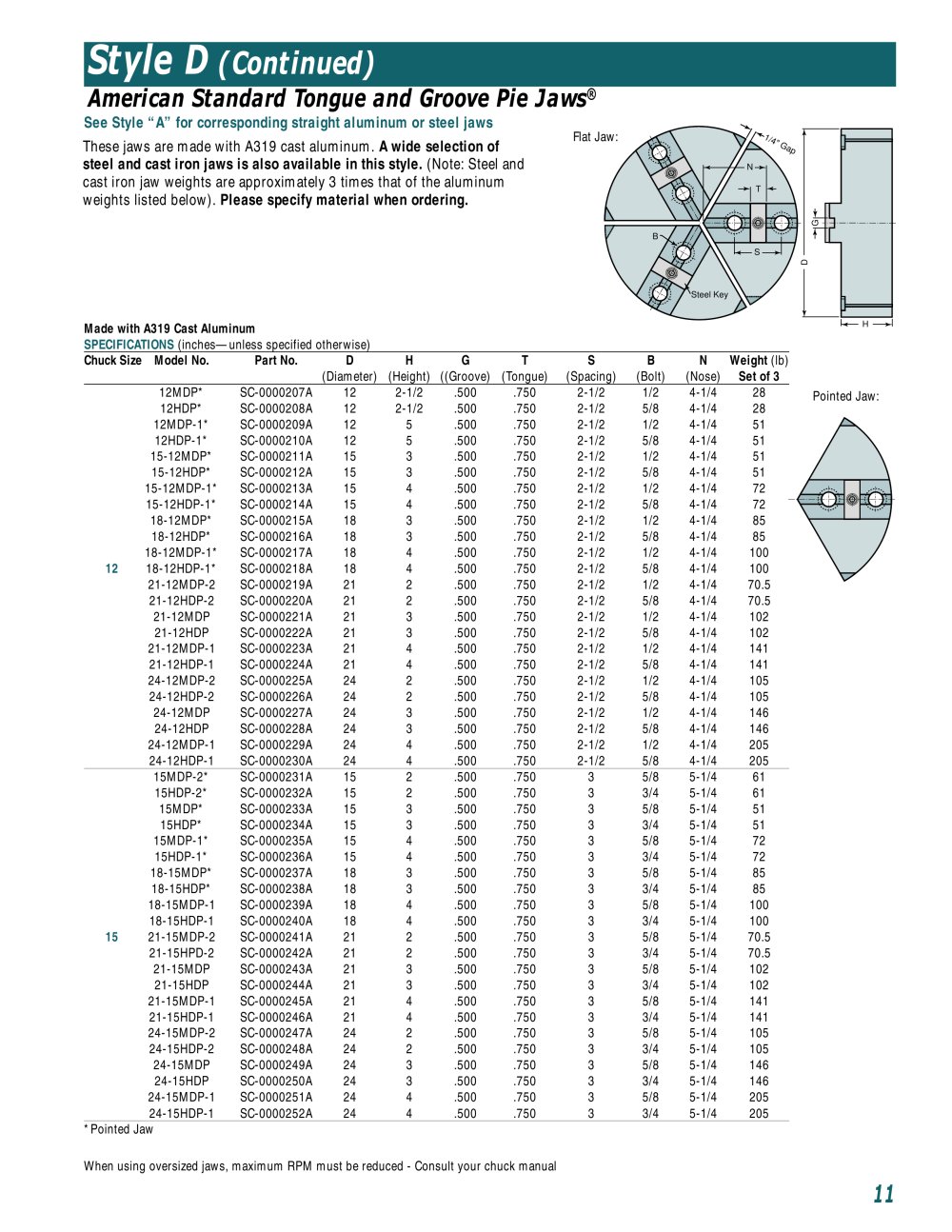

Style D( Continued)

American Standard Tongue and Groove Re Jaw^

See Style "A" for corresponding straight aluminum or steel jaws

These jaws are made with A319 cast aluminum. A wide selection of steel and cast iron jaws is also available in this style. (Note: Steel and cast iron jaw weights are approximately 3 times that of the aluminum weights listed below). Please specify material when ordering.

Made with A319 Cast Aluminum SPECIFICATIONS (inches—unless specified otherwise)


Chuck Size Model No.	Part No.	D	H	G	T	S	B	N	Weight (lb)
		(Diameter)	(Height)	((Groove)	(Tongue)	(Spacing)	(Bolt)	(Nose)	Set of 3
12MDP*	SC-0000207A	12	2-1/2	.500	.750	2-1/2	1/2	4-1/4	28
12HDP*	SC-0000208A	12	2-1/2	.500	.750	2-1/2	5/8	4-1/4	28
12MDP-1*	SC-0000209A	12	5	.500	.750	2-1/2	1/2	4-1/4	51
12HDP-1*	SC-0000210A	12	5	.500	.750	2-1/2	5/8	4-1/4	51
15-12MDP*	SC-0000211A	15	3	.500	.750	2-1/2	1/2	4-1/4	51
15-12HDP*	SC-0000212A	15	3	.500	.750	2-1/2	5/8	4-1/4	51
15-12MDP-1*	SC-0000213A	15	4	.500	.750	2-1/2	1/2	4-1/4	72
15-12HDP-1*	SC-0000214A	15	4	.500	.750	2-1/2	5/8	4-1/4	72
18-12MDP*	SC-0000215A	18	3	.500	.750	2-1/2	1/2	4-1/4	85
18-12HDP*	SC-0000216A	18	3	.500	.750	2-1/2	5/8	4-1/4	85
18-12MDP-1*	SC-0000217A	18	4	.500	.750	2-1/2	1/2	4-1/4	100
12 18-12HDP-1*	SC-0000218A	18	4	.500	.750	2-1/2	5/8	4-1/4	100
21-12MDP-2	SC-0000219A	21	2	.500	.750	2-1/2	1/2	4-1/4	70.5
21-12HDP-2	SC-0000220A	21	2	.500	.750	2-1/2	5/8	4-1/4	70.5
21-12MDP	SC-0000221A	21	3	.500	.750	2-1/2	1/2	4-1/4	102
21-12HDP	SC-0000222A	21	3	.500	.750	2-1/2	5/8	4-1/4	102
21-12MDP-1	SC-0000223A	21	4	.500	.750	2-1/2	1/2	4-1/4	141
21-12HDP-1	SC-0000224A	21	4	.500	.750	2-1/2	5/8	4-1/4	141
24-12MDP-2	SC-0000225A	24	2	.500	.750	2-1/2	1/2	4-1/4	105
24-12HDP-2	SC-0000226A	24	2	.500	.750	2-1/2	5/8	4-1/4	105
24-12MDP	SC-0000227A	24	3	.500	.750	2-1/2	1/2	4-1/4	146
24-12HDP	SC-0000228A	24	3	.500	.750	2-1/2	5/8	4-1/4	146
24-12MDP-1	SC-0000229A	24	4	.500	.750	2-1/2	1/2	4-1/4	205
24-12HDP-1	SC-0000230A	24	4	.500	.750	2-1/2	5/8	4-1/4	205
15MDP-2*	SC-0000231A	15	2	.500	.750	CO	5/8	5-1/4	61
15HDP-2*	SC-0000232A	15	2	.500	.750	3	3/4	5-1/4	61
15MDP*	SC-0000233A	15	3	.500	.750	3	5/8	5-1/4	51
15HDP*	SC-0000234A	15	3	.500	.750	3	3/4	5-1/4	51
15MDP-1*	SC-0000235A	15	4	.500	.750	3	5/8	5-1/4	72
15HDP-1*	SC-0000236A	15	4	.500	.750	3	3/4	5-1/4	72
18-15MDP*	SC-0000237A	18	3	.500	.750	CO	5/8	5-1/4	85
18-15HDP*	SC-0000238A	18	CO	.500	.750	CO	3/4	5-1/4	85
18-15MDP-1	SC-0000239A	18	4	.500	.750	CO	5/8	5-1/4	100
18-15HDP-1	SC-0000240A	18	4	.500	.750	CO	3/4	5-1/4	100
15 21-15MDP-2	SC-0000241A	21	2	.500	.750	CO	5/8	5-1/4	70.5
21-15HPD-2	SC-0000242A	21	CM	.500	.750	CO	3/4	5-1/4	70.5
21-15MDP	SC-0000243A	21	m	.500	.750	CO	5/8	5-1/4	102
21-15HDP	SC-0000244A	21	CO	.500	.750	CO	3/4	5-1/4	102
21-15MDP-1	SC-0000245A	21	4	.500	.750	CO	5/8	5-1/4	141
21-15HDP-1	SC-0000246A	21	4	.500	.750	CO	3/4	5-1/4	141
24-15MDP-2	SC-0000247A	24	2	.500	.750	CO	5/8	5-1/4	105
24-15HDP-2	SC-0000248A	24	2	.500	.750	3	3/4	5-1/4	105
24-15MDP	SC-0000249A	24	CO	.500	.750	3	5/8	5-1/4	146
24-15HDP	SC-0000250A	24	3	.500	.750	3	3/4	5-1/4	146
24-15MDP-1	SC-0000251A	24	4	.500	.750	CO	5/8	5-1/4	205
24-15HDP-1	SC-0000252A	24	4	.500	.750	CO	3/4	5-1/4	205

* Pointed Jaw

When using oversized jaws, maximum RPM must be reduced - Consult your chuck manual
