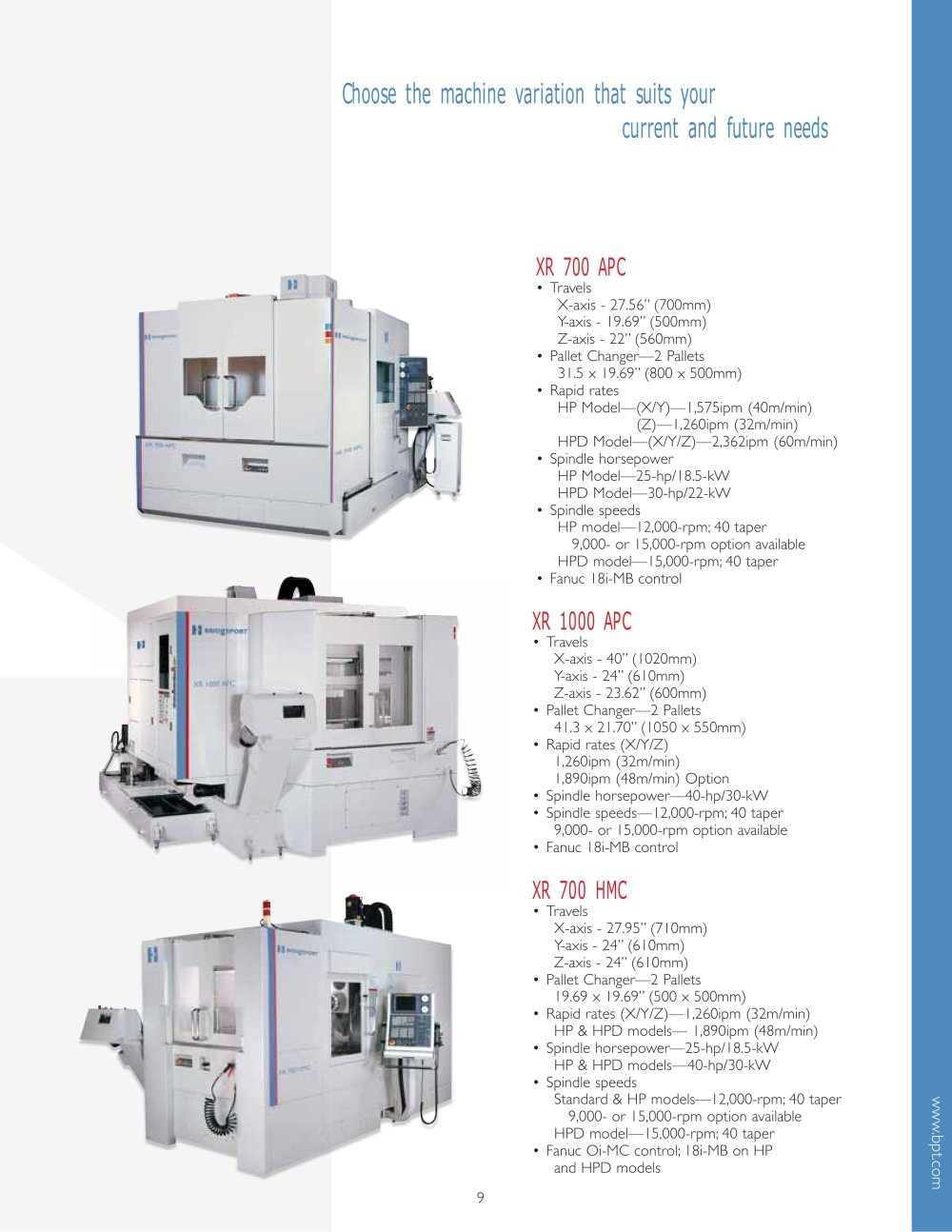

Choose the machine variation that suits your current and future needs

XR 700 APC

• Travels X-axis - 27.56” (700mm) Y-axis - 19.69” (500mm) Z-axis - 22” (560mm) • Pallet Changer—2 Pallets 31.5 x 19.69” (800 x 500mm) • Rapid rates HP Model—(X/Y)—1,575ipm (40m/min) (Z)—1,260ipm (32m/min) HPD Model—(X/Y/Z)—2,362ipm (60m/min) • Spindle horsepower HP Model—25-hp/18.5-kW HPD Model—30-hp/22-kW • Spindle speeds HP model—12,000-rpm; 40 taper 9,000- or 15,000-rpm option available HPD model—15,000-rpm; 40 taper • Fanuc 18i-MB control

XR 1000 APC

• Travels X-axis - 40” (1020mm) Y-axis - 24” (610mm) Z-axis - 23.62” (600mm) • Pallet Changer—2 Pallets 41.3 x 21.70” (1050 x 550mm) • Rapid rates (X/Y/Z) 1,260ipm (32m/min) 1,890ipm (48m/min) Option • Spindle horsepower—40-hp/30-kW • Spindle speeds—12,000-rpm; 40 taper 9,000- or 15,000-rpm option available • Fanuc 18i-MB control

XR 700 HMC

• Travels X-axis - 27.95” (710mm) Y-axis - 24” (610mm) Z-axis - 24” (610mm) • Pallet Changer—2 Pallets 19.69 x 19.69” (500 x 500mm) • Rapid rates (X/Y/Z)—1,260ipm (32m/min) HP & HPD models— 1,890ipm (48m/min) • Spindle horsepower—25-hp/18.5-kW HP & HPD models—40-hp/30-kW • Spindle speeds Standard & HP models—12,000-rpm; 40 taper 9,000- or 15,000-rpm option available HPD model—15,000-rpm; 40 taper • Fanuc Oi-MC control; 18i-MB on HP and HPD models
