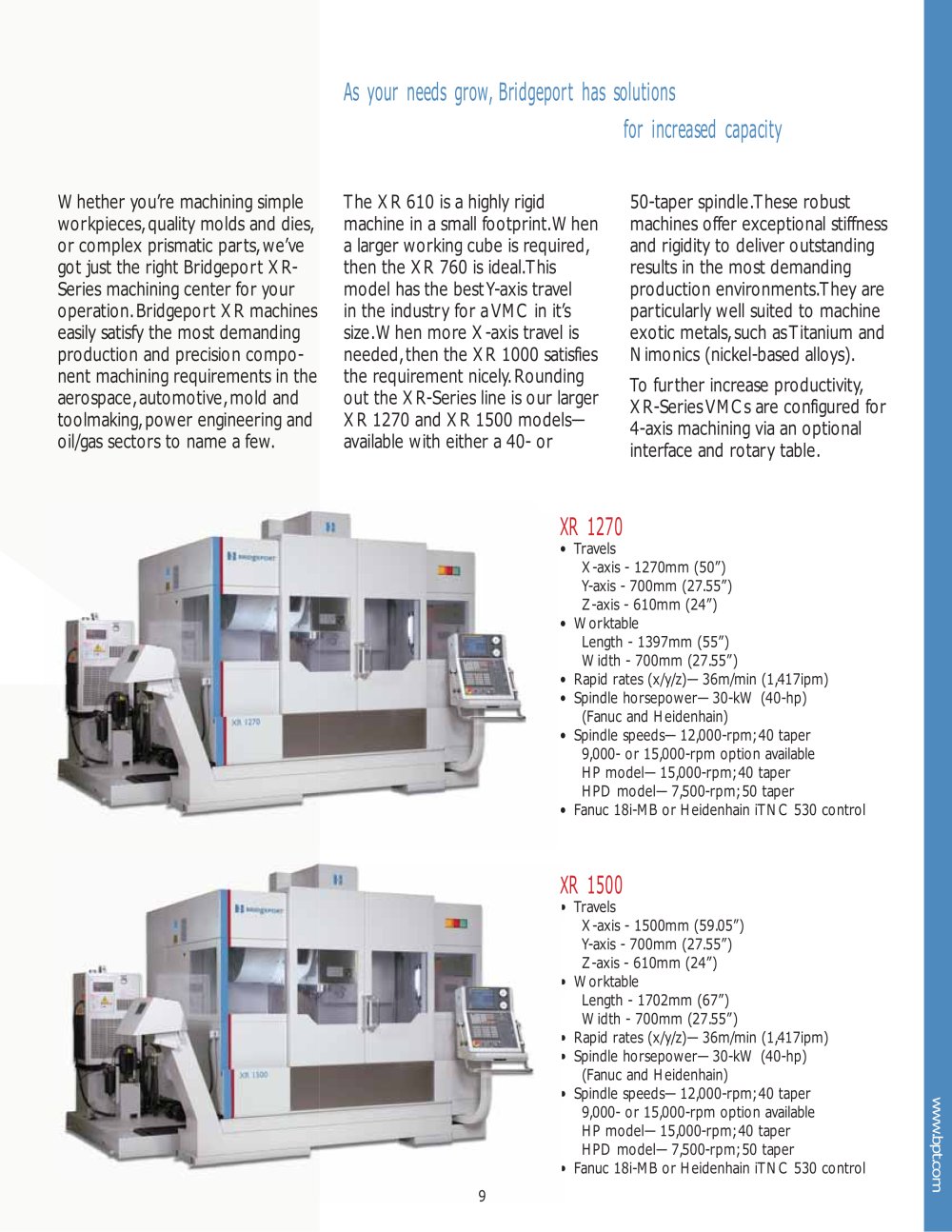

As your needs grow, Bridgeport has solutions for increased capacity

Whether you’re machining simple workpieces, quality molds and dies, or complex prismatic parts, we’ve got just the right Bridgeport XR- Series machining center for your operation. Bridgeport XR machines easily satisfy the most demanding production and precision compo- nent machining requirements in the aerospace, automotive, mold and toolmaking, power engineering and oil/gas sectors to name a few. The XR 610 is a highly rigid machine in a small footprint. When a larger working cube is required, then the XR 760 is ideal. This model has the best Y-axis travel in the industry for a VMC in it’s size. When more X-axis travel is needed, then the XR 1000 satisfies the requirement nicely. Rounding out the XR-Series line is our larger XR 1270 and XR 1500 models— available with either a 40- or 50-taper spindle. These robust machines offer exceptional stiffness and rigidity to deliver outstanding results in the most demanding production environments. They are particularly well suited to machine exotic metals, such as Titanium and Nimonics (nickel-based alloys).To further increase productivity, XR-Series VMCs are configured for 4-axis machining via an optional interface and rotary table.

XR 1270

? Travels X-axis - 1270mm (50”) Y-axis - 700mm (27.55”) Z-axis - 610mm (24”) ? Worktable Length - 1397mm (55”) Width - 700mm (27.55”) ? Rapid rates (x/y/z)—36m/min (1,417ipm) ? Spindle horsepower—30-kW (40-hp) (Fanuc and Heidenhain) ? Spindle speeds—12,000-rpm; 40 taper 9,000- or 15,000-rpm option available HP model—15,000-rpm; 40 taper HPD model—7,500-rpm; 50 taper ? Fanuc 18i-MB or Heidenhain iTNC 530 control

XR 1500

? Travels X-axis - 1500mm (59.05”) Y-axis - 700mm (27.55”) Z-axis - 610mm (24”) ? Worktable Length - 1702mm (67”) Width - 700mm (27.55”) ? Rapid rates (x/y/z)—36m/min (1,417ipm) ? Spindle horsepower—30-kW (40-hp) (Fanuc and Heidenhain) ? Spindle speeds—12,000-rpm; 40 taper 9,000- or 15,000-rpm option available HP model—15,000-rpm; 40 taper HPD model—7,500-rpm; 50 taper ? Fanuc 18i-MB or Heidenhain iTNC 530 control

X

? ? ? ? ?
www.bpt.com ? 9
