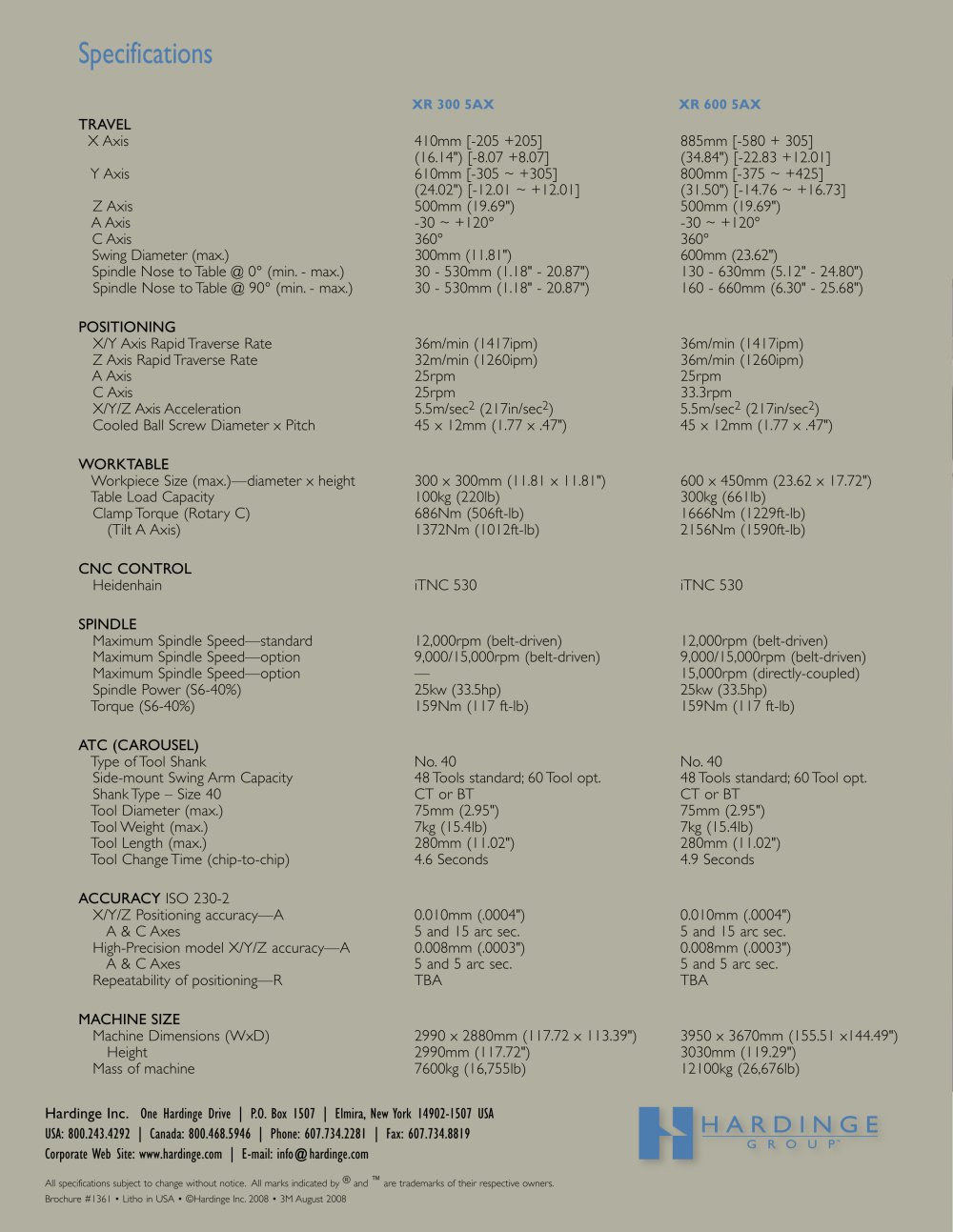

Specifications

XR 300 5AX XR 600 5AX TRAVEL POSITIONING X Axis 410mm [-205 +205] 885mm [-580 + 305] (16.14") [-8.07 +8.07] (34.84") [-22.83 +12.01] Y Axis 610mm [-305 ~ +305] 800mm [-375 ~ +425] (24.02") [-12.01 ~ +12.01] (31.50") [-14.76 ~ +16.73] Z Axis 500mm (19.69") 500mm (19.69") A Axis -30 ~ +120° -30 ~ +120° C Axis 360° 360° Swing Diameter (max.) 300mm (11.81") 600mm (23.62") Spindle Nose to Table @ 0° (min. - max.) 30 - 530mm (1.18" - 20.87") 130 - 630mm (5.12" - 24.80") Spindle Nose to Table @ 90° (min. - max.) 30 - 530mm (1.18" - 20.87") 160 - 660mm (6.30" - 25.68") X/Y Axis Rapid Traverse Rate 36m/min (1417ipm) 36m/min (1417ipm) Z Axis Rapid Traverse Rate 32m/min (1260ipm) 36m/min (1260ipm) A Axis 25rpm 25rpm C Axis 25rpm 33.3rpm X/Y/Z Axis Acceleration 5.5m/sec
2 (217in/sec
2 ) 5.5m/sec
2 (217in/sec
2 ) Cooled Ball Screw Diameter x Pitch 45 x 12mm (1.77 x .47") 45 x 12mm (1.77 x .47") WORKTABLE CNC CONTROL Workpiece Size (max.)—diameter x height 300 x 300mm (11.81 x 11.81") 600 x 450mm (23.62 x 17.72") Table Load Capacity 100kg (220lb) 300kg (661lb) Clamp Torque (Rotary C) 686Nm (506ft-lb) 1666Nm (1229ft-lb) (Tilt A Axis) 1372Nm (1012ft-lb) 2156Nm (1590ft-lb) Heidenhain iTNC 530 iTNC 530 ACCURACY MACHINE SIZE ISO 230-2 X/Y/Z Positioning accuracy—A 0.010mm (.0004") 0.010mm (.0004") A & C Axes 5 and 15 arc sec. 5 and 15 arc sec. High-Precision model X/Y/Z accuracy—A 0.008mm (.0003") 0.008mm (.0003") A & C Axes 5 and 5 arc sec. 5 and 5 arc sec. Repeatability of positioning—R TBA TBA Machine Dimensions (WxD) 2990 x 2880mm (117.72 x 113.39") 3950 x 3670mm (155.51 x144.49") Height 2990mm (117.72") 3030mm (119.29") Mass of machine 7600kg (16,755lb) 12100kg (26,676lb) SPINDLE Maximum Spindle Speed—standard 12,000rpm (belt-driven) 12,000rpm (belt-driven) Maximum Spindle Speed—option 9,000/15,000rpm (belt-driven) 9,000/15,000rpm (belt-driven) Maximum Spindle Speed—option — 15,000rpm (directly-coupled) Spindle Power (S6-40%) 25kw (33.5hp) 25kw (33.5hp) Torque (S6-40%) 159Nm (117 ft-lb) 159Nm (117 ft-lb) ATC (CAROUSEL) Type of Tool Shank No. 40 No. 40 Side-mount Swing Arm Capacity 48 Tools standard; 60 Tool opt. 48 Tools standard; 60 Tool opt. Shank Type – Size 40 CT or BT CT or BT Tool Diameter (max.) 75mm (2.95") 75mm (2.95") Tool Weight (max.) 7kg (15.4lb) 7kg (15.4lb) Tool Length (max.) 280mm (11.02") 280mm (11.02") Tool Change Time (chip-to-chip) 4.6 Seconds 4.9 Seconds Hardinge Inc. One Hardinge Drive | P.O. Box 1507 | Elmira, New York 14902-1507 USAUSA: 800.243.4292 | Canada: 800.468.5946 | Phone: 607.734.2281 | Fax: 607.734.8819 Corporate Web Site: www.hardinge.com | E-mail: info@hardinge.com
All specifications subject to change without notice. All marks indicated by ® and ™ are trademarks of their respective owners. "ROCHURE
