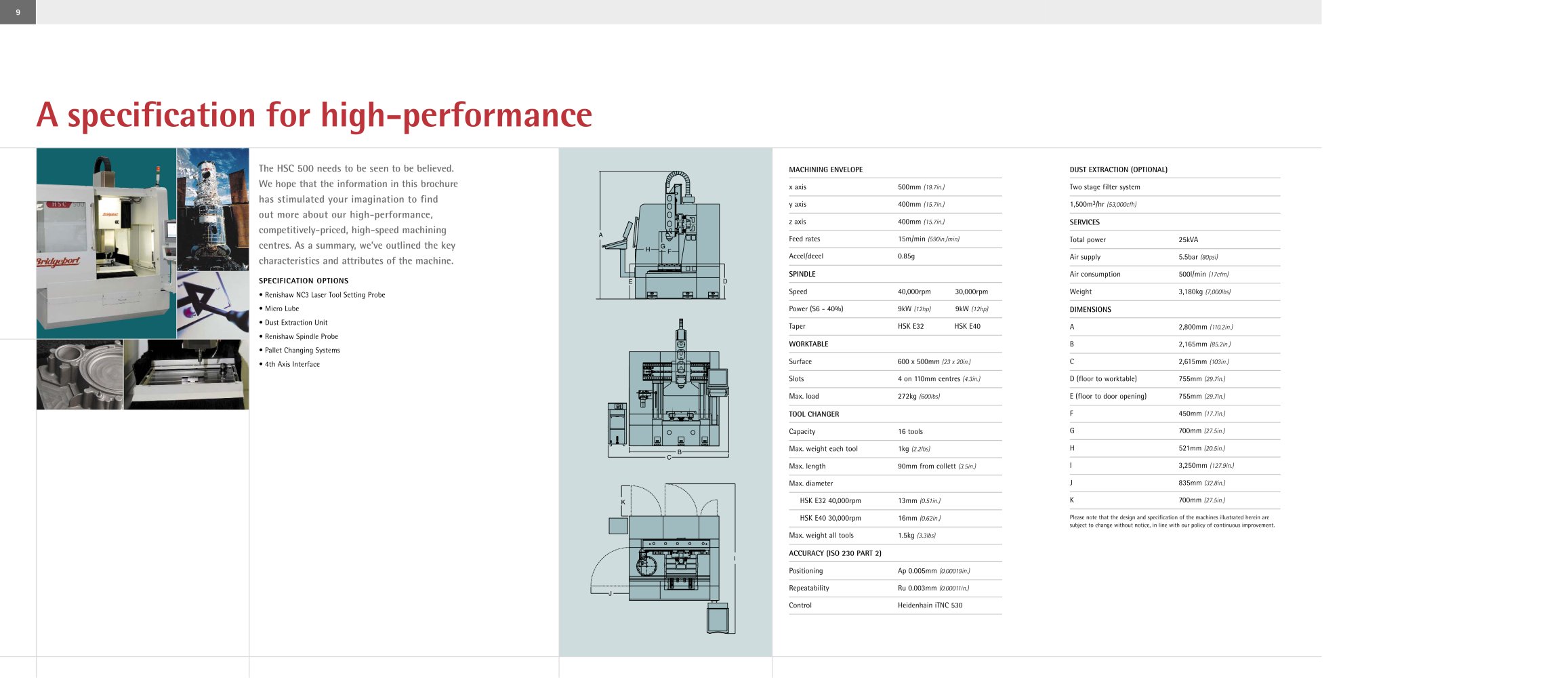

XR 500 HSC (20" x 16" x 16") - 7287 Aspecificationforhigh-performance

The HSC 500 needs to be seen to be believed. We hope that the information in this brochure has stimulated your imagination to find out more about our high-performance, competitively-priced, high-speed machining centres. As a summary, we’ve outlined the key characteristics and attributes of the machine.

MACHINING ENVELOPE DUST EXTRACTION (OPTIONAL) x axis500mm
(19.7in.) Two stage filter system y axis400mm
(15.7in.) 1,500m
3 /hr
(53,000cfh) z axis400mm
(15.7in.) SERVICES Feed rates 15m/min
(590in./min) Total power 25kVA Accel/decel0.85g Air supply5.5bar
(80psi) SPINDLE Air consumption500l/min
(17cfm) SPECIFICATION OPTIONS • Renishaw NC3 Laser Tool Setting Probe • Micro Lube• Dust Extraction Unit • Renishaw Spindle Probe• Pallet Changing Systems • 4th Axis Interface Speed40,000rpm 30,000rpm Weight3,180kg
(7,000lbs) Power (S6 - 40%)9kW
(12hp) 9kW
(12hp) DIMENSIONS TaperHSK E32HSK E40 A2,800mm
(110.2in.) WORKTABLE B2,165mm
(85.2in.) Surface600 x 500mm
(23 x 20in.) C2,615mm
(103in.) Slots4 on 110mm centres
(4.3in.) D (floor to worktable)755mm
(29.7in.) Max. load272kg
(600lbs) E (floor to door opening)755mm
(29.7in.) TOOL CHANGER F450mm
(17.7in.) Capacity16 tools G700mm
(27.5in.) Max. weight each tool1kg
(2.2lbs) H521mm
(20.5in.) Max. length90mm from collett
(3.5in.) I3,250mm
(127.9in.) Max. diameter J835mm
(32.8in.) HSK E32 40,000rpm13mm
(0.51in.) K700mm
(27.5in.) HSK E40 30,000rpm16mm
(0.62in.) Please note that the design and specification of the machines illustrated herein are subject to change without notice, in line with our policy of continuous improvement. Max. weight all tools1.5kg
(3.3lbs) ACCURACY (ISO 230 PART 2) PositioningAp 0.005mm
(0.00019in.) RepeatabilityRu 0.003mm
(0.00011in.) ControlHeidenhain iTNC 530
