Heavy-duty linear guideways, ballscrews and axis drives create the optimum performance characteristics Heavy-duty linear guideways, ballscrews and axis drives

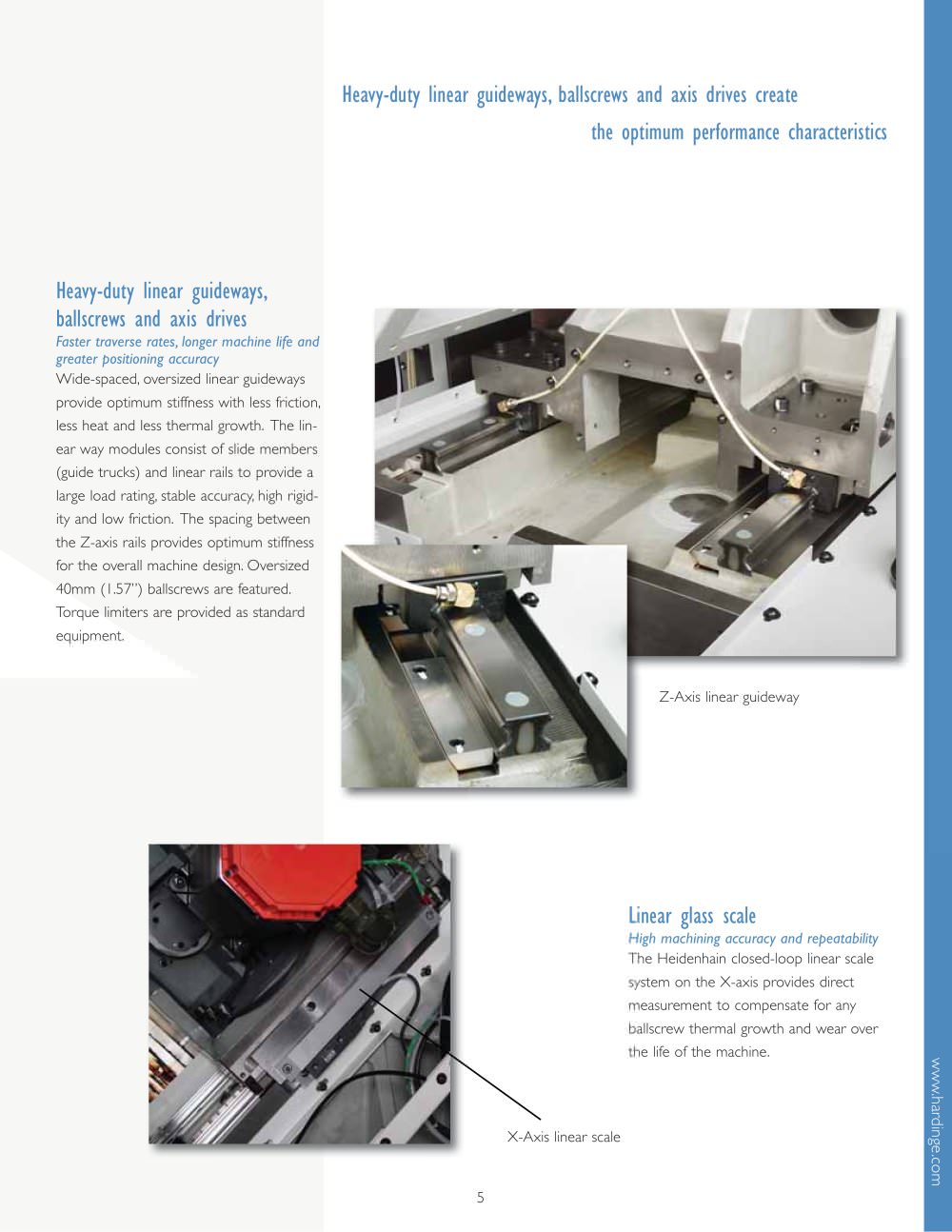

Faster traverse rates, longer machine life and greater positioning accuracy Wide-spaced, oversized linear guideways provide optimum stiffness with less friction, less heat and less thermal growth. The lin- ear way modules consist of slide members (guide trucks) and linear rails to provide a large load rating, stable accuracy, high rigid- ity and low friction. The spacing between the Z-axis rails provides optimum stiffness for the overall machine design. Oversized 40mm (1.57”) ballscrews are featured. Torque limiters are provided as standard equipment. Z-Axis linear guideway

Linear glass scale

High machining accuracy and repeatability The Heidenhain closed-loop linear scale system on the X-axis provides direct measurement to compensate for any ballscrew thermal growth and wear over the life of the machine.5
www.hardinge.com X-Axis linear scale
