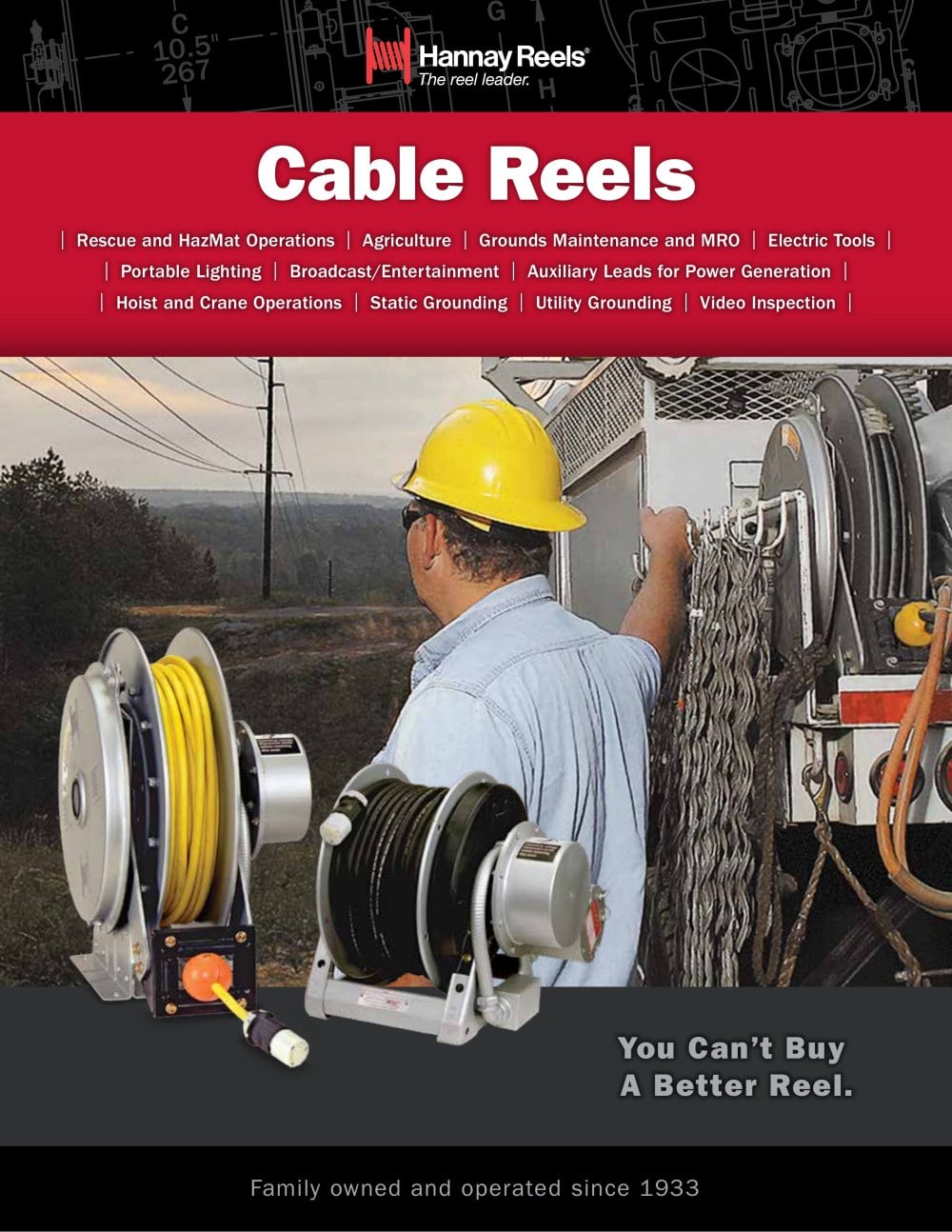

Cable Reels | Rescue and HazMat Operations | Agriculture | Grounds Maintenance and MRO | Electric Tools | | Portable Lighting | Broadcast/Entertainment | Auxiliary Leads for Power Generation | | Hoist and Crane Operations | Static Grounding | Utility Grounding | Video Inspection | You Can’t Buy A Better Reel. Family owned and operated since 1933

CABLE REELS Reel Type Page Manual or Power Rewind Reels Series C - Storage Only 3 Series C1500 - Storage Only 4 Series C3200 - Storage Only 5 Spring Rewind Reels Series NSCR700/SCR700 8-9 Portable Reels Model LC16-10-11/Series CR 11 Model C16-10-11/C20-14-16 - Storage Only 12 Model C1150/ATC1250 - Storage Only 14 Custom Engineering Cable Reels and Spools 15 Grounding Reels Static Grounding Reels - Series GR/HGR 16-17 Utility Grounding Reels 18 Cable Reel Spec Worksheet 19 You Can’t Buy A Better Reel. No matter what your industry, you need cable reels that improve efficiency, productivity,...

STORAGE REELS: MANUAL OR POWER REWIND To handle 3/4” through 1” O.D. cable. For storage only. No live connections. • Heavy-duty reels. • 4-1/2" x 9" (114 mm x 229 mm) opening in the drum. • Many optional configurations available. • Gear-driven crank rewind; or chain and sprocket drive powered by electric, compressed air or hydraulic motor. • Auxiliary crank rewind is available on power reels. • Crank rewind reels supplied with pinion brake. • Power rewind standard with a comet brake. • Consult factory for other brakes and locking devices. • Rollers and roller mounting brackets are accessory...

STORAGE REELS: MANUAL OR POWER REWIND To handle 1/4" through 1" O.D. For storage only. No live connections. • Reels are designed for storage of long lengths of cable, hose, rope, wire or other materials. • A 1-1/8" x 2-3/8" (28 mm x 60 mm) opening in the drum to initiate winding. • Direct crank rewind, permanently attached. Removable crank option is available. Also available is a chain and sprocket rewind powered by electric, compressed air or hydraulic motor. • Supplied with cam-lock brake on manual rewind models only. • Optional divider discs can be placed at almost any point. Be sure to...

STORAGE REELS: MANUAL REWIND To handle 1/2" through 1" O.D. For storage only. No live connections. • A 4-1/2" x 9" (114mm x 229mm) opening in the drum to initiate winding. • Designed for storage of long lengths of cable, hose, rope, wire or other materials. • Choose disc rewind or removable direct crank rewind. • Supplied with spring actuated pin lock. • Optional divider discs can be placed at almost any point. Be sure to specify spacing of discs on your order. • Rollers and roller mounting brackets are accessory items. Specify roller position. • For power rewind, see Series C on page 3....

LIVE REELS: MANUAL OR POWER REWIND To handle live electric cable. • -conductor, 45-amp, 600-volt collector assembly with #8 gauge wiring. 3 • ouble brushes per circuit. Brushes are copper graphite, copper alloy rings. D • dditional con uctors or higher amperage (up to 100 amps) are available A d at extra cost, must be specified. (300 amps possible with custom design.) • ilver collector assemblies are available. S • ollers and roller mounting brackets are accessory items. Specify roller position. R R • emovable direct crank rewind. • Optional strap brake is available. • djustable cam-lock...

LIVE REELS: MANUAL OR POWER REWIND Series CR1600 (Manual Rewind) Series CR6600 Net lbs/kg Ship lbs/kg Electric (1/3 HP) 18/8.2 18/8.2 5. When ordering power rewind models, prefix model number with: A = Air Rewind -Supplied with control valve and 18" air hose. E = Electric Rewind - (1/3 HP) (Series CR1600 & CR6600) EP = Electric Rewind - (1/2 HP) (Series CR6600) 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately. HD = Hydraulic Rewind -Not supplied with control valve. 6. Add 2-1/8" to “A”...

LIVE REELS: SPRING REWIND Series NSCR700/SCR700 To handle live electric cable. • eavy-duty spring motor. H • on-sparking ratchet. N • eclutching arbor. D • onsult factory for constant tension applications. C • -conductor, 45-amp, 600-volt collector assembly 3 with #8 gauge wiring. • ouble brushes per circuit. Brushes are copper graphite D with copper alloy rings. • dditional con uctors or higher amperage A d (up to 300-amps) available; consult factory. • ilver collector available. S S • upplied with a 4-way roller assembly. Roller position must be specified. • cable stop should be used. A •...

LIVE REELS: SPRING REWIND Series NSCR700/SCR700 PARTS DRAWING - SERIES NSCR700 - ISO 164; SERIES SCR700 - ISO 49 Cable Capacity of Reel feet m Approx. Weight lb. kg Notes: 1. Specifications subject to change. 2. For reels with 4-conductor, 45-amp collector assemblies, add 2" to “F” dimension. 3. Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult factory. 4. Other sizes from standard components available upon request. 5. Be sure to check dimensions and weights prior to ordering. 6. Roller assembly is supplied on standard models. ***X,...

LIVE REELS: SPRING REWIND To handle live electric cable. • eavy-duty spring motor. H • on-sparking ratchet assembly. N • eclutching arbor. D • -conductor, 30-amp collector ring. 3 • foot power source lead with 6 15-amp, 3-prong straight blade plug (optional twist lock is available). • able stop should be used. C Optional Roller Mounting Bracket Standard configuration shown F PARTS DRAWING – ISO 46 Cable Capacity of Reel feet m Model Number 1. Specifications subject to change. 2. Be sure to check dimensions and weights prior to ordering. * hen shipped as a parcel package (via FedEx or UPS...
