Portable Meters ISE/pH

HI 98180-HI 98185

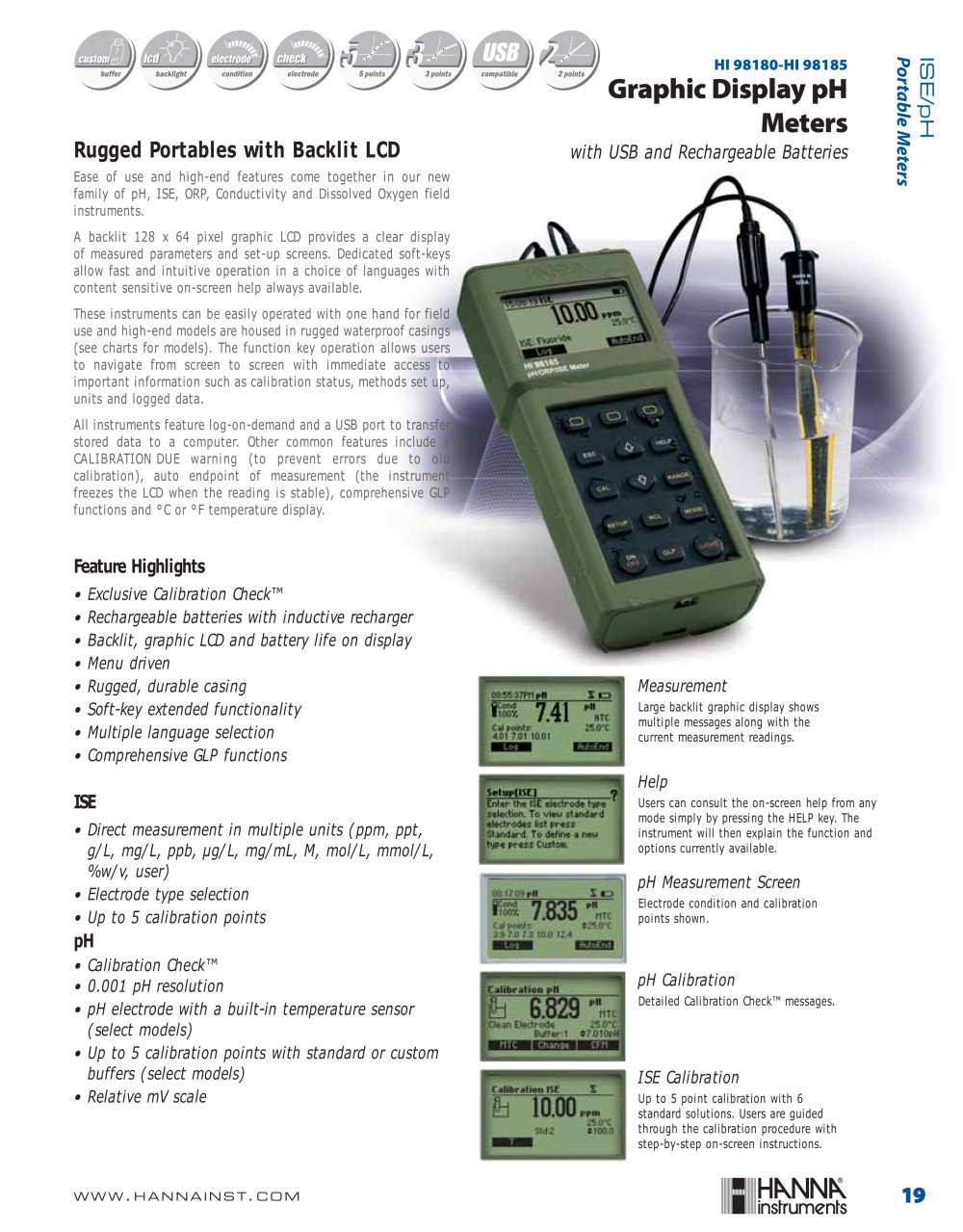

Laboratory Catalog - 9073 Graphic Display pHMeters

Rugged Portables with Backlit LCD

with USB and Rechargeable Batteries

Ease of use and high-end features come together in our new family of pH, ISE, ORP, Conductivity and Dissolved Oxygen field instruments. A backlit 128 x 64 pixel graphic LCD provides a clear display of measured parameters and set-up screens. Dedicated soft-keys allow fast and intuitive operation in a choice of languages with content sensitive on-screen help always available. These instruments can be easily operated with one hand for field use and high-end models are housed in rugged waterproof casings (see charts for models). The function key operation allows users to navigate from screen to screen with immediate access to important information such as calibration status, methods set up, units and logged data. All instruments feature log-on-demand and a USB port to transfer stored data to a computer. Other common features include a CALIBRATIONDUE warning (to prevent errors due to old calibration), auto endpoint of measurement (the instrument freezes the LCD when the reading is stable), comprehensive GLP functions and °C or °F temperature display.

Feature Highlights

•

Exclusive Calibration Check™

•

Rechargeable batteries with inductive recharger

•

Backlit, graphic LCD and battery life on display

•

Menu driven

•

Rugged, durable casing Measurement

•

Soft-key extended functionality

Large backlit graphic display shows multiple messages along with the current measurement readings. •

Multiple language selection

•

Comprehensive GLP functions Help

ISE

Users can consult the on-screen help from anymode simply by pressing the HELP key. The instrument will then explain the function and options currently available. •

Direct measurement in multiple units (ppm, ppt, g/L, mg/L, ppb, µg/L, mg/mL, M, mol/L, mmol/L, %w/v, user)

•

Electrode type selection pH Measurement Screen

Electrode condition and calibration points shown. •

Up to 5 calibration points

pH

•

Calibration Check™

•

0.001 pH resolution pH Calibration

•

pH electrode with a built-in temperature sensor (select models)

Detailed Calibration Check™ messages. •

Up to 5 calibration points with standard or custom buffers (select models) ISE Calibration

•

Relative mV scale

Up to 5 point calibration with 6 standard solutions. Users are guided through the calibration procedure with step-by-step on-screen instructions. WWW

.
