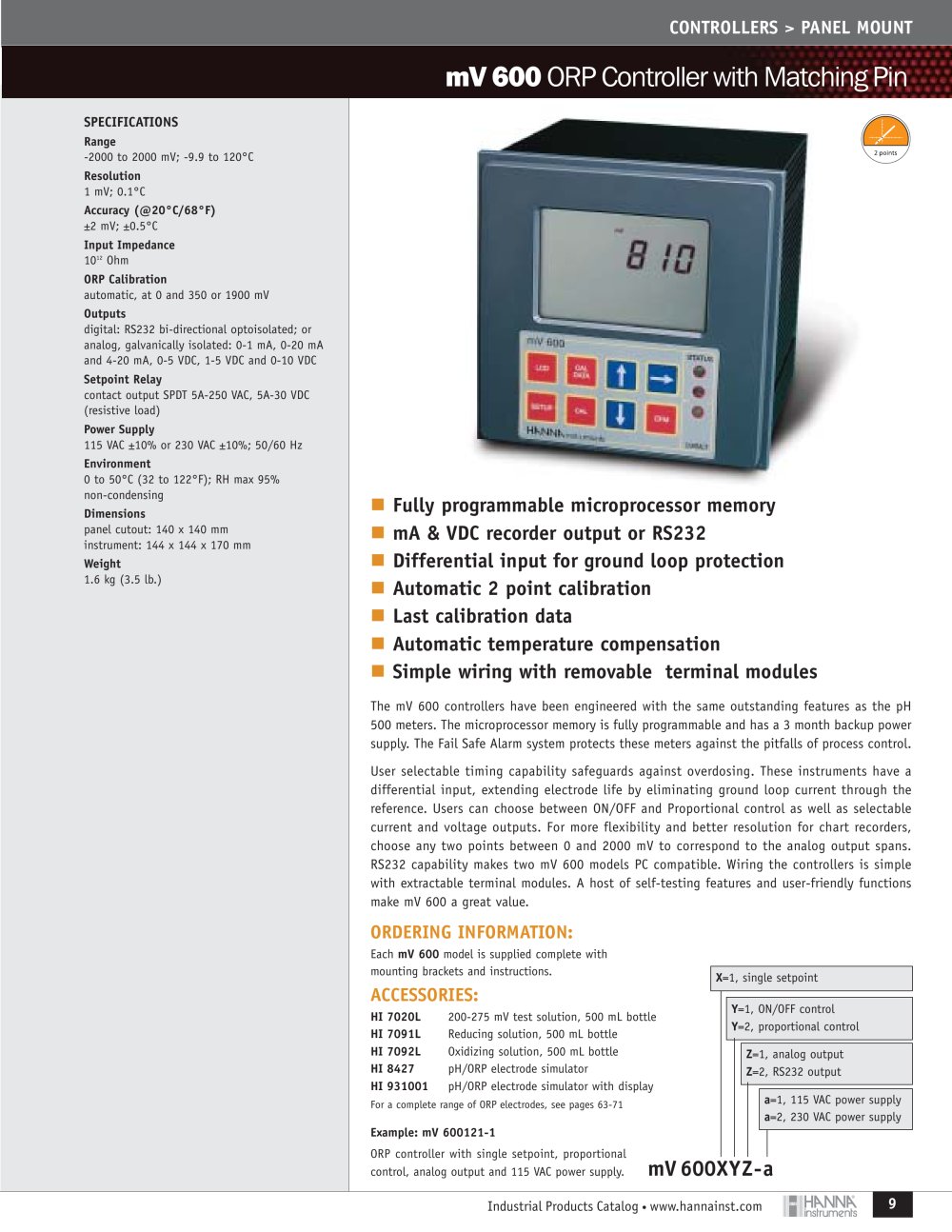

mV 600 ORP Controller with Matching Pin

SPECIFICATIONS

Range -2000 to 2000 mV; -9.9 to 120°C Resolution 1 mV; 0.1°C Accuracy (@20°C/68°F) ±2 mV; ±0.5°C Input Impedance 10
12 Ohm ORP Calibration automatic, at 0 and 350 or 1900 mV Outputs Setpoint Relay digital: RS232 bi-directional optoisolated; or analog, galvanically isolated: 0-1 mA, 0-20 mA and 4-20 mA, 0-5 VDC, 1-5 VDC and 0-10 VDC contact output SPDT 5A-250 VAC, 5A-30 VDC (resistive load) Power Supply 115 VAC ±10% or 230 VAC ±10%; 50/60 Hz Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing Dimensions panel cutout: 140 x 140 mm instrument: 144 x 144 x 170 mm Weight 1.6 kg (3.5 lb.)

Fully programmable microprocessor memory mA & VDC recorder output or RS232 Differential input for ground loop protection Automatic 2 point calibration Last calibration data Automatic temperature compensation Simple wiring with removable terminal modules

The mV 600 controllers have been engineered with the same outstanding features as the pH500 meters. The microprocessor memory is fully programmable and has a 3 month backup powersupply. The Fail Safe Alarm system protects these meters against the pitfalls of process control.User selectable timing capability safeguards against overdosing. These instruments have adifferential input, extending electrode life by eliminating ground loop current through the reference. Users can choose between ON/OFF and Proportional control as well as selectablecurrent and voltage outputs. For more flexibility and better resolution for chart industrial recorders,choose any two points between 0 and 2000 mV to correspond to the analog output spans. RS232 capability makes two mV 600 models PC compatible. Wiring the controllers is simplewith extractable terminal modules. A host of self-testing features and user-friendly functionsmake mV 600 a great value.

ORDERING INFORMATION:

Each mV 600 model is supplied complete withmounting brackets and instructions. X =1, single setpoint

ACCESSORIES:

HI 7020L 200-275 mV test solution, 500 mL bottle Y =1, ON/OFF control HI 7091L Reducing solution, 500 mL bottle Y =2, proportional control HI 7092L Oxidizing solution, 500 mL bottle Z =1, analog output HI 8427 pH/ORP electrode simulator Z =2, RS232 output HI 931001 pH/ORP electrode simulator with display
For a complete range of ORPelectrodes, see pages 63-71 a =1, 115 VAC power supply a =2, 230 VAC power supply Example: mV 600121-1 ORP controller with single setpoint, proportionalcontrol, analog output and 115 VAC power supply.

mV600XYZ-a
