TRANSMITTERS

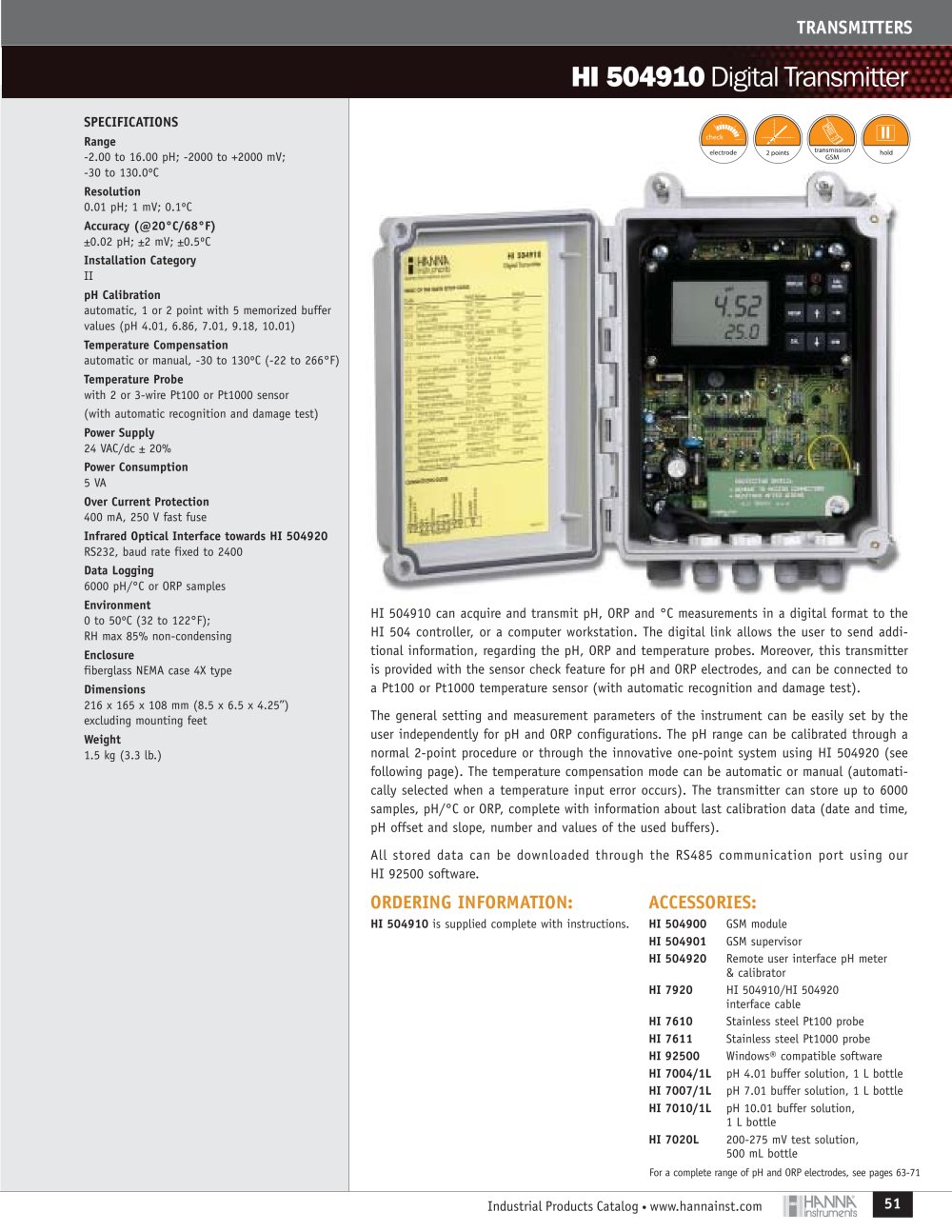

HI504910 Digital Transmitter

SPECIFICATIONS

Range -2.00 to 16.00 pH; -2000 to +2000 mV; -30 to 130.0ºC Resolution 0.01 pH; 1 mV; 0.1ºC Accuracy (@20°C/68°F) ±0.02 pH; ±2 mV; ±0.5ºC Installation Category II pH Calibration automatic, 1 or 2 point with 5 memorized buffer values (pH 4.01, 6.86, 7.01, 9.18, 10.01) Temperature Compensation automatic or manual, -30 to 130ºC (-22 to 266°F) Temperature Probe with 2 or 3-wire Pt100 or Pt1000 sensor(with automatic recognition and damage test) Power Supply 24 VAC/dc ± 20% Power Consumption 5 VA Over Current Protection 400 mA, 250 V fast fuse Infrared Optical Interface towards HI 504920 RS232, baud rate fixed to 2400 Data logging 6000 pH/°C or ORP samples Environment 0 to 50ºC (32 to 122°F); RH max 85% non-condensing Enclosure fiberglass NEMA case 4X type Dimensions 216 x 165 x 108 mm (8.5 x 6.5 x 4.25’’) excluding mounting feet Weight 1.5 kg (3.3 lb.)

HI 504910 can acquire and transmit pH, ORP and °C measurements in a digital format to theHI 504 controller, or a industrial computer workstation. The digital link allows the user to send addi- tional information, regarding the pH, ORP and industrial temperature probes. Moreover, this transmitteris provided with the sensor check feature for pH and ORP electrodes, and can be connected toa Pt100 or Pt1000 temperature sensor manufacturer (with automatic recognition and damage test).The general setting and measurement parameters of the instrument can be easily set by theuser independently for pH and ORP configurations. The pH range can be calibrated through anormal 2-point procedure or through the innovative one-point system using HI 504920 (see following page). The temperature compensation mode can be automatic or manual (automati-cally selected when a temperature input error occurs). The transmitter can store up to 6000samples, pH/°C or ORP, complete with information about last calibration data (date and time, pH offset and slope, number and values of the used buffers). All stored data can be downloaded through the RS485 communication port using ourHI 92500 software.

ORDERING INFORMATION: ACCESSORIES:

HI 504910 is supplied complete with instructions. HI 504900 GSM module HI 504901 GSM supervisor HI 504920 Remote user interface ph meter& calibrator HI 7920 HI 504910/HI 504920interface cable HI 7610 Stainless steel Pt100 probe HI 7611 Stainless steel Pt1000 probe HI 92500 Windows® compatible software HI 7004/1L pH 4.01 buffer solution, 1 L bottle HI 7007/1L pH 7.01 buffer solution, 1 L bottle HI 7010/1L pH 10.01 buffer solution,1 L bottle HI 7020L 200-275 mV test solution,500 mL bottle
For a complete range of pH and ORPelectrodes, see pages 63-71
