MINI CONTROLLERS

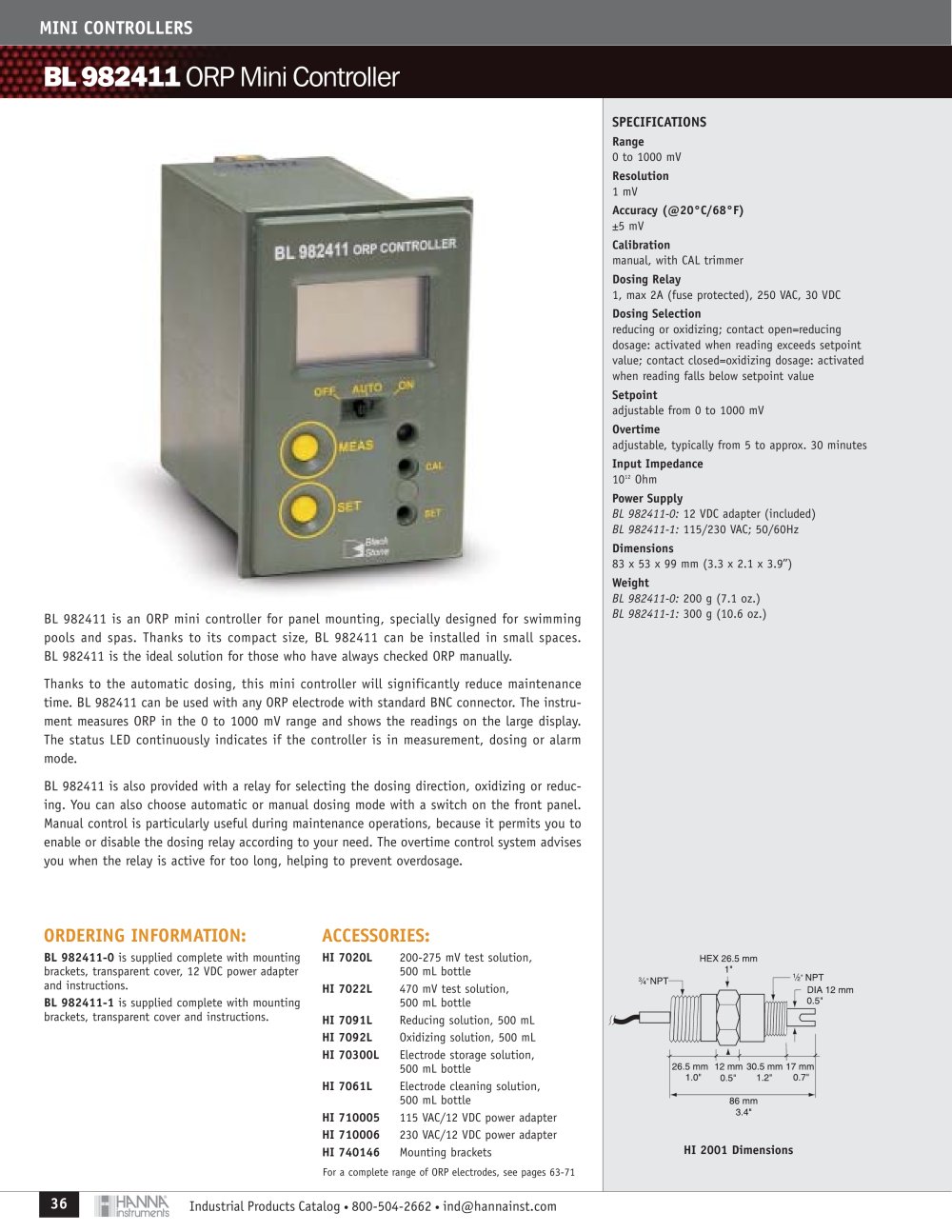

BL 982411 ORP Mini Controller

SPECIFICATIONS

Range 0 to 1000 mV Resolution 1 mV Accuracy (@20°C/68°F) ±5 mV Calibration manual, with CAL trimmer Dosing Relay 1, max 2A (fuse protected), 250 VAC, 30 VDC Setpoint Dosing Selection adjustable from 0 to 1000 mV reducing or oxidizing; contact open=reducing dosage: activated when reading exceeds setpoint value; contact closed=oxidizing dosage: activated when reading falls below setpoint value Overtime adjustable, typically from 5 to approx. 30 minutes Input Impedance 10
12 Ohm Power Supply BL 982411-0: 12 VDC adapter (included) BL 982411-1: 115/230 VAC; 50/60Hz Dimensions 83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’) Weight BL 982411-0: 200 g (7.1 oz.)

BL 982411 is an ORP mini controller for panel mounting, specially designed for swimmingpools and spas. Thanks to its compact size, BL 982411 can be installed in small spaces.BL 982411 is the ideal solution for those who have always checked ORP manually.Thanks to the automatic dosing, this mini controller will significantly reduce maintenancetime. BL 982411 can be used with any ORP electrode with standard BNC connector. The instru-ment measures ORP in the 0 to 1000 mV range and shows the readings on the large display.The status LED continuously indicates if the controller is in measurement, dosing or alarm mode. BL 982411 is also provided with a relay for selecting the dosing direction, oxidizing or reduc-ing. You can also choose automatic or manual dosing mode with a switch on the front panel. Manual control is particularly useful during maintenance operations, because it permits you to enable or disable the dosing relay according to your need. The overtime control system advises you when the relay is active for too long, helping to prevent overdosage.

BL 982411-1: 300 g (10.6 oz.)

ORDERING INFORMATION: ACCESSORIES:

BL 982411-0 is supplied complete with mountingbrackets, transparent cover, 12 VDC power adapter and instructions. HI 7020L 200-275 mV test solution,500 mL bottle BL 982411-1 is supplied complete with mountingbrackets, transparent cover and instructions. HI 7022L 470 mV test solution,500 mL bottle HI 7091L Reducing solution, 500 mL HI 7092L Oxidizing solution, 500 mL HI 70300L Electrode storage solution,500 mL bottle HI 7061L Electrode cleaning solution,500 mL bottle HI 710005 115 VAC/12 VDC power adapter HI 710006 230 VAC/12 VDC power adapter HI 740146 Mounting brackets HI 2001 Dimensions
For a complete range of ORPelectrodes, see pages 63-71
