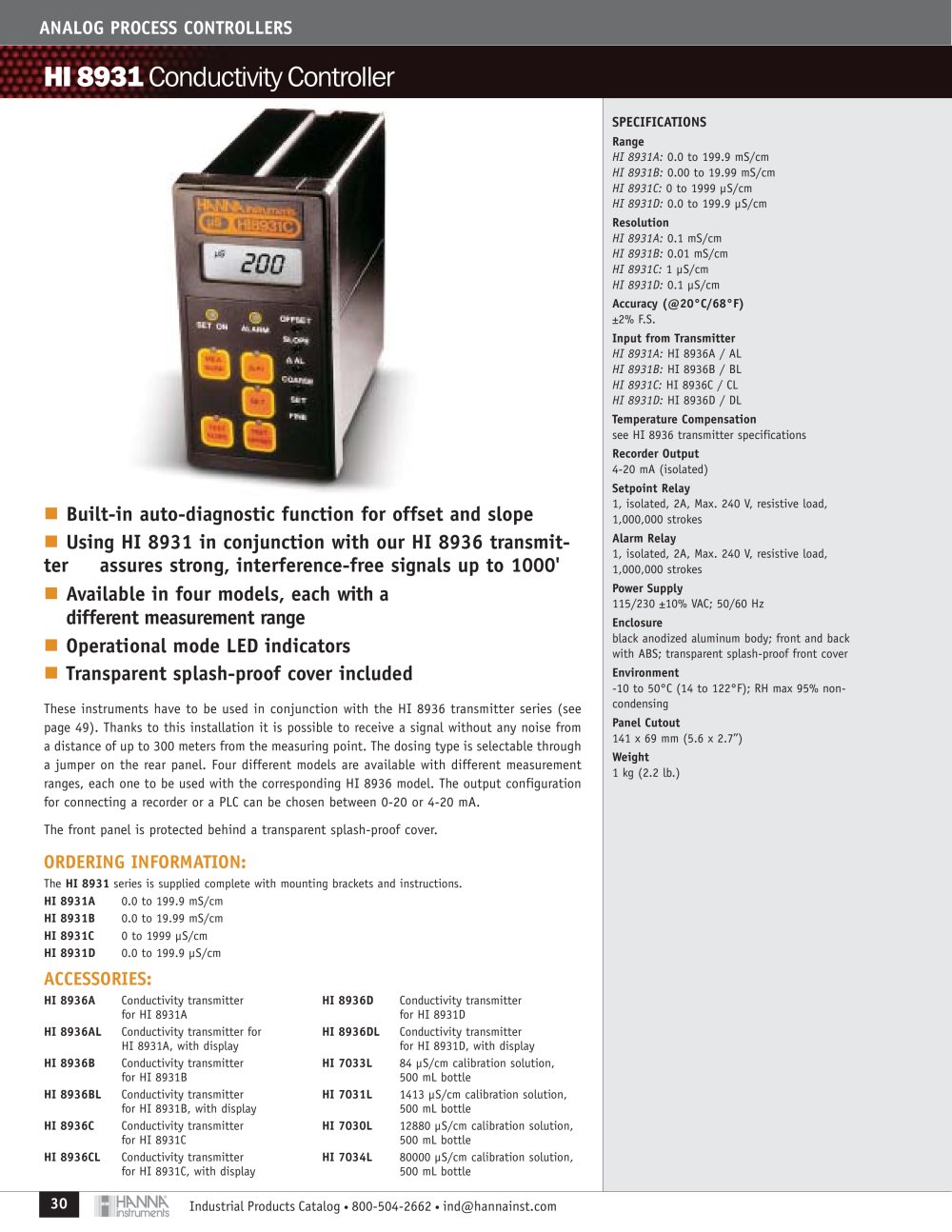

HI 8931 Conductivity Controller
SPECIFICATIONS
Range HI 8931A: 0.0 to 199.9 mS/cm HI 8931B: 0.00 to 19.99 mS/cm HI 8931C: 0 to 1999 µS/cm HI 8931D: 0.0 to 199.9 µS/cm Resolution HI 8931A: 0.1 mS/cm HI 8931B: 0.01 mS/cm HI 8931C: 1 µS/cm HI 8931D: 0.1 µS/cm Accuracy (@20°C/68°F) ±2% F.S. Input from Transmitter HI 8931A: HI 8936A / AL HI 8931B: HI 8936B / BL HI 8931C: HI 8936C / CL HI 8931D: HI 8936D / DL Temperature Compensation see HI 8936 transmitter specifications Recorder Output 4-20 mA (isolated) Setpoint Relay
Built-in auto-diagnostic function for offset and slope
1, isolated, 2A, Max. 240 V, resistive load,
1,000,000 strokes Alarm Relay 1, isolated, 2A, Max. 240 V, resistive load,
1,000,000 strokes Power Supply
Using HI 8931 in conjunction with our HI 8936 transmit-ter assures strong, interference-free signals up to 1000'
115/230 ±10% VAC; 50/60 Hz Enclosure black anodized aluminum body; front and back
with ABS; transparent splash-proof front cover Environment
Available in four models, each with adifferent measurement range
-10 to 50°C (14 to 122°F); RH max 95% non-
condensing Panel Cutout 141 x 69 mm (5.6 x 2.7’’) Weight
Operational mode LED indicators
1 kg (2.2 lb.)
Transparent splash-proof cover included
These instruments have to be used in conjunction with the HI 8936 transmitter series (seepage 49). Thanks to this installation it is possible to receive a signal without any noise froma distance of up to 300 meters from the measuring point. The dosing type is selectable througha jumper on the rear panel. Four different models are available with different measurement
ranges, each one to be used with the corresponding HI 8936 model. The output configurationfor connecting a recorder or a PLC can be chosen between 0-20 or 4-20 mA.The front panel is protected behind a transparent splash-proof cover.
ORDERING INFORMATION:
The HI 8931 series is supplied complete with mounting brackets and instructions. HI 8931A 0.0 to 199.9 mS/cm HI 8931B 0.0 to 19.99 mS/cm HI 8931C 0 to 1999 µS/cm HI 8931D 0.0 to 199.9 µS/cm
ACCESSORIES:
HI 8936A Conductivity transmitterfor HI 8931A HI 8936D Conductivity transmitterfor HI 8931D HI 8936AL Conductivity transmitter forHI 8931A, with display HI 8936DL Conductivity transmitterfor HI 8931D, with display HI 8936B Conductivity transmitterfor HI 8931B HI 7033L 84 µS/cm calibration solution,500 mL bottle HI 8936BL Conductivity transmitterfor HI 8931B, with display HI 7031L 1413 µS/cm calibration solution, 500 mL bottle HI 8936C Conductivity transmitterfor HI 8931C HI 7030L 12880 µS/cm calibration solution, 500 mL bottle HI 8936CL Conductivity transmitterfor HI 8931C, with display HI 7034L 80000 µS/cm calibration solution, 500 mL bottle
