NEW

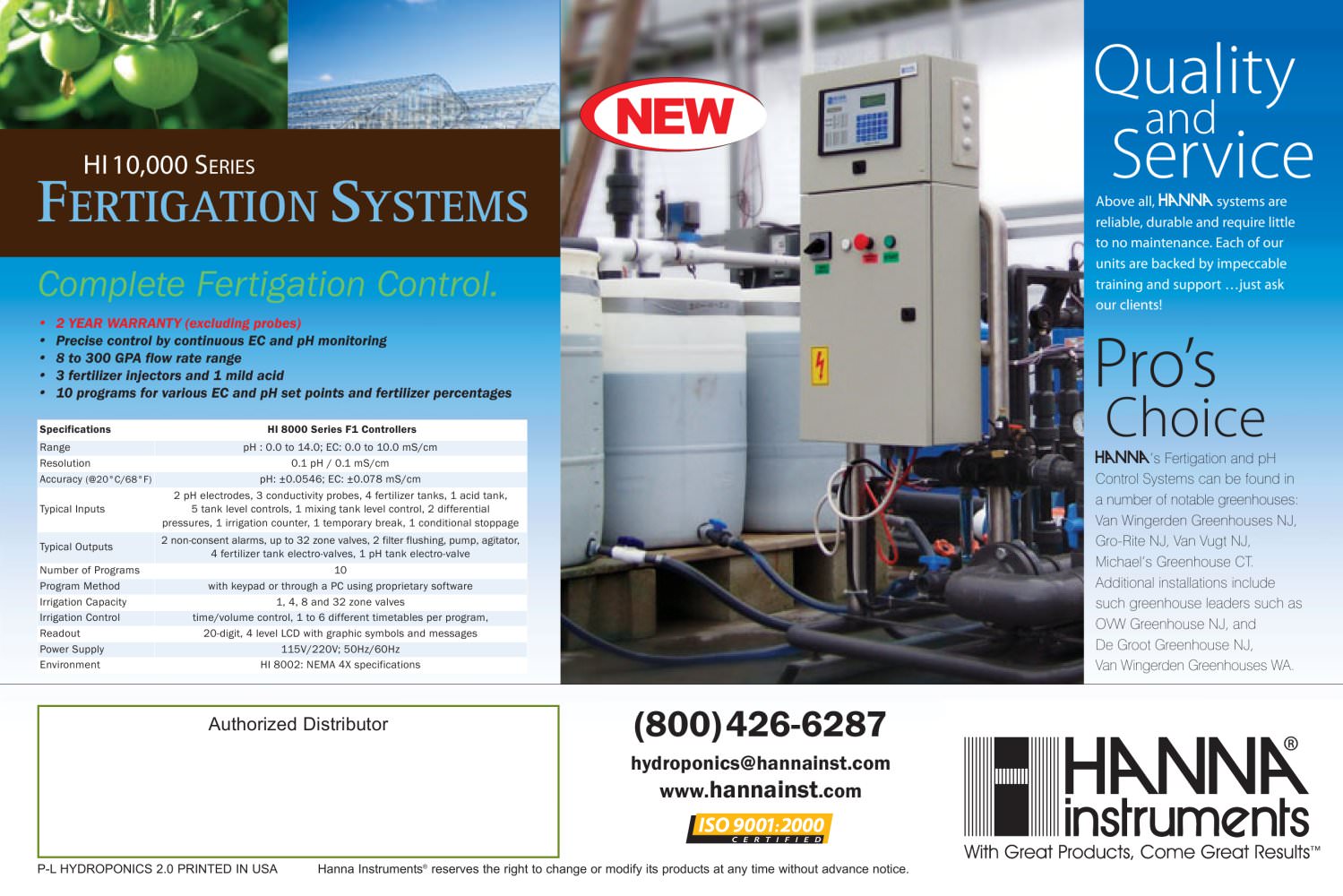

Hydroponics Catalog - 9073 Quality Service

and

HI10,000 S

ERIES

F

ERTIGATION

S

YSTEMS

Above all, HANNA systems arereliable, durable and require little to no maintenance. Each of our units are backed by impeccable training and support …just ask our clients!

Complete Fertigation Control.

• 2 YEAR WARRANTY (excluding probes) • Precise control by continuous EC and pHmonitoring • 8 to 300 GPA flow rate range • 3 fertilizer injectors and 1 mild acid • 10 programs for various EC and pH set points and fertilizer percentages

Specifications HI8000 Series F1 Controllers

Pro’s

Range pH : 0.0 to 14.0; EC: 0.0 to 10.0 mS/cm Resolution 0.1 pH / 0.1 mS/cm

HANNA

Choice

’s Fertigation and pHControl Systems can be found ina number of notable greenhouses: Van Wingerden Greenhouses NJ, Gro-Rite NJ, Van Vugt NJ, Michael’s Greenhouse CT.Additional installations includesuch greenhouse leaders such as OVW Greenhouse NJ, and De Groot Greenhouse NJ, Van Wingerden Greenhouses WA.

Accuracy
(@20°C/68°F) pH: ±0.0546; EC: ±0.078 mS/cm 2 pH electrodes, 3 conductivity probes, 4 fertilizer tanks, 1 acid tank, 5 tank level controls, 1 mixing tank level control, 2 differentialpressures, 1 irrigation counter, 1 temporary break, 1 conditional stoppage Typical Inputs Typical Outputs 2 non-consent alarms, up to 32 zone valves, 2 filter flushing, pump, agitator, 4 fertilizer tank electro-valves, 1 pH tank electro-valve Number of Programs 10 Program Method with keypad or through a PC using proprietary software Irrigation Capacity 1, 4, 8 and 32 zone valves Irrigation Control time/volume control, 1 to 6 different timetables per program, Readout 20-digit, 4 level LCD with graphic symbols and messages Power Supply 115V/220V; 50Hz/60Hz Environment HI 8002: NEMA 4X specifications

Authorized Distributor

(800)426-6287

hydroponics@hannainst.comwww.

hannainst

.com

P-LHYDROPONICS 2.0 PRINTED IN USA Hanna Instruments

®

reserves the right to change or modify its products at any time without advance notice.
