Monitoring & Control

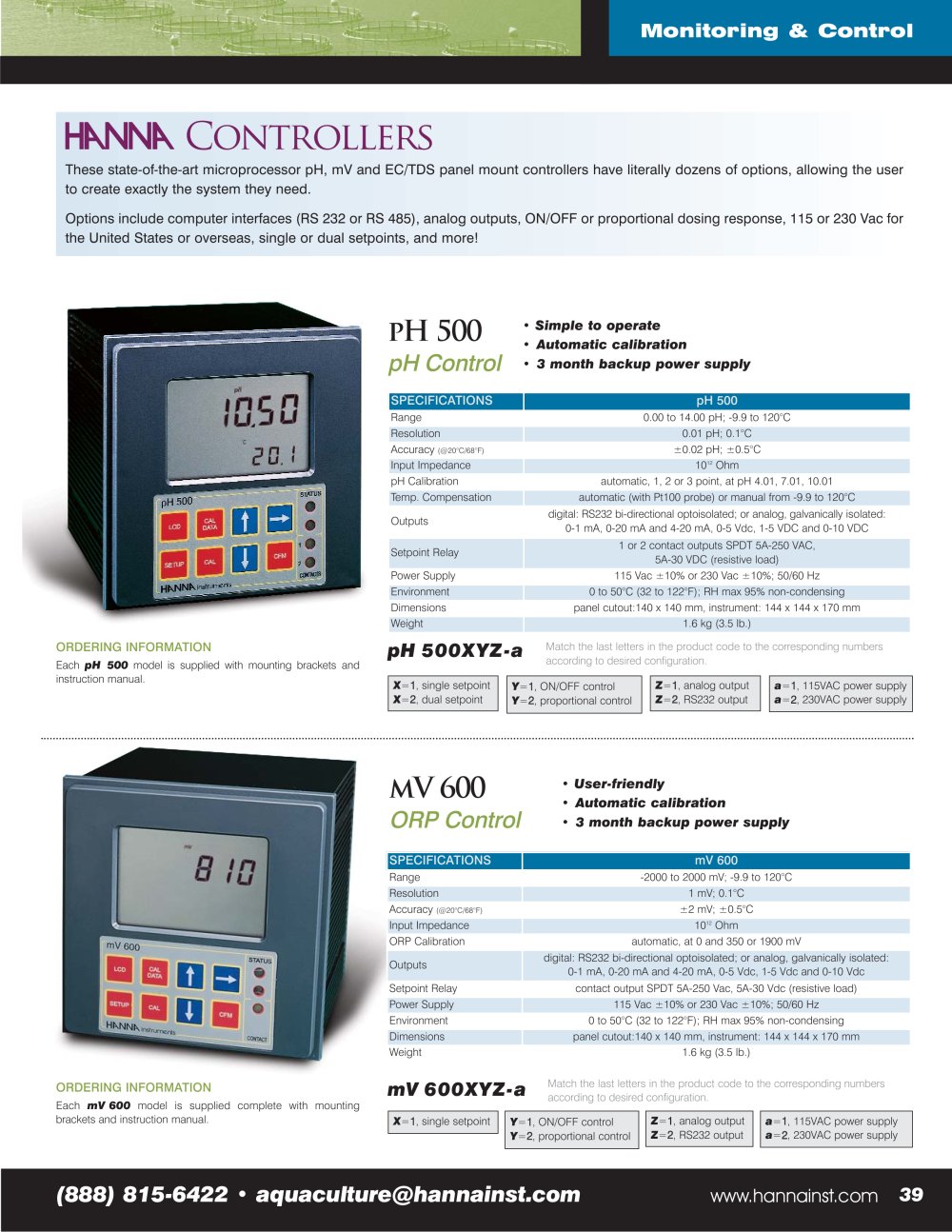

Aquaculture Catalog - 9073 HANNA

These state-of-the-art microprocessor pH, mV and EC/TDS panel mount controllers have literally dozens of options, allowing the userto create exactly the system they need. Options include computer interfaces (RS 232 or RS 485), analog outputs, ON/OFF or proportional dosing response, 115 or 230 Vac forthe United States or overseas, single or dual setpoints, and more!

Controllers

pH 500

• Simple to operate•Automatic calibration •3 month backup power supply

pHControl

SPECIFICATIONS pH 500

Range 0.00 to 14.00 pH; -9.9 to 120°C Resolution 0.01 pH; 0.1°C Accuracy
(@20°C/68°F) ±0.02 pH; ±0.5°C Input Impedance 10
12 Ohm pH Calibration automatic, 1, 2 or 3 point, at pH 4.01, 7.01, 10.01 Temp. Compensation automatic (with Pt100 probe) or manual from -9.9 to 120°C Outputs digital: RS232 bi-directional optoisolated; or analog, galvanicallyisolated: 0-1 mA, 0-20 mA and 4-20 mA, 0-5 Vdc, 1-5 VDC and 0-10 VDC Setpoint Relay 1 or 2 contact outputs SPDT 5A-250 VAC,5A-30 VDC (resistive load) Power Supply 115 Vac ±10% or 230 Vac ±10%; 50/60 Hz Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing Dimensions panel cutout:140 x 140 mm, instrument: 144 x 144 x 170 mm Weight 1.6 kg (3.5 lb.)

ORDERING INFORMATION

Each pH 500 model is supplied with mounting bracketsandinstruction manual.

pH500XYZ-a

X = 1 , single setpoint Y = 1 , ON/OFF control Z = 1 , analog output a = 1 , 115VAC power supply X = 2 , dual setpoint Y = 2 , proportional control Z = 2 , RS232 output a = 2 , 230VAC power supply

mV 600

• User-friendly•Automatic calibration •3 month backup power supply

ORPControl

SPECIFICATIONS mV 600

Range -2000 to 2000 mV; -9.9 to 120°C Resolution 1 mV; 0.1°C Accuracy
(@20°C/68°F) ±2 mV; ±0.5°C Input Impedance 10
12 Ohm ORP Calibration automatic, at 0 and 350 or 1900 mV Outputs digital: RS232 bi-directional optoisolated; or analog, galvanically isolated: 0-1 mA, 0-20 mA and 4-20 mA, 0-5 Vdc, 1-5 Vdc and 0-10 Vdc Setpoint Relay contact output SPDT 5A-250 Vac, 5A-30 Vdc (resistive load) Power Supply 115 Vac ±10% or 230 Vac ±10%; 50/60 Hz Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing Dimensions panel cutout:140 x 140 mm, instrument: 144 x 144 x 170 mm Weight 1.6 kg (3.5 lb.)

ORDERING INFORMATION

Match the last letters in the product code to the corresponding numbersaccording to desired configuration. Match the last letters in the product code to the corresponding numbersaccording to desired configuration. Each mV600 model is supplied complete with mounting brackets and instruction manual.

mV600XYZ-a

X = 1 , single setpoint Y = 1 , ON/OFF control Z = 1 , analog output a = 1 , 115VAC power supply Y = 2 , proportional control Z = 2 , RS232 output a = 2 , 230VAC power supply

(888) 815-6422 • aquaculture@hannainst.com www.hannainst.com 39
