With Great Products, Come Great Results.™

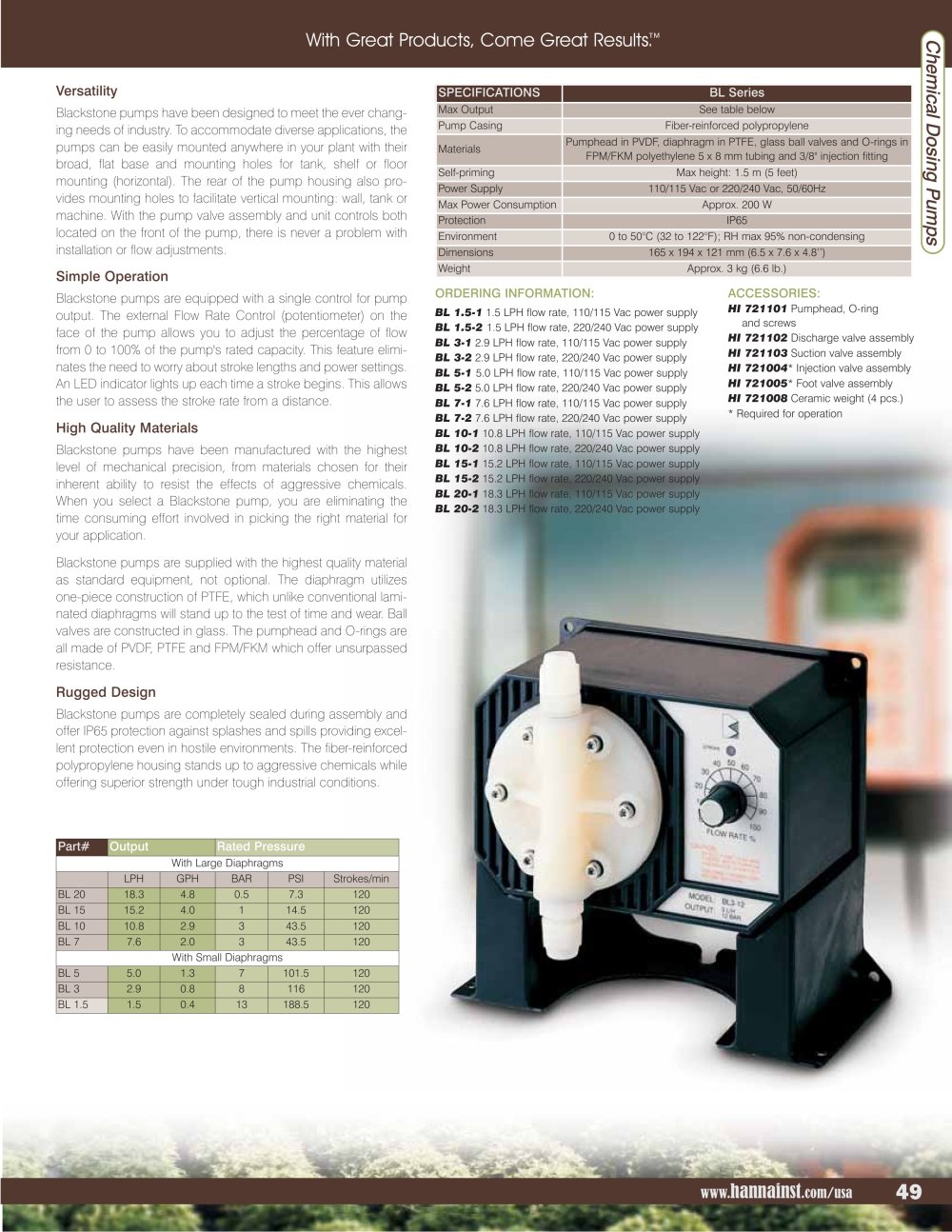

Chemical Dosing Pumps

Versatility

SPECIFICATIONS BL Series

Blackstone pumps have been designed to meet the ever chang-ing needs of industry. To accommodate diverse applications, the pumps can be easily mounted anywhere in your plant with their broad, flat base and mounting holes for tank, shelf or floor mounting (horizontal). The rear of the pump housing also pro- vides mounting holes to facilitate vertical mounting: wall, tank or machine. With the pump valve assembly and unit controls both located on the front of the pump, there is never a problem with installation or flow adjustments.

Max Output See table below Pump Casing Fiber-reinforced polypropylene Materials Pumphead in PVDF, diaphragm in PTFE, glass ball valves and O-rings inFPM/FKM polyethylene 5 x 8 mm tubing and 3/8" injection fitting Self-priming Max height: 1.5 m (5 feet) Power Supply 110/115 Vac or 220/240 Vac, 50/60Hz Max Power Consumption Approx. 200 W Protection IP65 Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing Dimensions 165 x 194 x 121 mm (6.5 x 7.6 x 4.8’’)

Simple Operation

Weight Approx. 3 kg (6.6 lb.)

Blackstone pumps are equipped with a single control for pump output. The external Flow Rate Control (potentiometer) on theface of the pump allows you to adjust the percentage of flowfrom 0 to 100% of the pump's rated capacity. This feature elimi- nates the need to worry about stroke lengths and power settings. An LED indicator lights up each time a stroke begins. This allows the user to assess the stroke rate from a distance.

ORDERING INFORMATION: ACCESSORIES:

BL 1.5-1 1.5 LPH flow rate, 110/115 Vac power supply HI 721101 Pumphead, O-ringand screws BL 1.5-2 1.5 LPH flow rate, 220/240 Vac power supply BL 3-1 2.9 LPH flow rate, 110/115 Vac power supply HI 721102 Discharge valve assembly BL 3-2 2.9 LPH flow rate, 220/240 Vac power supply HI 721103 Suction valve assembly BL 5-1 5.0 LPH flow rate, 110/115 Vac power supply HI 721004 * Injection valve assembly BL 5-2 5.0 LPH flow rate, 220/240 Vac power supply HI 721005 * Foot valve assembly BL 7-1 7.6 LPH flow rate, 110/115 Vac power supply HI 721008 Ceramic weight (4 pcs.)* Required for operation BL 7-2 7.6 LPH flow rate, 220/240 Vac power supply

High Quality Materials

BL 10-1 10.8 LPH flow rate, 110/115 Vac power supply

Blackstone pumps have been manufactured with the highest level of mechanical precision, from materials chosen for theirinherent ability to resist the effects of aggressive chemicals.When you select a Blackstone pump, you are eliminating the time consuming effort involved in picking the right material for your application.Blackstone pumps are supplied with the highest quality materialas standard equipment, not optional. The diaphragm utilizes one-piece construction of PTFE, which unlike conventional lami- nated diaphragms will stand up to the test of time and wear. Ball valves are constructed in glass. The pumphead and O-rings areall made of PVDF, PTFE and FPM/FKM which offer unsurpassedresistance.

BL 10-2 10.8 LPH flow rate, 220/240 Vac power supply BL 15-1 15.2 LPH flow rate, 110/115 Vac power supply BL 15-2 15.2 LPH flow rate, 220/240 Vac power supply BL 20-1 18.3 LPH flow rate, 110/115 Vac power supply BL 20-2 18.3 LPH flow rate, 220/240 Vac power supply

Rugged Design

Blackstone pumps are completely sealed during assembly and offer IP65 protection against splashes and spills providing excel-lent protection even in hostile environments. The fiber-reinforcedpolypropylene housing stands up to aggressive chemicals while offering superior strength under tough industrial conditions.

Part# Output Rated Pressure

With Large Diaphragms LPH GPH BAR PSI Strokes/min BL 20 18.3 4.8 0.5 7.3 120 BL 15 15.2 4.0 1 14.5 120 BL 10 10.8 2.9 3 43.5 120 BL 7 7.6 2.0 3 43.5 120 With Small Diaphragms BL 5 5.0 1.3 7 101.5 120 BL 3 2.9 0.8 8 116 120 BL 1.5 1.5 0.4 13 188.5 120

www.

hannainst

.com/usa

Agriculture Catalog - 9073 49
