L-730/740 Laser Alignment System - 8 Pages

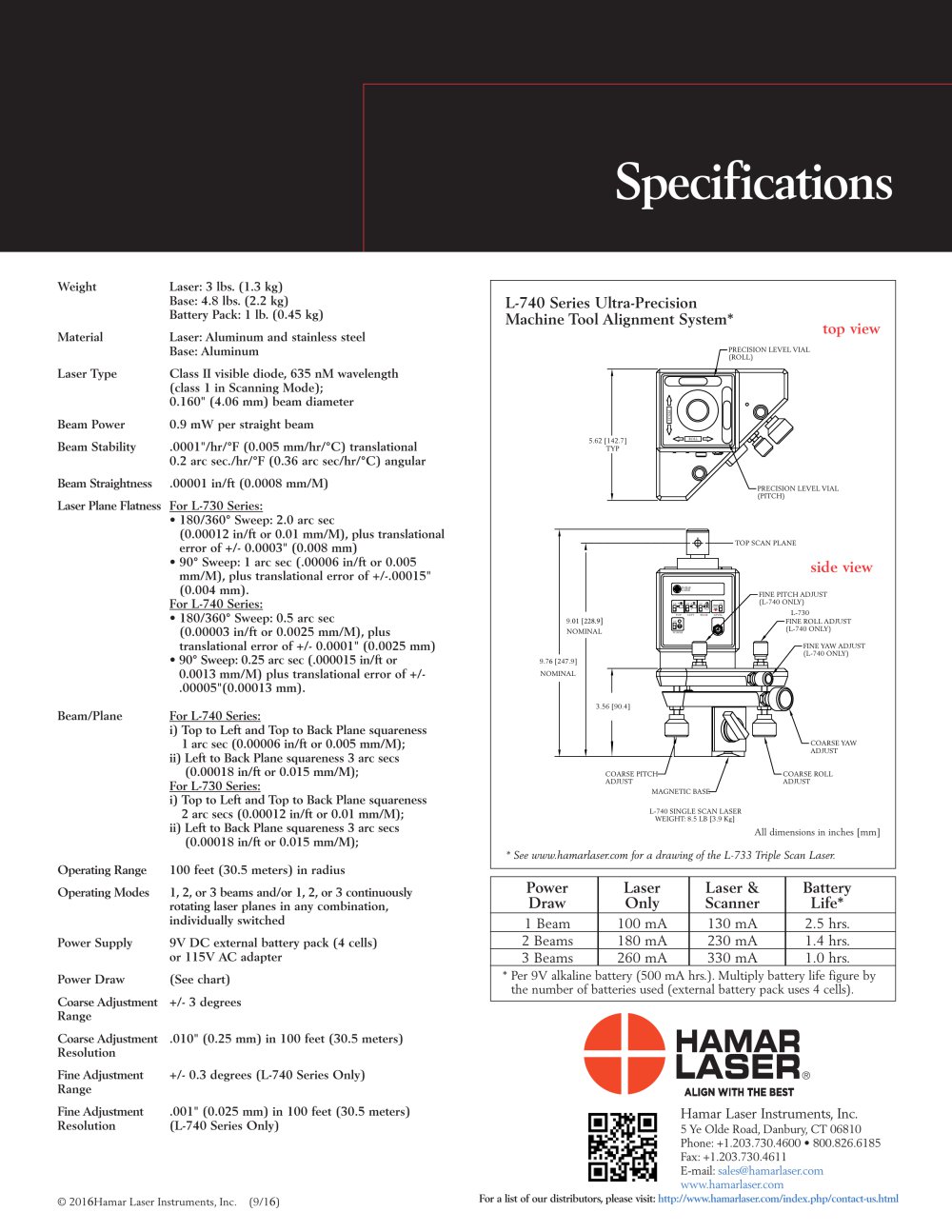

| Specifications | |||||||||||||||||||||||||||||||||||||||||||||
| L-743 Triple Scan Laser with Coarse/Fine Adjust Base | |||||||||||||||||||||||||||||||||||||||||||||
| L-743 Triple Scan® Ultra-Precision Machine Tool Alignment System* | |||||||||||||||||||||||||||||||||||||||||||||
| )p view | |||||||||||||||||||||||||||||||||||||||||||||
| PRECISION LEVEL VIAL [ROLL] | |||||||||||||||||||||||||||||||||||||||||||||
| .86 [21.8] TYP | |||||||||||||||||||||||||||||||||||||||||||||
| L-733 Triple Scan Laser with Coarse Adjust Base | |||||||||||||||||||||||||||||||||||||||||||||
| Weight Laser: 3 lbs. (1.3 kg) Base: 4.8 lbs. (2.2 kg) Battery Pack: 1 lb. (0.45 kg) Material Laser: Aluminum and stainless steel Base: Aluminum Laser Type Class II visible diode, 635 nM wavelength (class 1 in Scanning Mode); 0.160" (4.06 mm) beam diameter Beam Power 0.9 mW per straight beam Beam Stability .0001"/hr/°F (0.005 mm/hr/°C) translational 0.2 arc sec./hr/°F (0.36 arc sec/hr/°C) angular Beam Straightness .00001 in/ft (0.0008 mm/M) Laser Plane Flatness For L-740 Series: 360° Sweep: 0.5 arc second (0.00003 in/ft or 0.0025 mm/M), plus maximum translational error of +/-.00005" (0.0013 mm) 90° Sweep: 0.25 arc second (.000015 in/ft or 0.0013 mm/M) plus maximum translational error of +/-.00005" (0.0013 mm). For L-730 Series: 2 arc seconds for flatness | |||||||||||||||||||||||||||||||||||||||||||||
| side view | |||||||||||||||||||||||||||||||||||||||||||||
| COARSE YAW ADJUST | |||||||||||||||||||||||||||||||||||||||||||||
| Beam/Plane Squareness | |||||||||||||||||||||||||||||||||||||||||||||
| For L-740 Series: 3 (or 2) planes mutually square to within 1.0 arc second (.00006 in/ft or 0.005 mm/M) For L-730 Series: 3 (or 2) planes mutually square to 2 arc seconds 100 feet (30.5 meters) in radius 1, 2, or 3 beams and/or 1, 2, or 3 continuously sweeping planes in any combination, individually switched 9V DC external battery pack (4 cells) or 115V AC adapter (See chart) +/- 3 degrees .010" (0.25 mm) in 100 feet (30.5 meters) +/- 0.3 degrees (L-740 Series Only) .001" (0.025 mm) in 100 feet (30.5 meters) (L-740 Series Only) | |||||||||||||||||||||||||||||||||||||||||||||
| COARSE PITCH ' ADJUST MAGNETIC BASE ' | |||||||||||||||||||||||||||||||||||||||||||||
| COARSE ROLL ADJUST | |||||||||||||||||||||||||||||||||||||||||||||
| All dimensions in inches [mm] * See www.hamarlaser.com for a drawing of the L-733 Triple Scan Laser. | |||||||||||||||||||||||||||||||||||||||||||||
| Operating Range Operating Modes Power Supply Power Draw Coarse Adjustment Range Coarse Adjustment Resolution Fine Adjustment Range Fine Adjustment Resolution | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
