L-740 Series Systems
Laser Alignment Systems for Complex, Ultra-Precise Applications
Features and Benefits Our ultra-precision L-740 Series Laser Alignment Systems represent the pinnacle of achievement in laser alignment technology. With the L-743 Triple Scan® laser, measure flatness, straightness, and squareness simultaneously, with one setup! Powerful machine geometry analysis software automatically downloads alignment data, corrects laser-slope and poor-reference-point errors and produces comprehensive alignment reports.
L-740 Series Features:
• One, two or three auto-rotating laser planes
• Accurate to .000037ft or 0.0025 mm/M
• Laser plane orthogonality: .000067ft or 0.005 mm/M
• Built-in, backlit level vials with .000067ft or 0.005 mm/M accuracy
• 3-axis adjustment base for fast setups
The system comes with 2 wireless target options: A) the A-1519 with 1" (25mm) measuring range and .00002" (0.0005 mm) resolution; or B) the A-1520 with .25" (10 mm) measuring range and .00001" (0.00025 mm) resolution. Our R-1310 wireless readout can display up to eight targets, four simultaneously. The A-910 wireless PC base station can download data from up to 99 targets at the same time.
Which Laser System Is Right For You?
Precision Series
Ultra Precision Series
L-730 L-732 L-733
L-740 L-741 L-742 L-743
# of La
ser Planes
12 3
112 3
Measurement Tasks
Flatness/Leveling • • •
• . . .
Machine Bed • • • Flatness
... •
Squareness • •
• . .
Straightness • •
. . .
Parallelism • • •
. . . .
Rail Parallelism • •
..
Typical Applications
Machine Tool Geometry
. . .
Roll Alignment • •
..
Inj. Molding Mach. • •
..
Aerospace Assem. • • •
. . . .
Surface Plates
. . . .
Large-Part Align. • • •
. . . .
Fabrication • • • Alignment/Equip.
Accuracy Levels
Laser Plane .00012"/ft or 0.01 mm/M Flatness
.00003"/ft or 0.0025 mm/M
Beam Plane n/a .00012"/ft or Squareness 0.01 mm/M
n/a 00006"/ft or
0.005 mm/M
Adjustment Parameters
Coarse +/- 3.0 degrees Adjustment Range
+/- 3.0 degrees
Fine n/a Adjustment Range
+/- .03 degrees
Course .010" (0.25 mm) in Adjustment 100 feet (30.5 meters) Resolution
.010" (0.25 mm) in 100 feet (30.5 meters)
Fine n/a Adjustment Resolution
.001" (0.025 mm) in 100 feet (30.5 meters)
Target:
A-1532 & std. std. std.
A-1533
n/a n/a n/a n/a
A-1519 & opt. opt. opt. A-1520 Wireless
std. std. std. std.
Recommended #: 1 2-3 3—4
1 1 2-3 3-4
Readout:
Built-in std. std. std.
n/a n/a n/a n/a
Wireless opt. opt. opt.
std. std. std. std.
$$ $$ $$$ $$$$
L-740 Ultra-Precision Leveling Laser
L-741 Ultra-Precision
Leveling Laser (with Plumb Beam)
L-742 Ultra-Precision Dual Scan® Laser
L-743 Ultra-Precision Triple Scan®® Laser
L-730/740 Laser Alignment System
  1. P. 1

    Laser Systems for Geometric AlignmentL-730/740 Series Single-Axis/Multi-Axis Precision Alignment and Analysis Geometric Alignment Laser Systems >
  2. P. 2

    How Lasers Work Principles of Operation A Hamar Laser System For EveryAlignment Need Applications LASER is an acronym for LightAmplification by StimulatedEmissionof...
  3. P. 3

    Properly Aligned Machinery AndProcess Lines Run Better,Last Longer Why Laser Alignment? Case Histories 1 > Aircraft Assembly Sooner or later everything...
  4. P. 4

    How Lasers Work: Principles of Operation LASER is an acronym for Light Amplification by Stimulated Emission of Radiation. Lasers radiate in a...
  5. P. 5

    L-730 Series Systems High-Accuracy, Economically-Priced Laser Alignment Systems Features and Benefits The L-730 Series of single, dual and triple-plane...
  6. P. 6

  7. P. 7

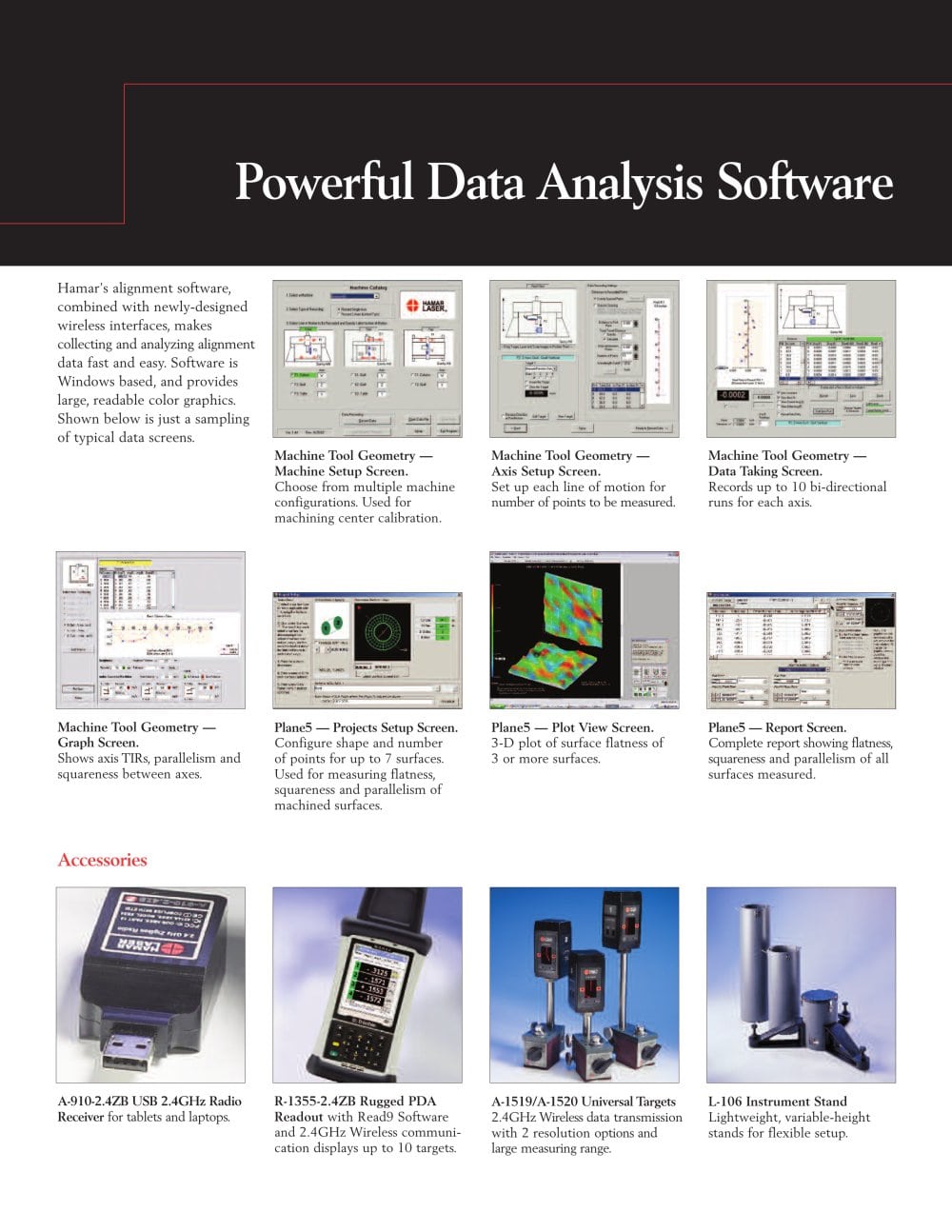

    Powerful Data Analysis Software Hamar's alignment software, combined with newly-designed wireless interfaces, makes collecting and analyzing alignment...
