PHOTODETECTORS

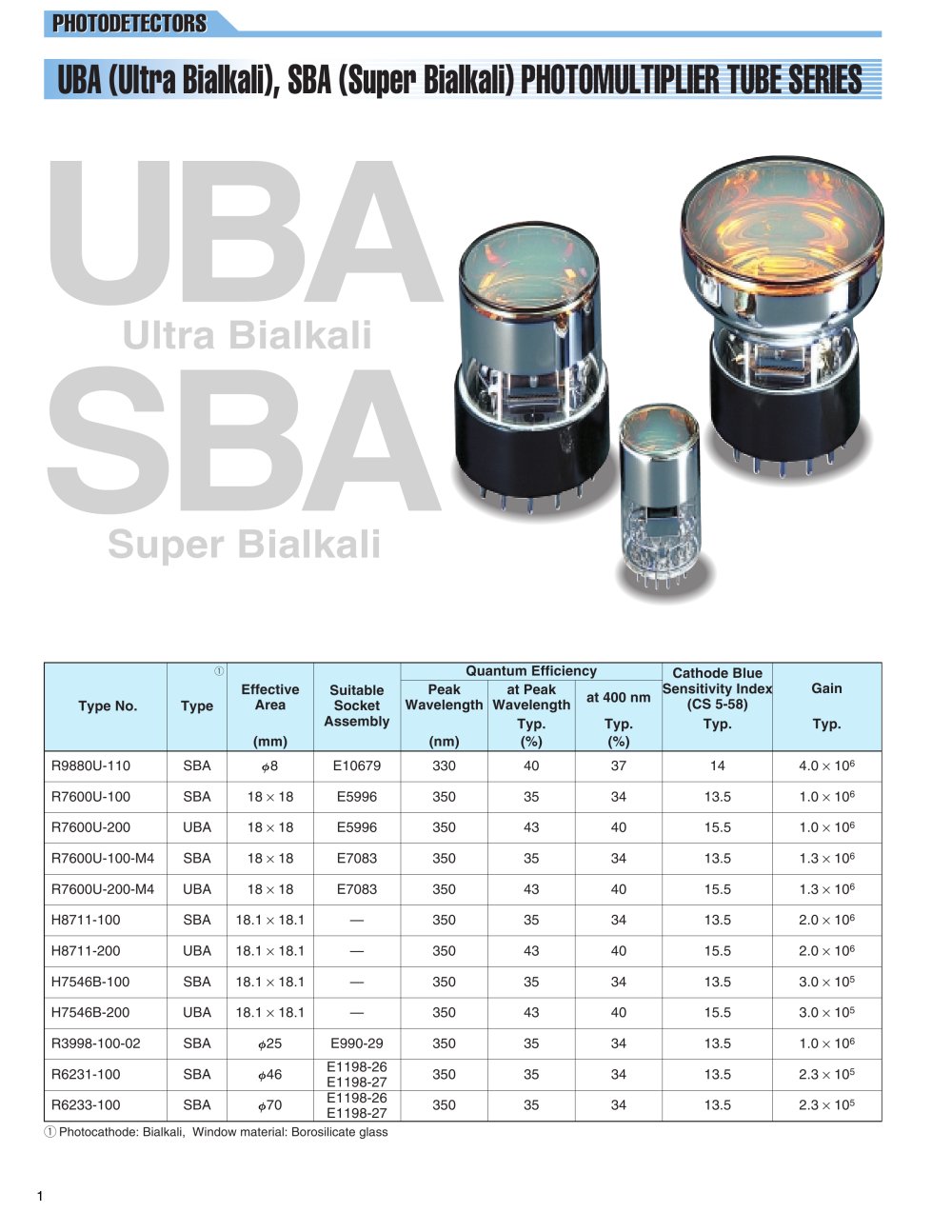

UBA (Ultra Bialkali), SBA (Super Bialkali) PHOTOMULTIPLIER TUBE SERIES

Super Bialkali


	Type No.	Type	Effective Area (mm)	Suitable Socket Assembly	Quantum Efficiency			Cathode Blue Sensitivity Index (CS 5-58) Typ.	Gain Typ.
	Type No.	Type	Effective Area (mm)	Suitable Socket Assembly	Peak Wavelength (nm)	at Peak Wavelength Typ. (%)	at 400 nm Typ. (%)	Cathode Blue Sensitivity Index (CS 5-58) Typ.	Gain Typ.
	R9880U-110	SBA	8	E10679	330	40	37		4.0 x 10⁶
	R7600U-100	SBA	18 x 18	E5996	350	35	34		_1.0 _x ₁₀6
	R7600U-200	UBA	18 x 18	E5996	350	43	40	15.5	1.0 x 10⁶
	R7600U-100-M4	SBA	18 x 18	E7083	350	35	34	13.5	1.3 x 10⁶
	R7600U-200-M4	UBA	18 x 18	E7083	350	43	40	15.5	1.3 x 10⁶
	H8711-100	SBA	18.1 x 18.1		350	35	34	13.5	2.0 x 10⁶
	H8711-200	UBA	18.1 x 18.1		350	43	40		2.0 x 10⁶
	H7546B-100	SBA	18.1 x 18.1		350	35	34	13.5	3.0 x 10⁵
	H7546B-200	UBA	18.1 x 18.1		350	43	40	15.5	3.0 x 10⁵
	R3998-100-02	SBA	25	E990-29	350	35	34	13.5	1.0 x 10⁶
	R6231-100	SBA	46	E1198-26 E1198-27	350	35	34	13.5	2.3 x 10⁵
	R6233-100	SBA	70	E1198-26 E1198-27	350	35	34	13.5	2.3 x 10⁵

© Photocathode: Bialkali, Window material: Borosilicate glass
