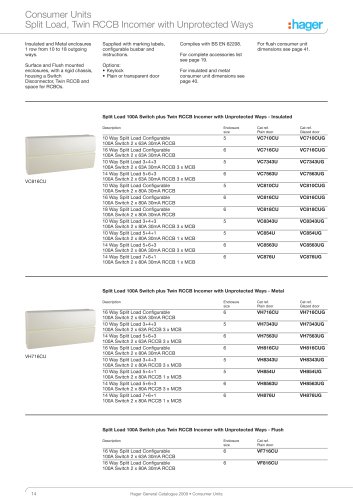

14 Hager General Catalogue 2009 • Consumer Units
Split Load 100A Switch plus Twin RCCB Incomer with Unprotected Ways - Insulated
Description Enclosure Cat ref. Cat ref.
size Plain door Glazed door
10 Way Split Load Configurable 5 VC710CU VC710CUG
100A Switch 2 x 63A 30mA RCCB
16 Way Split Load Configurable 6 VC716CU VC716CUG
100A Switch 2 x 63A 30mA RCCB
10 Way Split Load 3+4+3 5 VC7343U VC7343UG
100A Switch 2 x 63A 30mA RCCB 3 x MCB
14 Way Split Load 5+6+3 6 VC7563U VC7563UG
100A Switch 2 x 63A 30mA RCCB 3 x MCB
10 Way Split Load Configurable 5 VC810CU VC810CUG
100A Switch 2 x 80A 30mA RCCB
16 Way Split Load Configurable 6 VC816CU VC816CUG
100A Switch 2 x 80A 30mA RCCB
18 Way Split Load Configurable 6 VC818CU VC818CUG
100A Switch 2 x 80A 30mA RCCB
10 Way Split Load 3+4+3 5 VC8343U VC8343UG
100A Switch 2 x 80A 30mA RCCB 3 x MCB
10 Way Split Load 5+4+1 5 VC854U VC854UG
100A Switch 2 x 80A 30mA RCCB 1 x MCB
14 Way Split Load 5+6+3 6 VC8563U VC8563UG
100A Switch 2 x 80A 30mA RCCB 3 x MCB
14 Way Split Load 7+6+1 6 VC876U VC876UG
100A Switch 2 x 80A 30mA RCCB 1 x MCB
Insulated and Metal enclosures
1 row from 10 to 18 outgoing
ways.
Surface and Flush mounted
enclosures, with a rigid chassis,
housing a Switch
Disconnector, Twin RCCB and
space for RCBOs.
Supplied with marking labels,
configurable busbar and
instructions.
Options:
• Keylock
• Plain or transparent door
Complies with BS EN 62208.
For complete accessories list
see page 19.
For insulated and metal
consumer unit dimensions see
page 40.
For flush consumer unit
dimensions see page 41.
Split Load 100A Switch plus Twin RCCB Incomer with Unprotected Ways - Metal
Description Enclosure Cat ref. Cat ref.
size Plain door Glazed door
16 Way Split Load Configurable 6 VH716CU VH716CUG
100A Switch 2 x 63A 30mA RCCB
10 Way Split Load 3+4+3 5 VH7343U VH7343UG
100A Switch 2 x 63A RCCB 3 x MCB
14 Way Split Load 5+6+3 6 VH7563U VH7563UG
100A Switch 2 x 63A RCCB 3 x MCB
16 Way Split Load Configurable 6 VH816CU VH816CUG
100A Switch 2 x 80A 30mA RCCB
10 Way Split Load 3+4+3 5 VH8343U VH8343UG
100A Switch 2 x 80A RCCB 3 x MCB
10 Way Split Load 5+4+1 5 VH854U VH854UG
100A Switch 2 x 80A RCCB 1 x MCB
14 Way Split Load 5+6+3 6 VH8563U VH8563UG
100A Switch 2 x 80A RCCB 3 x MCB
14 Way Split Load 7+6+1 6 VH876U VH876UG
100A Switch 2 x 80A RCCB 1 x MCB
Split Load 100A Switch plus Twin RCCB Incomer with Unprotected Ways - Flush
Description Enclosure Cat ref.
size Plain door
16 Way Split Load Configurable 6 VF716CU
100A Switch 2 x 63A 30mA RCCB
16 Way Split Load Configurable 6 VF816CU
100A Switch 2 x 80A 30mA RCCB
VC816CU
VH716CU
