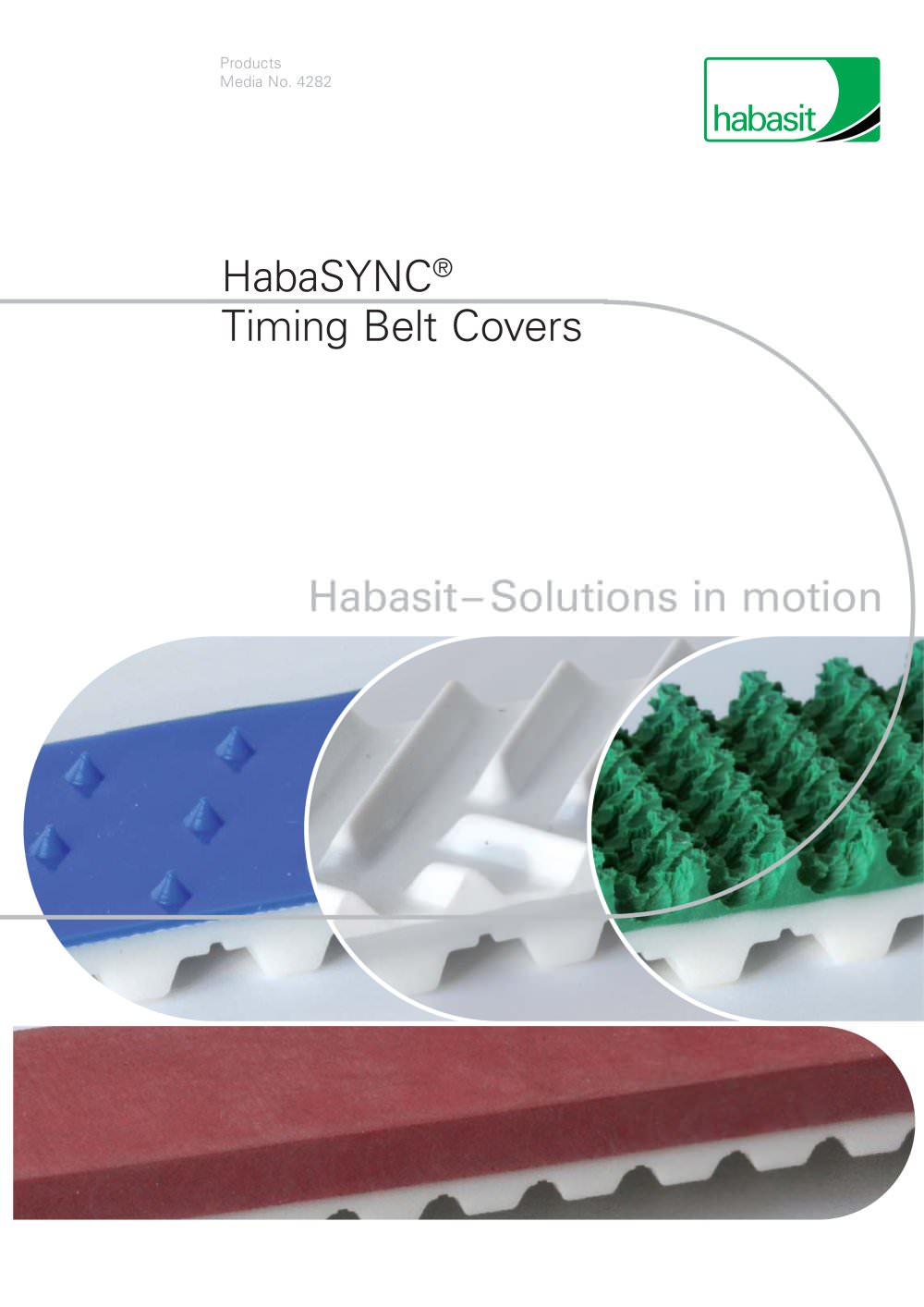

Products Media No. 4282 Habasit–Solutions in motion HabaSYNC® Timing Belt Covers

Open the catalog to page 1

Contents 2 The right solution every time 3 Polyurethane covers 4–5 Elastomere covers 6–7 Polyvinyl chloride covers 8 Other covers 9 Modifications 10 Website for more information 11 Contacts 12 Product liability, application considerations If the proper selection and application of Habasit products are not recommended by an authorized Habasit sales specialist, the selection and application of Habasit products, including the related area of product safety, are the responsibility of the customer. All indications / information are recommendations and believed to be reliable, but no...

Open the catalog to page 2

The right solution every time 3 Habasit offers a broad selection of covers for its HabaSYNC® Timing Belts. Covers provide the friction needed to handle products so that they are correctly indexed and securely and effectively managed. Our covers are designed to cope with a wide variety of requirements and can thus guarantee reliable conveyance in every type of transport function and manufacturing application. Some cover materials are applied during timing belt production, affording homogeneous structure benefi ts. Others are added later using heat lamination or adhesive bonding processes....

Open the catalog to page 3

4 Designation T/NPW PU60T PU85C PU85W Material TPU PU PU PU Surface pimple top smooth smooth smooth Color white transparent cobalt-blue white FDA • — • — Hardness Shore A 80 60 85 85 Temperature range °C / °F -20 – 80 -4 – 176 -20 – 80 -4 – 176 -20 – 80 -4 – 176 -20 – 80 -4 – 176 Thickness mm / in. 1.35 0.05 2.0/3.0/ 4.0 0.08/0.12/ 0.16 2.0/3.0/ 4.0 0.08/0.12/ 0.16 2.0/3.0/ 4.0 0.08/0.12/ 0.16 Product features / special properties Abrasion-resistant Adhesive High grip Wear-resistant Adhesive Chemical- and oilresistant Wear-resistant Food-grade Chemical- and oilresistant Wear-resistant...

Open the catalog to page 4

Polyurethane covers 5 Designation PU60BL PU92WN WAL -C Material PU PU TPU Surface longitudinal rib smooth longitudinal rib Color black natural white cobalt blue FDA — — • Hardness Shore A 60 92 85 Temperature range °C / °F -20 – 80 -4 – 176 -20 – 80 -4 – 176 -30 – 80 -22 – 176 Thickness mm / in. 3.0 5.0 0.08 0.19 2.0 3.0 0.08 0.12 1.2 0.05 Product features / special properties Abrasion-resistant Adhesive Chemical- and oilresistant Abrasion-resistant Wear-resistant Non-adhesive Chemical- and oilresistant Abrasion-resistant Constant coeffi cient of friction

Open the catalog to page 5

6 Designation HAR HAT HAT-W Linatex® Material NBR NBR NBR Natural rubber Surface rough textile structure textile structure textile structure smooth Color green green light green red FDA — — — — Hardness Shore A 70 60 60 35 Temperature range °C / °F -20 – 100 -4 – 212 0 – 100 32 – 212 0 – 100 32 – 212 -40 – 70 -40 – 158 Thickness mm / in. 0.7 0.03 1.25 0.05 1.0 – 2.0 2.0 – 4.0 0.04 – 0.08 0.08 – 0.16 2.0 – 12.7 0.08 – 0.5 Product features / special properties Abrasion- and chemical-resistant Adhesive Constant and high coeffi cient of friction Abrasion-resistant Adhesive Constant and high...

Open the catalog to page 6

Elastomere covers 7 Designation Linatrile® Nitrile white Material Nitrile Nitrile Surface smooth smooth Color orange white FDA — • Hardness Shore A 55 60 Temperature range °C / °F -20 – 110 -4 – 230 -20 – 80 -4 – 176 Thickness mm / in. 3.0 – 6.0 0.12 – 0.24 2.0 – 6.0 0.08 – 0.24 Product features / special properties Abrasion-resistant Heat- and chemicalresistant High coeffi cient of friction Food-grade Oil-resistant Non-adhesive

Open the catalog to page 7

8 Designation FAB-CV NAB-WV NAG-DV Material PVC PVC PVC Surface smooth smooth grip structure Color blue white dark green FDA • • — Hardness Shore A 86 45 45 Temperature range °C / °F -10 – 80 14 – 176 -10 – 70 14 – 158 -10 – 70 14 – 158 Thickness mm / in. 0.4 0.02 0.6 – 1.0 0.02 – 0.04 3.8 0.15 Product features / special properties Abrasion-resistant Food-grade Adhesive Food-grade Adhesive High grip Designation WAG-G SAQ Material PVC PVC Surface basket weave quadrangular Color green anthracite FDA — — Hardness Shore A 50 ~68 – 72 Temperature range °C / °F -20 – 80 -4 – 176 -10 – 60 14 – 140...

Open the catalog to page 8

9 Designation Artifi cial leather Felt-top G-NB Heatmate Material PES/TPU PES PES Aramide Surface smooth non-woven (fl eece) non-woven (fl eece) non-woven Color gray white black yellow FDA — • — — Hardness Shore A 50 40 80 NA Temperature range °C / °F 0 – 60 32 – 140 -20 – 70 -4 – 158 -10 – 80 14 – 176 -20 – 4262 -4 – 799 2 Thickness mm / in. 1.0 – 2.0 0.04 – 0.08 2.0 0.08 0.8 2.0 0.03 0.08 5.0 0.19 Product features / special properties Oil-resistant Non-adhesive Good release Non-adhesive Cut-resistant Wear-resistant edges Non-adhesive Excellent heat- and fl ame-resistance Other covers...

Open the catalog to page 9

HabaSYNC Timing Belts Covers (4282) - 10

10 Modifi cations to the cover and tooth side of a HabaSYNC® belt can enhance performance for your conveying and linear positioning applications. Please contact your nearest Habasit partner to discuss your ideas and application needs. The examples below show just a selection of what we can do. Modifi cations Profi le grinding After covers are added, they can be ground to yield special designs to help maintain product control. Designs include slots, contours, v-shapes and round shapes. Surface grinding Grinding of the added cover can provide tight thickness tolerances and in many cases,...

Open the catalog to page 10

HabaSYNC Timing Belts Covers (4282) - 11

Visit www.habasync.com for more information 11 Navigation menu Select • Product overview Navigation menu Select • Covers

Open the catalog to page 11

HabaSYNC Timing Belts Covers (4282) - 12

Headquarters Habasit AG Römerstrasse 1 CH-4153 Reinach, Switzerland Phone +41 61 715 15 15 Fax +41 61 715 15 55 E-mail info@habasit.com www.habasit.com Registered trademarks Copyright Habasit AG Subject to alterations Printed in Switzerland Publication data: 4282BRO.TIM-en0810HQR Austria Habasit GmbH, Wien Phone: +43 1 690 66 www.habasit.at Belgium Habasit Belgium N.V., Zaventem Phone: +32 2 725 04 30 www.habasit.be Canada Habasit Canada Ltd., Oakville Phone: +1 905 827 4131 www.habasit.ca China Habasit East Asia Ltd., Hong Kong Phone: +852 2145 01 50 www.habasit.com.hk Habasit (Shanghai)...
