9

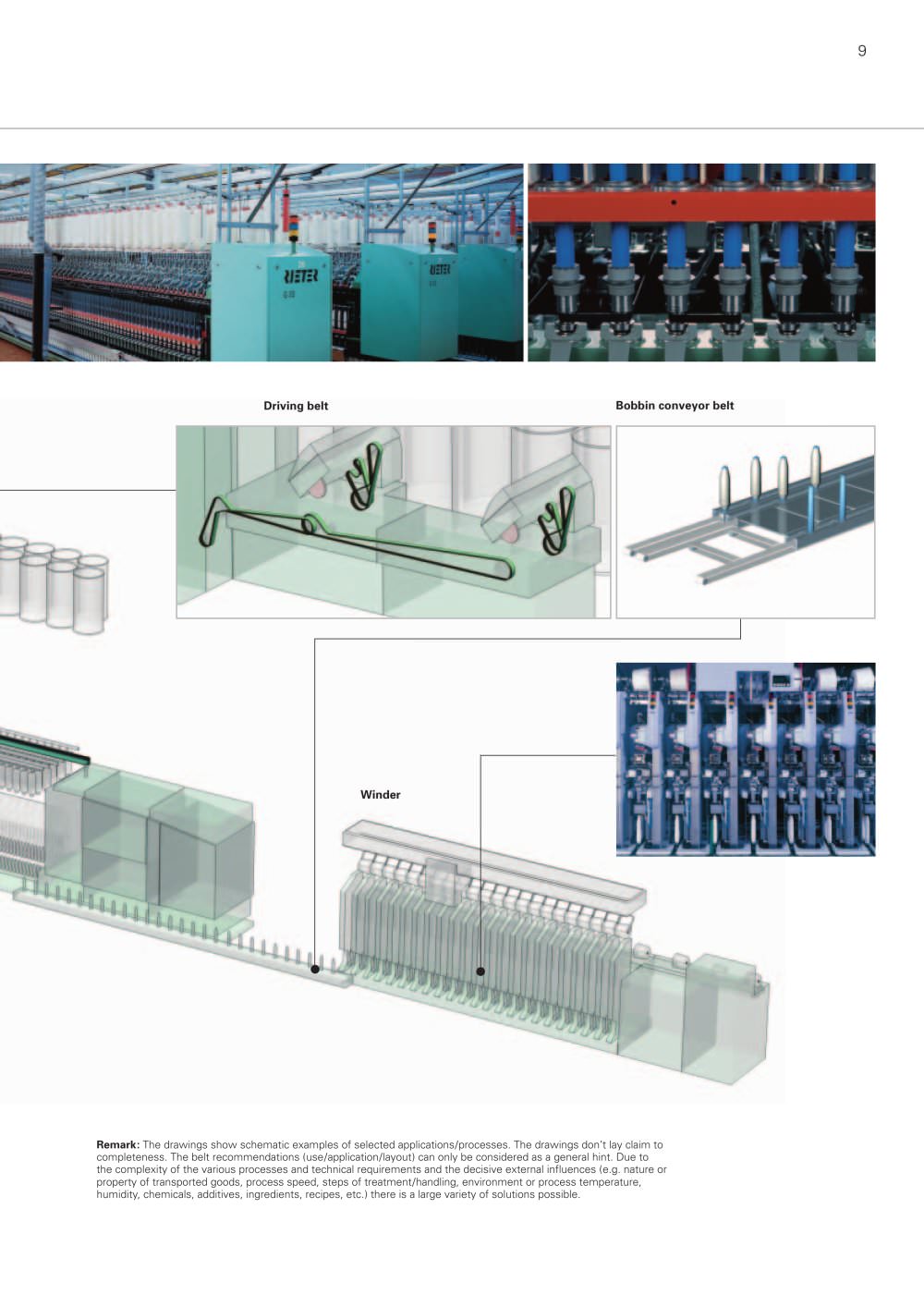

Winder Driving beltBobbin conveyor belt

Remark: The drawings show schematic examples of selected applications/processes. The drawings don’t lay claim tocompleteness. The belt recommendations (use/application/layout) can only be considered as a general hint. Due to the complexity of the various processes and technical requirements and the decisive external influences (e.g. nature or property of transported goods, process speed, steps of treatment/handling, environment or process temperature, humidity, chemicals, additives, ingredients, recipes, etc.) there is a large variety of solutions possible.
