9

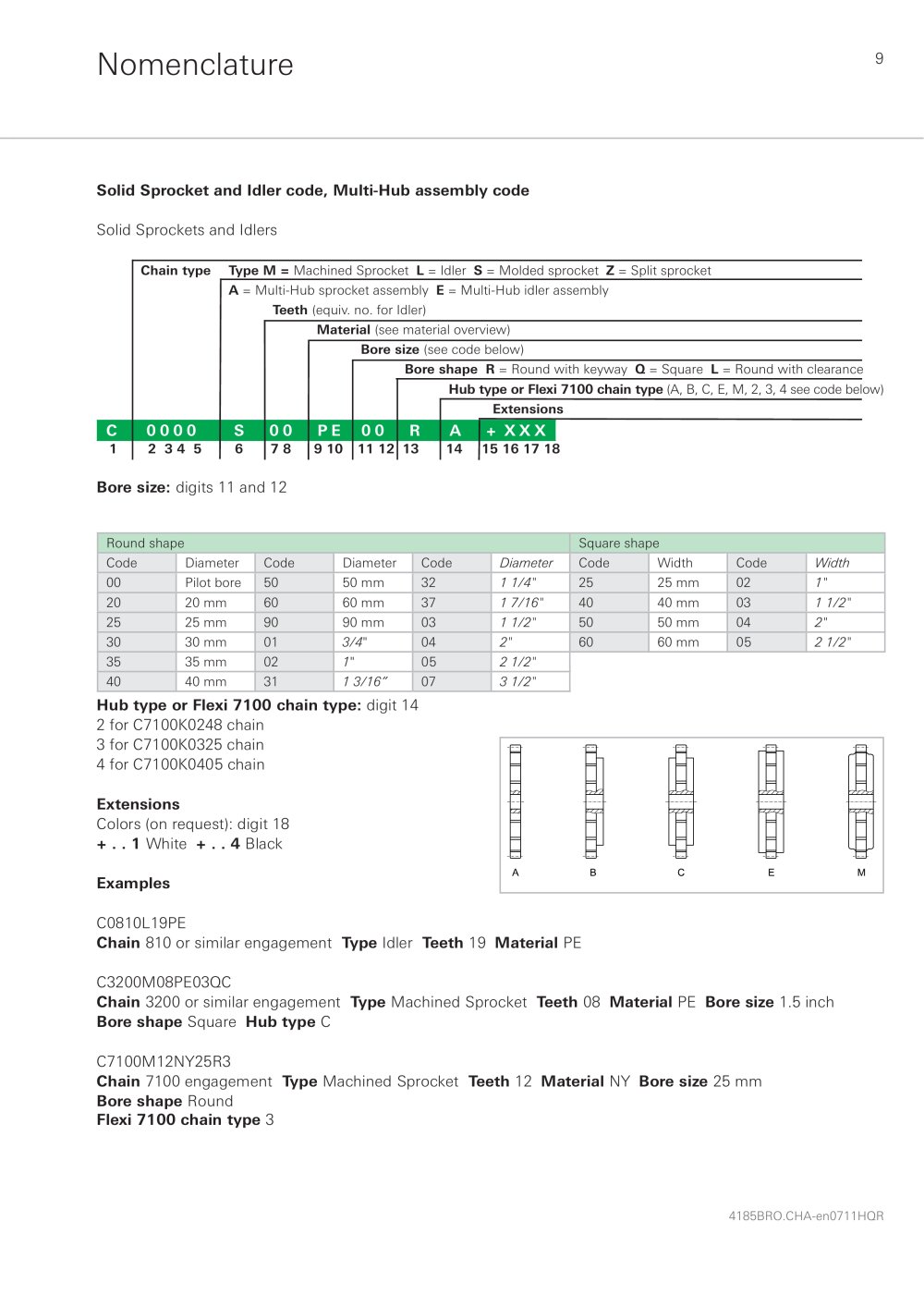

Nomenclature
Solid Sprocket and Idler code, Multi-Hub assembly code
Solid Sprockets and Idlers
Chain type
Type M = Machined Sprocket L = Idler S = Molded sprocket Z = Split sprocket
A = Multi-Hub sprocket assembly E = Multi-Hub idler assembly
Teeth (equiv. no. for Idler)
Material (see material overview)
Bore size (see code below)
Bore shape R = Round with keyway Q = Square L = Round with clearance
Hub type or Flexi 7100 chain type (A, B, C, E, M, 2, 3, 4 see code below)
Extensions
C
0000
S
00
PE
1
2 34 5
6
78
9 10
R
A
11 12 13
00
14
+ XXX
15 16 17 18
Bore size: digits 11 and 12
Round shape
Square shape
Code
Diameter
Code
Diameter
Code
Diameter
Code
Width
Code
Width
00
Pilot bore
50
50 mm
32
1 1/4"
25
25 mm
02
1"
20
20 mm
60
60 mm
37
1 7/16"
40
40 mm
03
1 1/2"
25
25 mm
90
90 mm
03
1 1/2"
50
50 mm
04
2"
60
60 mm
05
2 1/2"
30
30 mm
01
3/4"
04
2"
35
35 mm
02
1"
05
2 1/2"
40
40 mm
31
1 3/16”
07
3 1/2"
Hub type or Flexi 7100 chain type: digit 14
2 for C7100K0248 chain
3 for C7100K0325 chain
4 for C7100K0405 chain
Extensions
Colors (on request): digit 18
+ . . 1 White + . . 4 Black
Examples
C0810L19PE
Chain 810 or similar engagement Type Idler Teeth 19 Material PE
C3200M08PE03QC
Chain 3200 or similar engagement Type Machined Sprocket Teeth 08 Material PE Bore size 1.5 inch
Bore shape Square Hub type C
C7100M12NY25R3
Chain 7100 engagement Type Machined Sprocket Teeth 12 Material NY Bore size 25 mm
Bore shape Round
Flexi 7100 chain type 3
4185BRO.CHA-en0711HQR
