Habasit HabaSYNC Timing Belts (4107) - 1

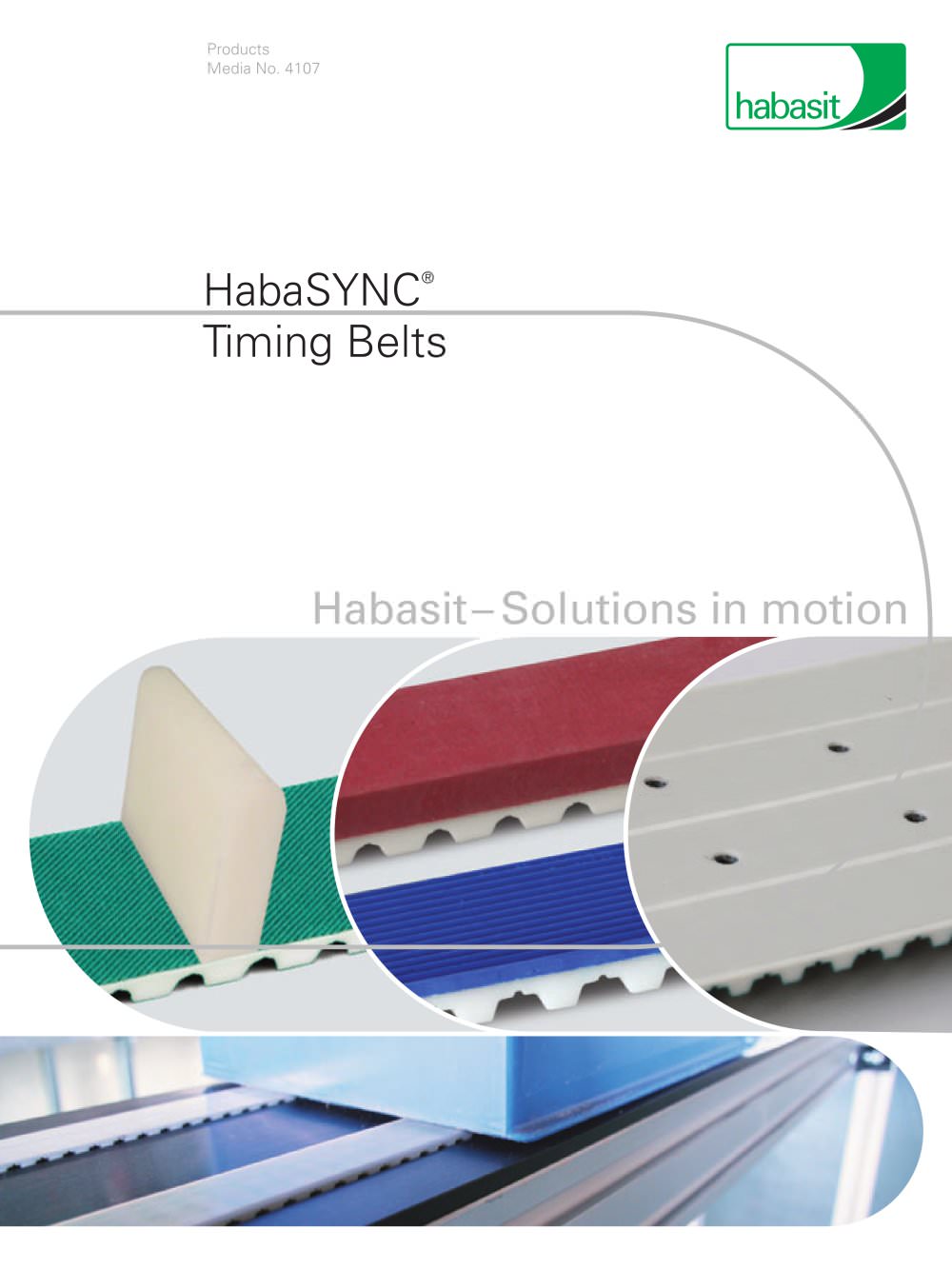

Habasit–Solutions in motion HabaSYNC® Timing Belts Media No. 4107

Open the catalog to page 1

Habasit HabaSYNC Timing Belts (4107) - 2

Contents Contents 2 Introduction to HabaSYNC® Timing Belts 3 Industries served 4 Application designs and layouts 6 HabaSYNC® features and benefits at a glance 7 Other belt types 8 TT5 A belts for circular knitting 8 Availability options 8 Polyamide and antistatic finishes 9 HabiPLAST® and accessories 10 Other cords 10 Other TPU options 10 Belt attachments: profiles and tracking guides 11 Covers 12 Modifications 13 Services 14 The Habasit solution 15 Contacts 16 Product liability, application considerations If the proper selection and application of Habasit products are NOT recommended by an...

Open the catalog to page 2

Habasit HabaSYNC Timing Belts (4107) - 3

Introduction to HabaSYNC Timing Belts Our experience For over 60 years Habasit has invented new conveying options by combining leading edge materials, committed research and development, material and textile knowledge, advanced manufacturing processes and stateof- the-art equipment to deliver solutions to a broad range of industries around the world. Base HabaSYNC® Timing Belts are produced at a new, state-of-the-art plant where ongoing investments mean new and better products, innovative product designs, and global competitiveness. Additionally, our broad international coverage means that...

Open the catalog to page 3

Habasit HabaSYNC Timing Belts (4107) - 4

Industries served HabaSYNC® Timing Belts are the right choice for applications where traditional belt designs are unable to provide synchronization. The HabaSYNC® Timing Belt can be made to your exact dimensional needs, and complemented with guides, profiles and covers to ensure your product or component is always in the right place at the right time. Business machines • Large format printers • Engineering plotters • Tape libraries • Document storage systems • Copiers • Lifts and elevating devices • X/Y and XYZ devices • Labeling equipment General conveying • Plastic tote conveying • Glass...

Open the catalog to page 4

Habasit HabaSYNC Timing Belts (4107) - 5

Textile • X/Y fabric cutters • Flat knit machines • Circular knit machines • Textile screen printing • Crosslapper lines • Nonwovens • Embroidery machines • Monogram lines Food • Tray conveying • Produce sizing lines • Produce sorting lines • Snack lines • Candy lines • Filling lines • Frozen food lines Automation • Door openers • Garage openers • Gate openers • Robotic X/Y movement • Semiconductor assembly • Vending machines • Tenoner lines Automotive • Tire manufacturing lines • Sheet metal stamping lines • Car wash X/Y drives

Open the catalog to page 5

Habasit HabaSYNC Timing Belts (4107) - 6

Application design and layouts Unlimited application variety Timing belts can be found in a variety of applications. Some examples include general or transfer conveying, capstan haul-offs, linear drives, live roller drive elements and thread carriers. Many conveyors also utilize timing belts, such as: accumulation, parallel, synchronous, indexing, tractor/twin, cycling, positioning, assembly, magnetic, vertical and mechanical handling. Find more information in the HabaSYNC® Engineering Guide at www.habasync.com. Habasit application engineers can help you design the optimal belt for your...

Open the catalog to page 6

Habasit HabaSYNC Timing Belts (4107) - 7

HabaSYNC features and benefits at a glance HabaSYNC® Timing Belts are the perfect choice for applications requiring precision product or component placement. Perfectly formed teeth and accurate tooth tolerances, along with the strength delivered by steel and aramide cords, assure efficient entrance and exit from the pulley in single or bi-directional drive applications. HabaSYNC® belts are designed to run quietly and deliver many years of performance. For higher speed applications, we offer polyamide fabric added to the tooth side (PT) for the ultimate in low noise and wear resistance....

Open the catalog to page 7

Habasit HabaSYNC Timing Belts (4107) - 8

HabaSYNC® belts made with FDA polyester TPU are available in selected pitches for the direct handling of food products in dry environments. Clear HabaSYNC® in 88 Shore A hardness is reinforced with aramide cord and available in XL, L, H, T5 and T10 pitches. HabaSYNC® FDA dry conveying belts are designed with dedicated slit lanes, which ensures no cord exposure on belt edges. In addition to direct dry food handling, HabaSYNC® with profiles and FDA cover materials are popular in food packaging applications to enable product separation and provide enhanced frictional requirements. Other belt...

Open the catalog to page 8

Habasit HabaSYNC Timing Belts (4107) - 9

Polyamide and antistatic finishes Habasit offers variations of covers to our base steel and aramide timing belts with polyamide fabric. HabaSYNC® belts are available with finishes designed to optimize application performance. Polyamide fabrics provide low friction which reduces coefficient of friction (COF). A polyamide finish can also provide incremental wear resistance and offer lower noise benefits in certain applications. In many electronic related conveying applications, paper conveying applications and movement of sensitive parts, the standard TPU elastomer could build-up a static...

Open the catalog to page 9

Habasit HabaSYNC Timing Belts (4107) - 10

HabiPLAST and accessories Support guides HabiPLAST® guides are designed to reduce the coefficient of friction (COF) between the teeth on a timing belt and the conveyor surface. The thermoplastic is self-lubricating and is designed to yield low noise. HabiPLAST® also offers high chemical and corrosion resistance. HabiPLAST® guides are offered with or without raised edges and with or without tracking guides machined in the surface to accommodate G6, G10 and G13 tracking guides. HabiPLAST® is available to fit standard HabaSYNC® belt widths and can be supplied with or without metallic inserts....

Open the catalog to page 10

Habasit HabaSYNC Timing Belts (4107) - 11

Belt attachments: profiles and tracking guides Profiles are welded to the conveying side of Haba- SYNC® Timing Belts in order to accommodate special handling needs. Standard and custom shape profiles can be added for sorting and separation, feeding and indexing or actuation of products. Profiles are a common design solution on multiple belt lines that must feed line content in a perfectly timed, synchronized fashion. Profiles are commonly found in the following applications: Habasit uses several varieties of attachment technology to add profiles to the base belt. Consideration of the...

Open the catalog to page 11
