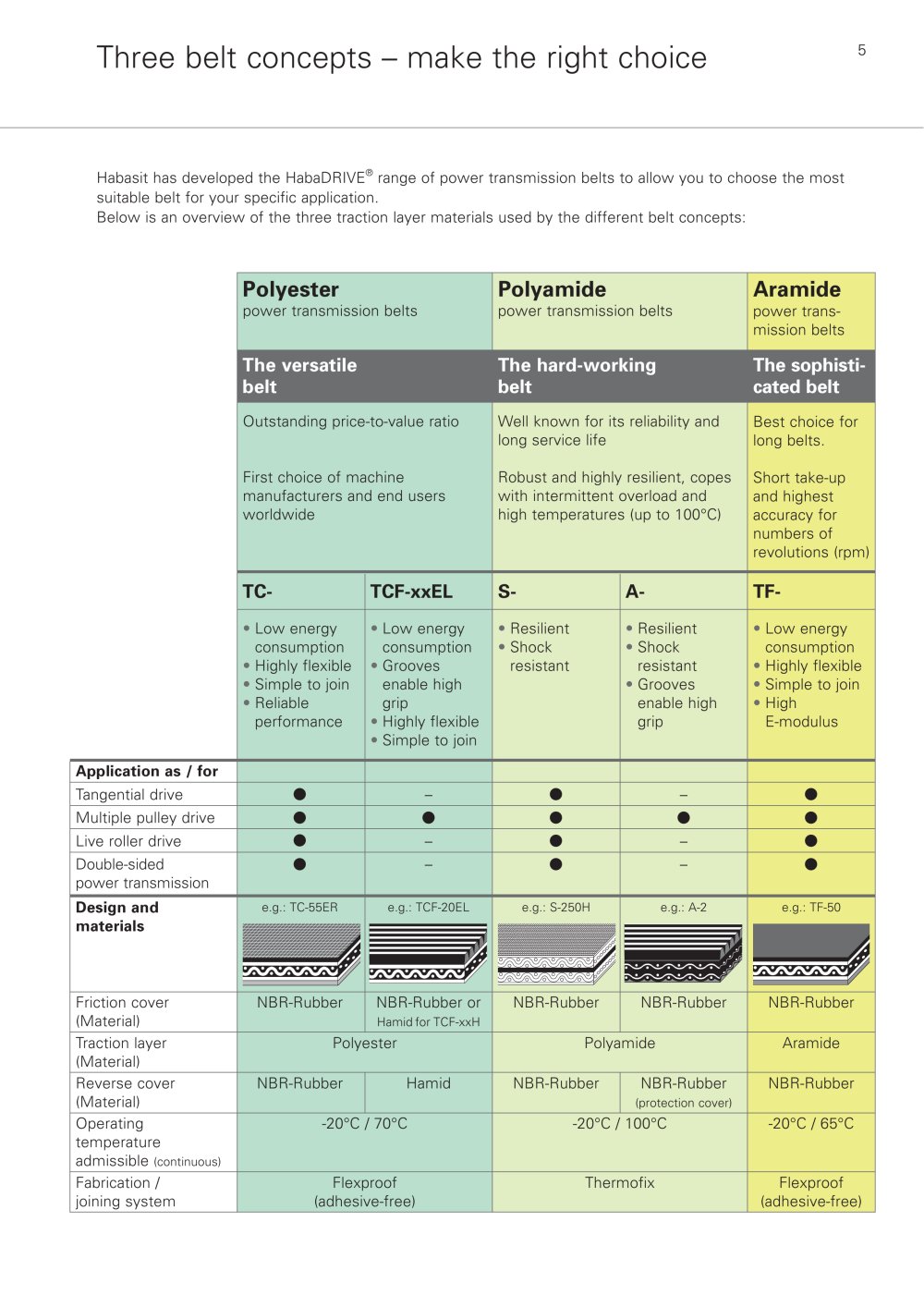

| | | Polyester power transmission belts | Polyamide power transmission belts | Aramide power transmission belts | |
| | The versatile belt | The hard-working belt | The sophisticated belt | |
| | Outstanding price-to-value ratio First choice of machine manufacturers and end users worldwide | Well known for its reliability and long service life Robust and highly resilient, copes with intermittent overload and high temperatures (up to 100°C) | Best choice for long belts. Short take-up and highest accuracy for numbers of revolutions (rpm) | |
| | TC- | TCF-xxEL | S- | A- | TF- | |
| | • Low energy consumption • Highly flexible • Simple to join • Reliable performance | • Low energy consumption • Grooves enable high grip • Highly flexible • Simple to join | • Resilient • Shock resistant | • Resilient • Shock resistant • Grooves enable high grip | • Low energy consumption • Highly flexible • Simple to join • High E-modulus | |
| | Application as / for | | | | | | |
| | Tangential drive | | - | | - | | |
| | Multiple pulley drive | | | | | | |
| | Live roller drive | | - | | - | | |
| | Double-sided power transmiss | ion | | - | | | - | | | |
| | Design and materials | | e.g.: TC-55ER | e.g.: TCF- | 20EL | e.g.: S-250H | e.g.: A | -2 | e.g.: TF-50 | |
| | | | | | | |
| | Friction cover (Material) | NBR-Rubber | NBR-Rubber or HamidforTCF-xxH | NBR-Rubber | NBR-Rubber | NBR-Rubber | |
| | Traction layer (Material) | Polyester | Polyamide | Aramide | |
| | Reverse cover (Material) | NBR-Rubber | Hamid | NBR-Rubber | NBR-Rubber (protection cover) | NBR-Rubber | |
| | Operating temperature admissible (continuous) | -20°C / 70°C | -20°C / 100°C | -20°C / 65°C | |
| | Fabrication / joining system | Flexproof (adhesive-free) | Thermofix | Flexproof (adhesive-free) | |
| | | | | | | | | | | |
