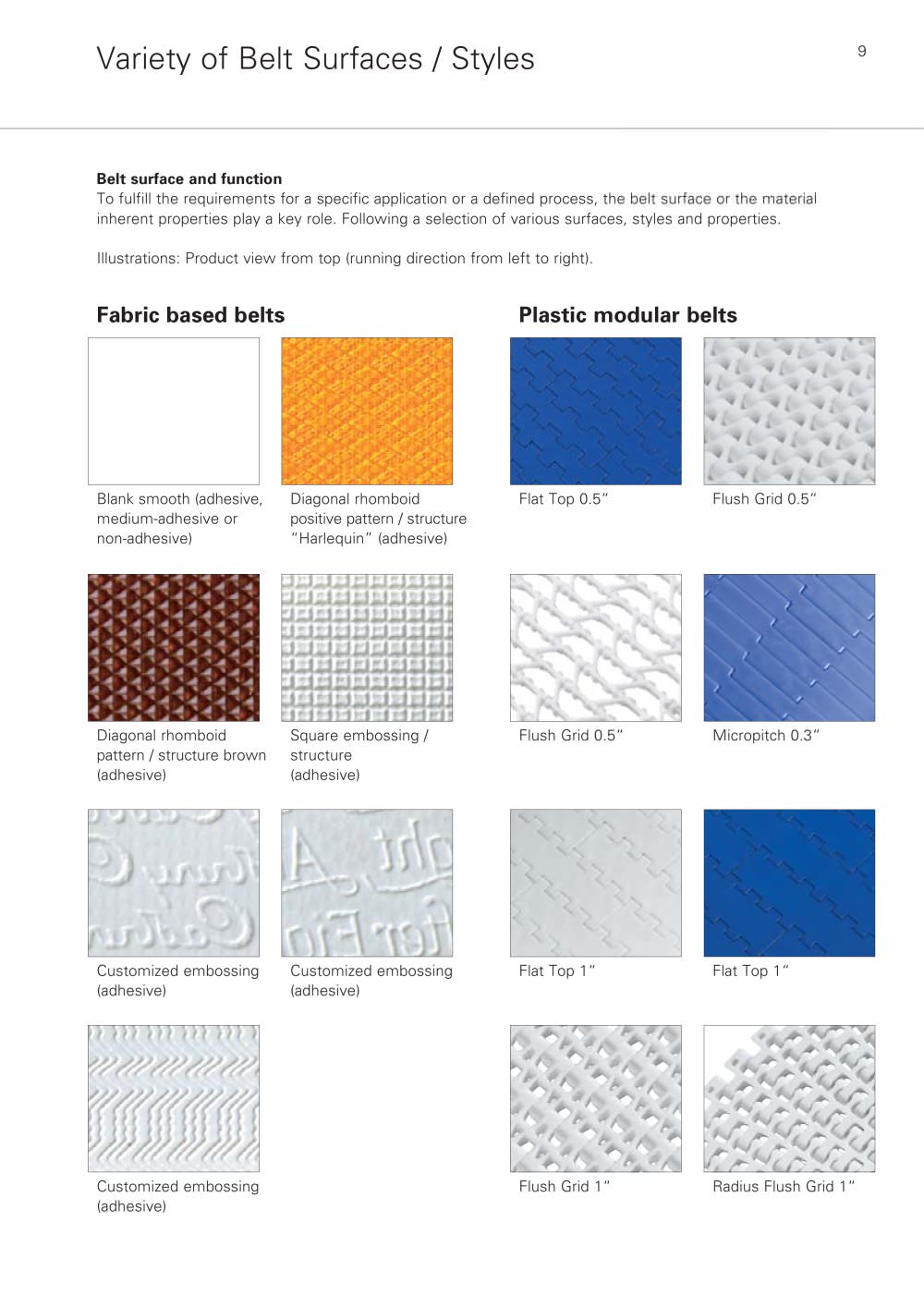

Variety of Belt Surfaces / Styles

9 Belt surface and function To fulfill the requirements for a specific application or a defined process, the belt surface or the material inherent properties play a key role. Following a selection of various surfaces, styles and properties.Illustrations: Product view from top (running direction from left to right).

Fabric based belts Plastic modular belts

Blank smooth (adhesive, medium-adhesive or non-adhesive) Flat Top 0.5“ Flush Grid 0.5“ Diagonal rhomboid pattern / structure brown (adhesive) Square embossing / structure (adhesive) Diagonal rhomboid positive pattern / structure “Harlequin” (adhesive) Flush Grid 0.5“Micropitch 0.3“ Customized embossing(adhesive) Customized embossing(adhesive) Flat Top 1“ Flat Top 1“ Customized embossing(adhesive) Flush Grid 1“ Radius Flush Grid 1“
