C LATERAL GUIDES FOR THE PRESS BED

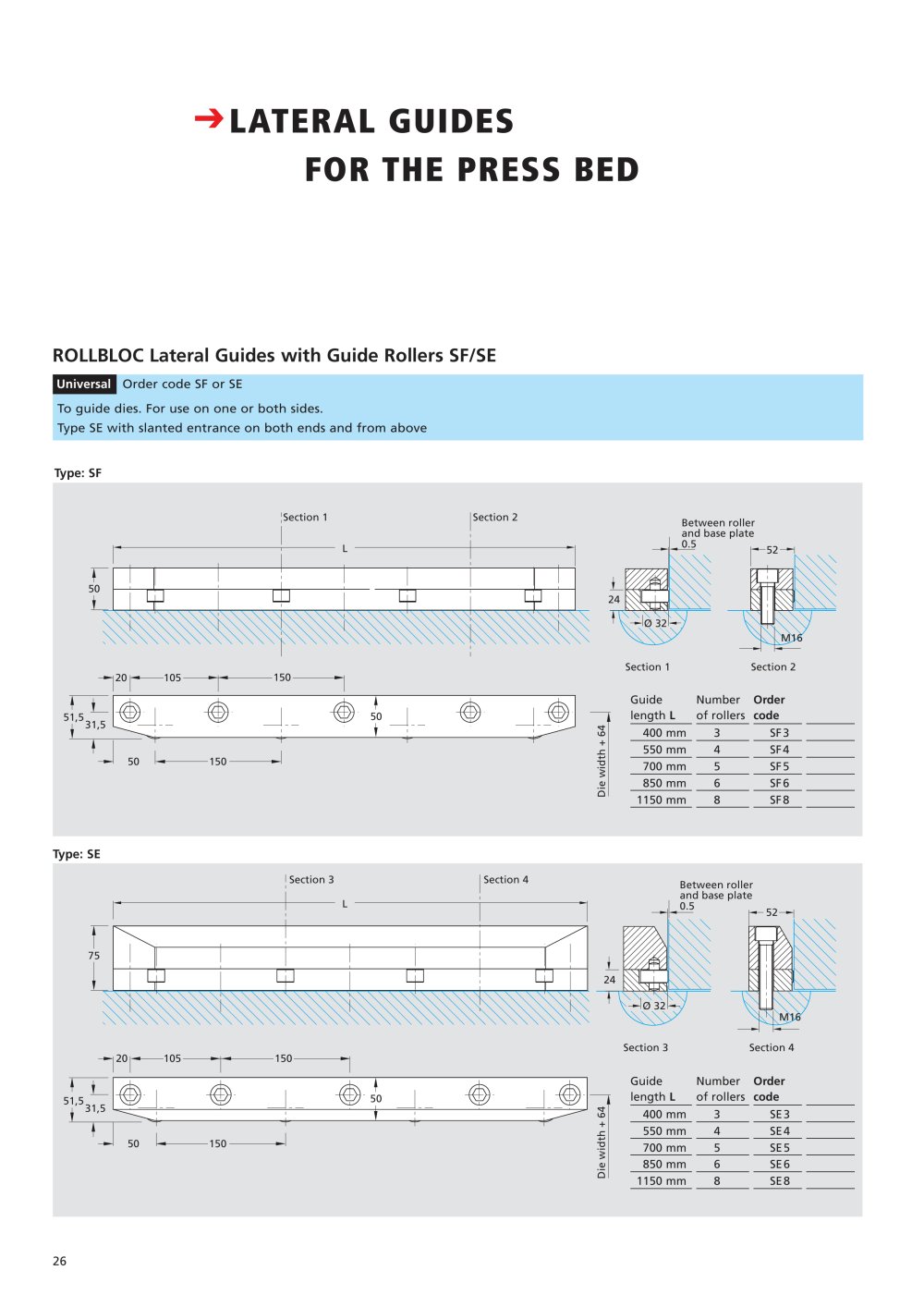

ROLLBLOC Lateral Guides with Guide Rollers SF/SE

Universal Order code SF or SE To guide dies. For use on one or both sides.Type SE with slanted entrance on both ends and from above

Section 1Section 2 Section 1Section 2 52 Between rollerand base plate 0.5 L 24 Ø 32 M16 1051502050 Guidelength Ordercode PreisDM L
31,55015051,5 50 400 mm 3 SF3 440.– 550 mm 4 SF4 145.– 700 mm 5 SF5 195.– 850 mm 6 SF6
Die width + 64 1150 mmNumberof rollers 8 SF8 .–

Type: SE Type: SF

Section 3Section 4 Section 3Section 4 Between rollerand base plate 0.552 L 75 50 Ø 3224 M16 Guide length L Ordercode PreisDM
31,551,55015010515020 400 mm 3 SE3 440.– 550 mm 4 SE4 145.– 700 mm 5 SE5 195.– 850 mm 6 SE6
Die width + 64 1150 mmNumberof rollers 8 SE8 .–
