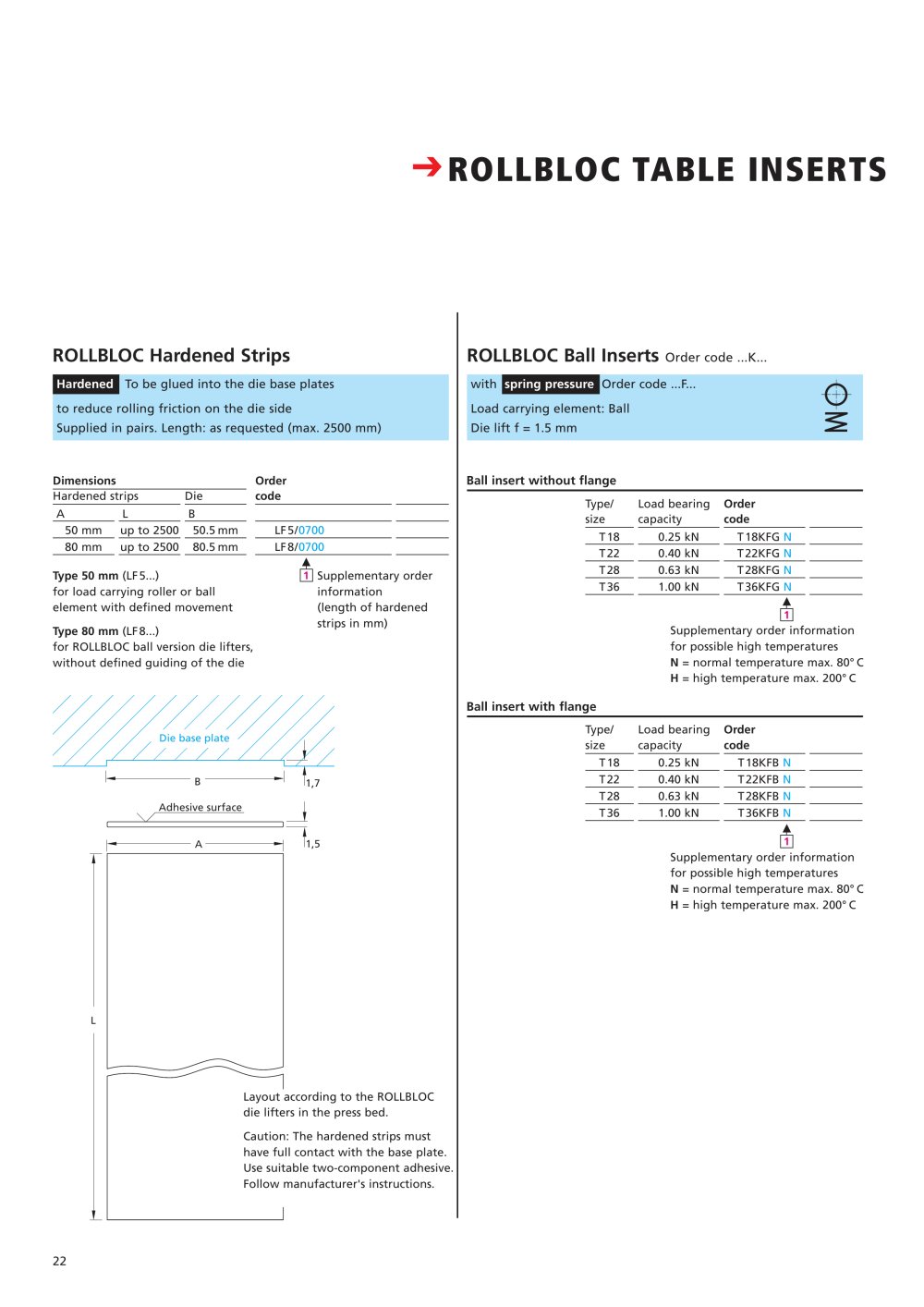

C ROLLBLOC TABLE INSERTS

ROLLBLOC Hardened Strips ROLLBLOC Ball Inserts

Order code ...K...

Hardened To be glued into the die base plates with spring pressure Order code ...F...

to reduce rolling friction on the die sideSupplied in pairs. Length: as requested (max. 2500 mm)

Load carrying element: Ball Die lift f = 1.5 mm

Dimensions Ordercode

Ball insert without flange

Ordercode A L B 121.– 50 mm up to 2500 50.5mm LF5/0700 121.– T18 0.25 kN T18KFG N 121.– 80 mm up to 2500 80.5mmHardened strips LF8/0700 121.–Die T22 0.40 kN T22KFG N 121.– Type 50 mm (LF5...) for load carrying roller or ball element with defined movement
1 Supplementary order information (length of hardenedstrips in mm) T28 0.63 kN T28KFG N 121.– T36Load bearingcapacity 1.00 kNPreis/DM T36KFG NPreis/DM 121.–Type/size
1 Type 80 mm (LF8...) for ROLLBLOC ball version die lifters,without defined guiding of the die Supplementary order informationfor possible high temperatures N = normal temperature max. 80°C H = high temperature max. 200°C

Ball insert with flange

Die base plate Ordercode T18 0.25 kN T18KFB N 121.–
B1,51,7 T22 0.40 kN T22KFB N 121.– T28 0.63 kN T28KFB N 121.–
Adhesive surface T36Load bearingcapacity 1.00 kN T36KFB NPreis/DM 121.–Type/size
A L 1 Supplementary order informationfor possible high temperatures N = normal temperature max. 80°C H = high temperature max. 200°C Layout according to the ROLLBLOC die lifters in the press bed. Caution: The hardened strips musthave full contact with the base plate.Use suitable two-component adhesive.Follow manufacturer's instructions.

22
