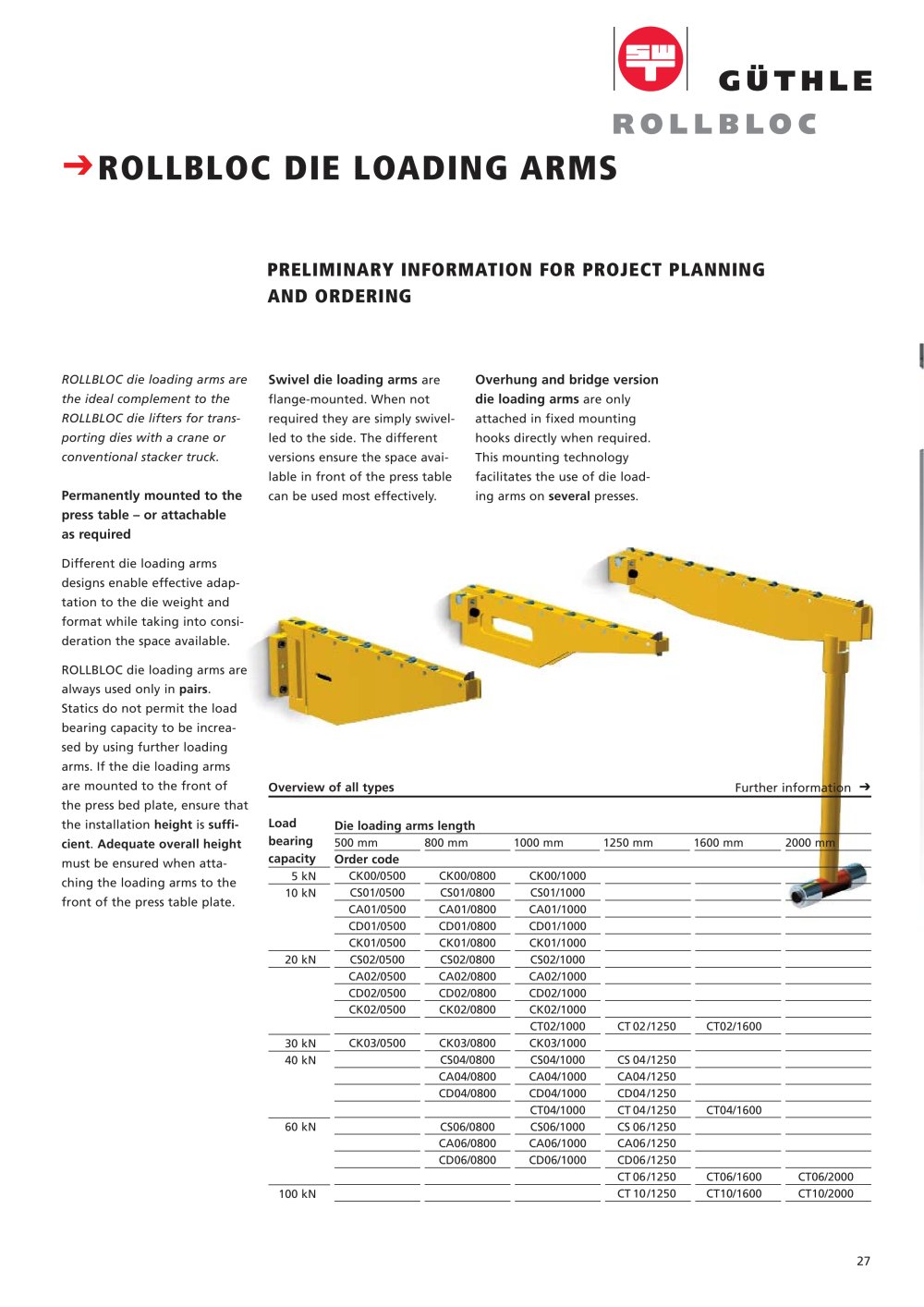

C ROLLBLOC DIE LOADING ARMS

PRELIMINARY INFORMATION FOR PROJECT PLANNING AND ORDERING

ROLLBLOC die loading arms arethe ideal complement to theROLLBLOC die lifters for trans-porting dies with a crane or conventional stacker truck.

Swivel die loading arms

areflange-mounted. When notrequired they are simply swivel-led to the side. The different versions ensure the space avai-lable in front of the press tablecan be used most effectively.

Overhung and bridge versiondie loading arms

are only attached in fixed mounting hooks directly when required. This mounting technology facilitates the use of die load-ing arms on several presses.

Permanently mounted to thepress table – or attachable as required

Different die loading armsdesigns enable effective adap-tation to the die weight and format while taking into consi- deration the space available.ROLLBLOC die loading arms arealways used only in pairs .Statics do not permit the load bearing capacity to be increa-sed by using further loadingarms. If the die loading arms are mounted to the front ofthe press bed plate, ensure thatthe installation height is suffi-cient . Adequate overall height must be ensured when atta-ching the loading arms to the front of the press table plate.

Overview of all types Further information C Load bearing capacity Die loading arms length

500 mm800 mm1000 mm1250 mm1600 mm2000 mm

Order code

5 kN10 kN CK00/0500 CK00/0800 CK00/1000 CS01/0500 CS01/0800 CS01/1000 CA01/0500 CA01/0800 CA01/1000 CD01/0500 CD01/0800 CD01/1000 CK01/0500 CK01/0800 CK01/1000 20 kN CS02/0500 CS02/0800 CS02/1000 CA02/0500 CA02/0800 CA02/1000 CD02/0500 CD02/0800 CD02/1000 CK02/0500 CK02/0800 CK02/1000 CT02/1000 CT02/1250 CT02/1600 30 kN40 kN CK03/0500 CK03/0800 CK03/1000 CS04/0800 CS04/1000 CS04/1250 CA04/0800 CA04/1000 CA04/1250 CD04/0800 CD04/1000 CD04/1250 CT04/1000 CT04/1250 CT04/1600 60 kN CS06/0800 CS06/1000 CS06/1250 CA06/0800 CA06/1000 CA06/1250 CD06/0800 CD06/1000 CD06/1250 CT06/1250 CT06/1600 CT06/2000 100 kN CT10/1250 CT10/1600 CT10/2000
